Home >> BMW >> 2000 >> 323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management MS42 (DME Motor Electronics MS42) >> Lambda Control >> Oxygen Sensor, Bank 1, Before Cat. Converter

Oxygen Sensor, Bank 1, Before Cat. Converter

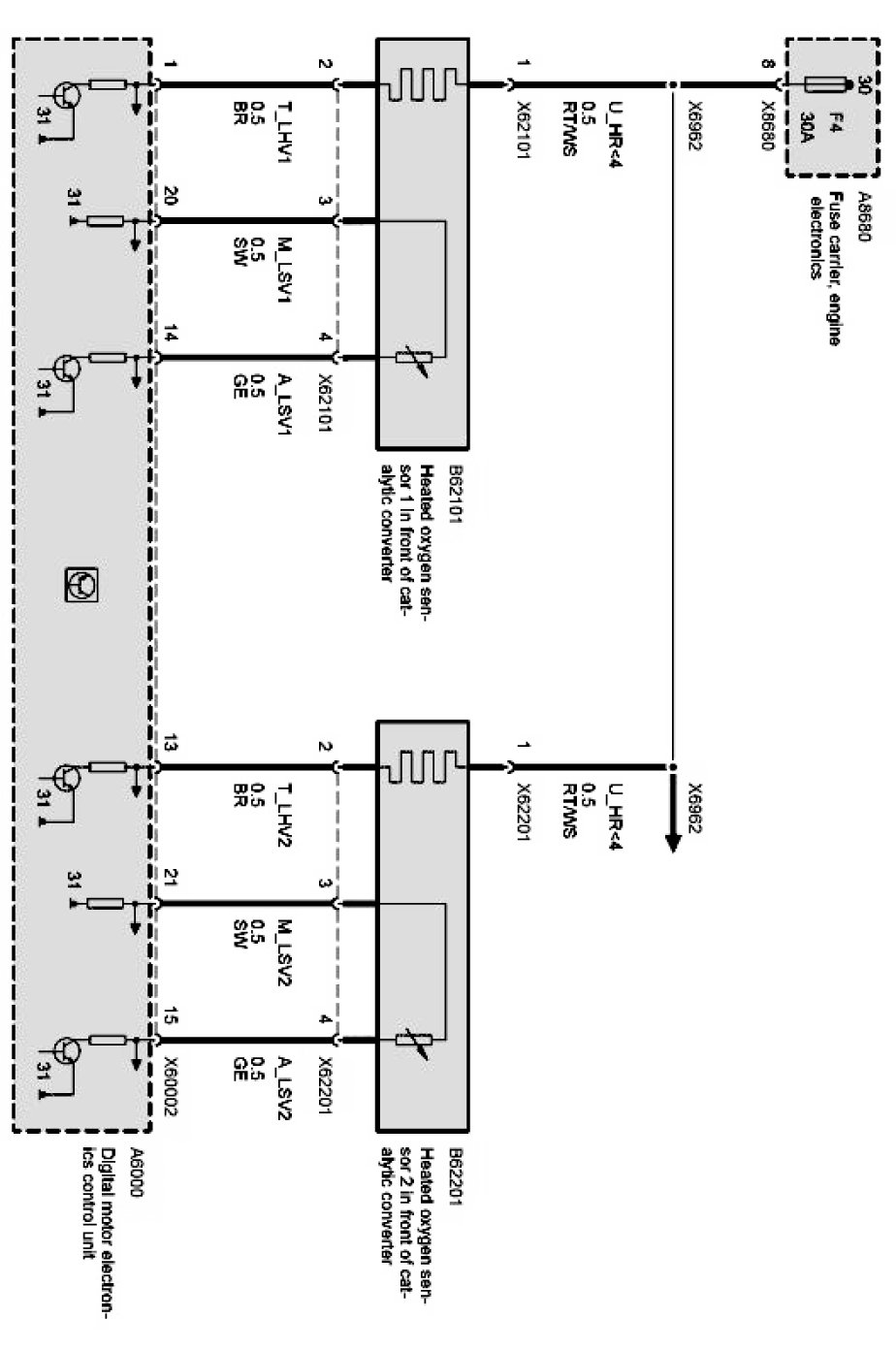

Oxygen sensors before catalytic converter:
