ASC MK20 (ASC MK20 Automatic Stability Control)
>>
Diagnosis Connection
>>
Assignments of Diagnostic Plug (DME Motor Electronics MS42 Up to 06/00)
Assignments of Diagnostic Plug (DME Motor Electronics MS42 Up to 06/00)

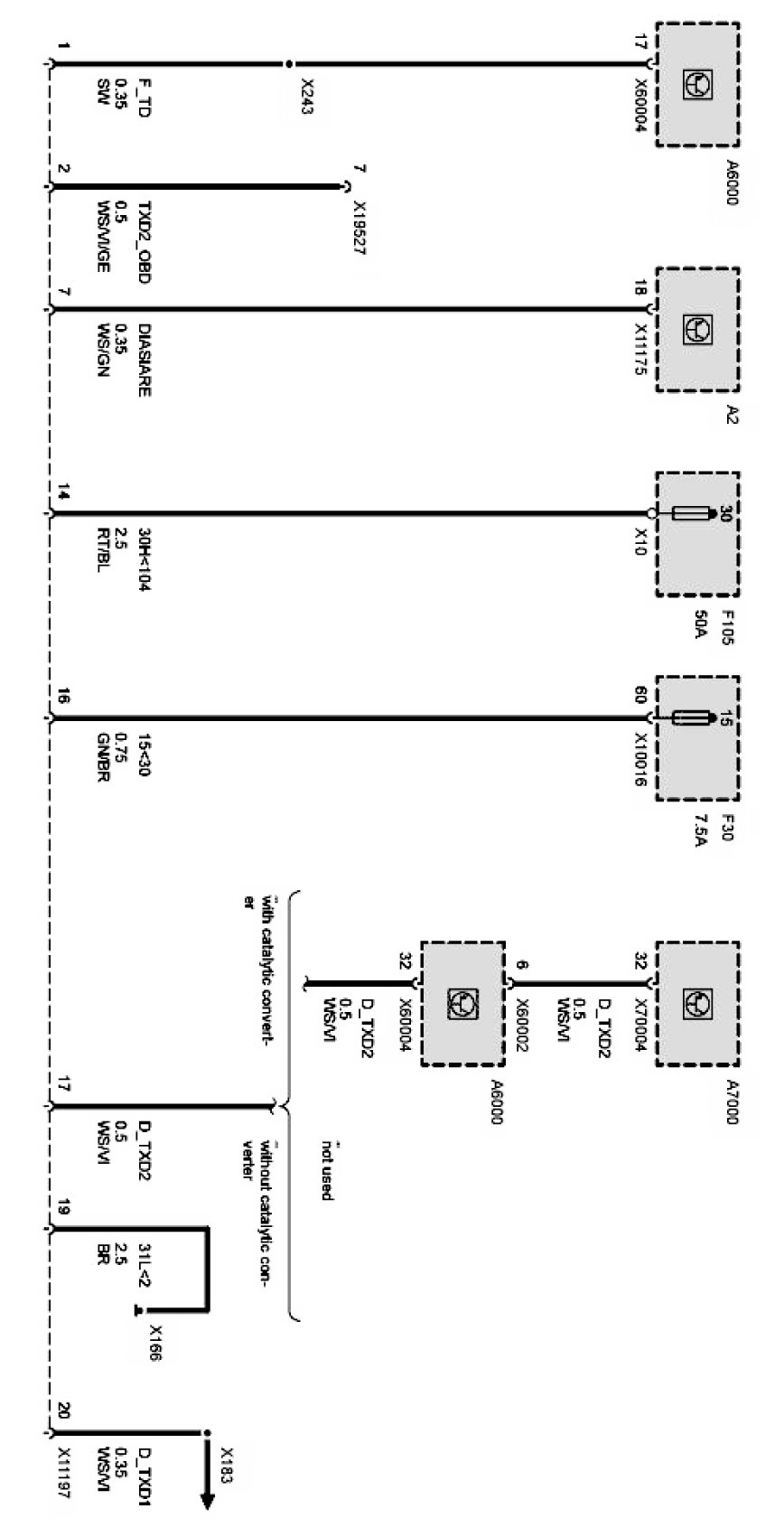

Assignments of diagnostic plug:
