Home >> BMW >> 2000 >> 323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and A/C Functions (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation or Heater Control) >> Rear Window Defogger >> Unloader Relay, Rear Window Defogger >> Unloader Relay, Rear Window Defogger (DME MS42 With Heater Control Up to 09/00 Without Convertible

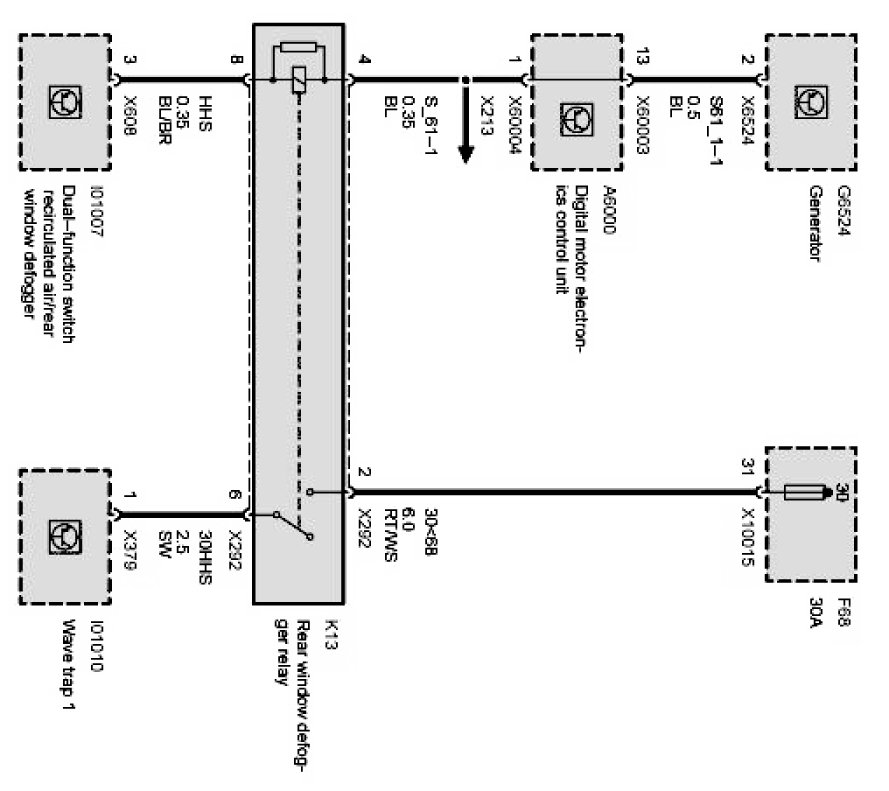

Unloader Relay, Rear Window Defogger (DME MS42 With Heater Control Up to 09/00 Without Convertible
