323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Heating and A/C Functions (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation or Heater Control)
>>

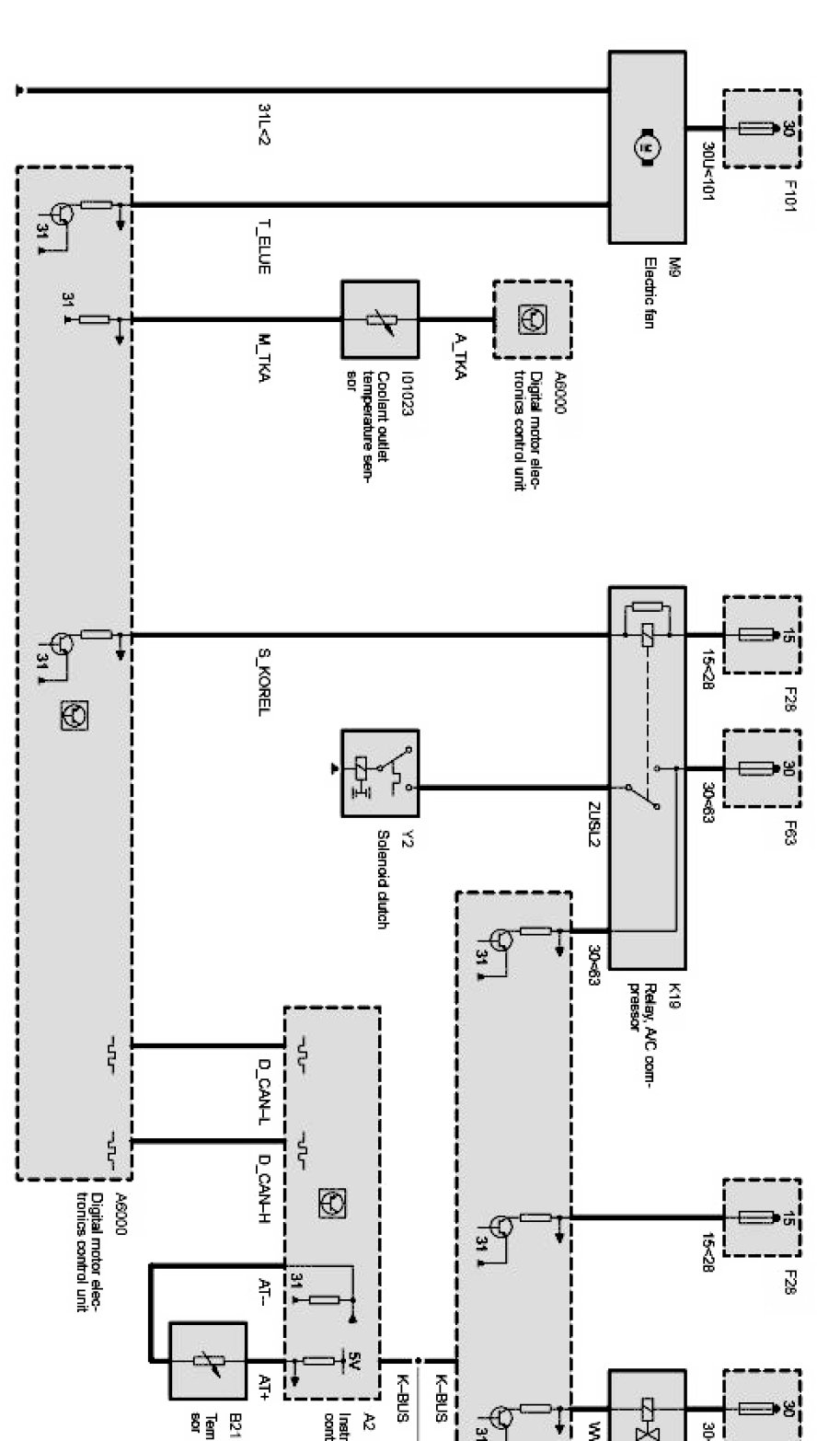

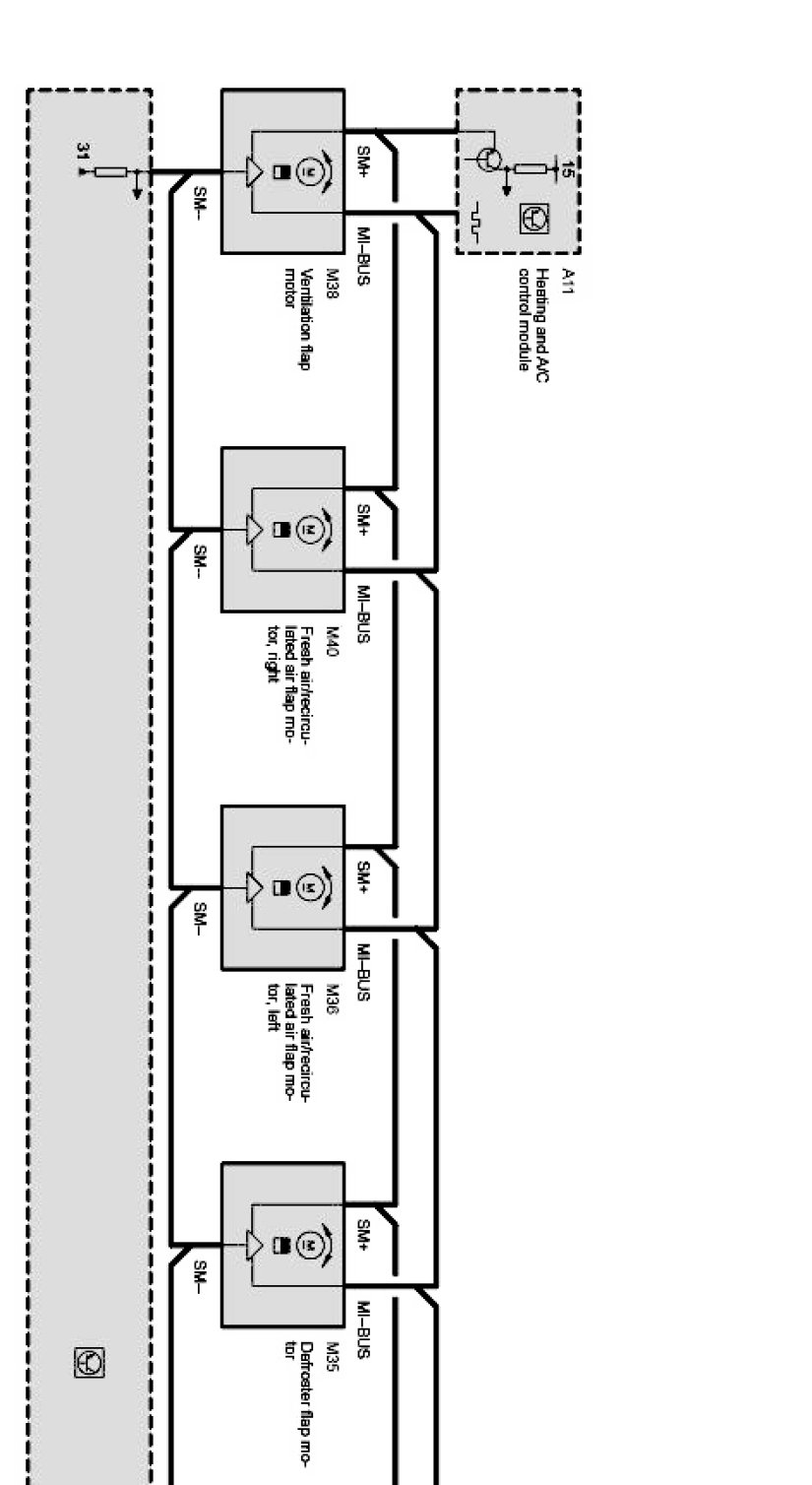

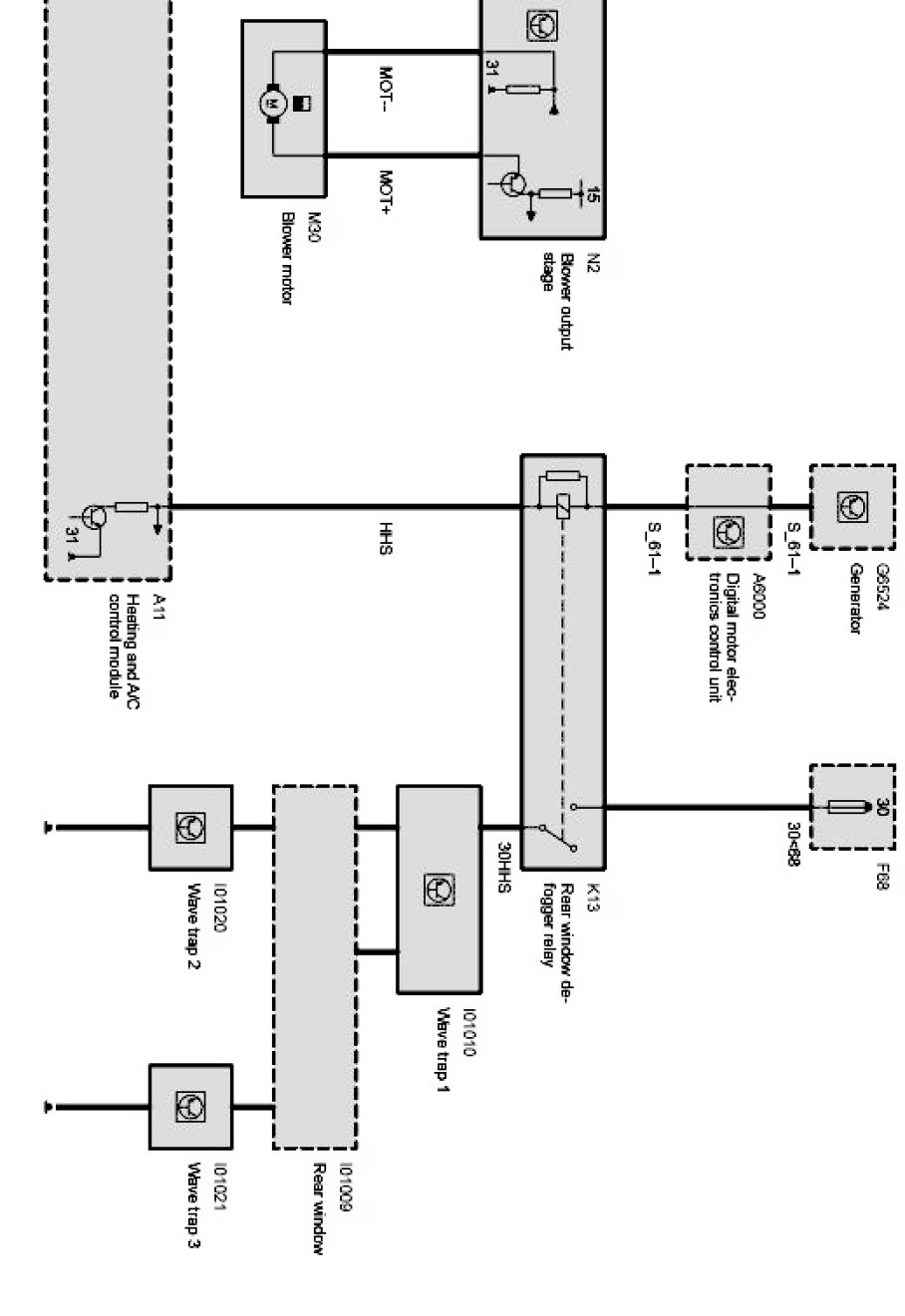

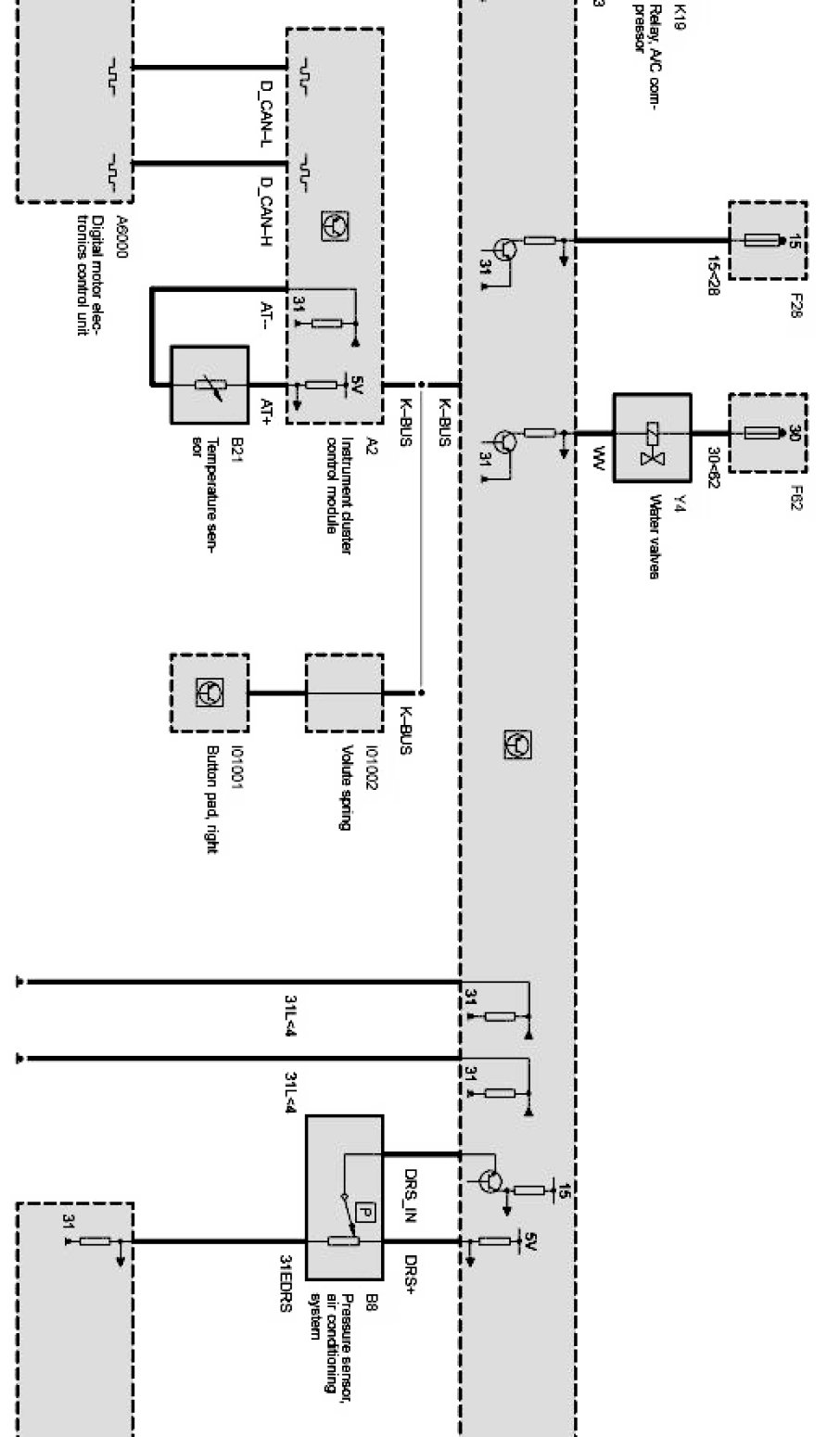

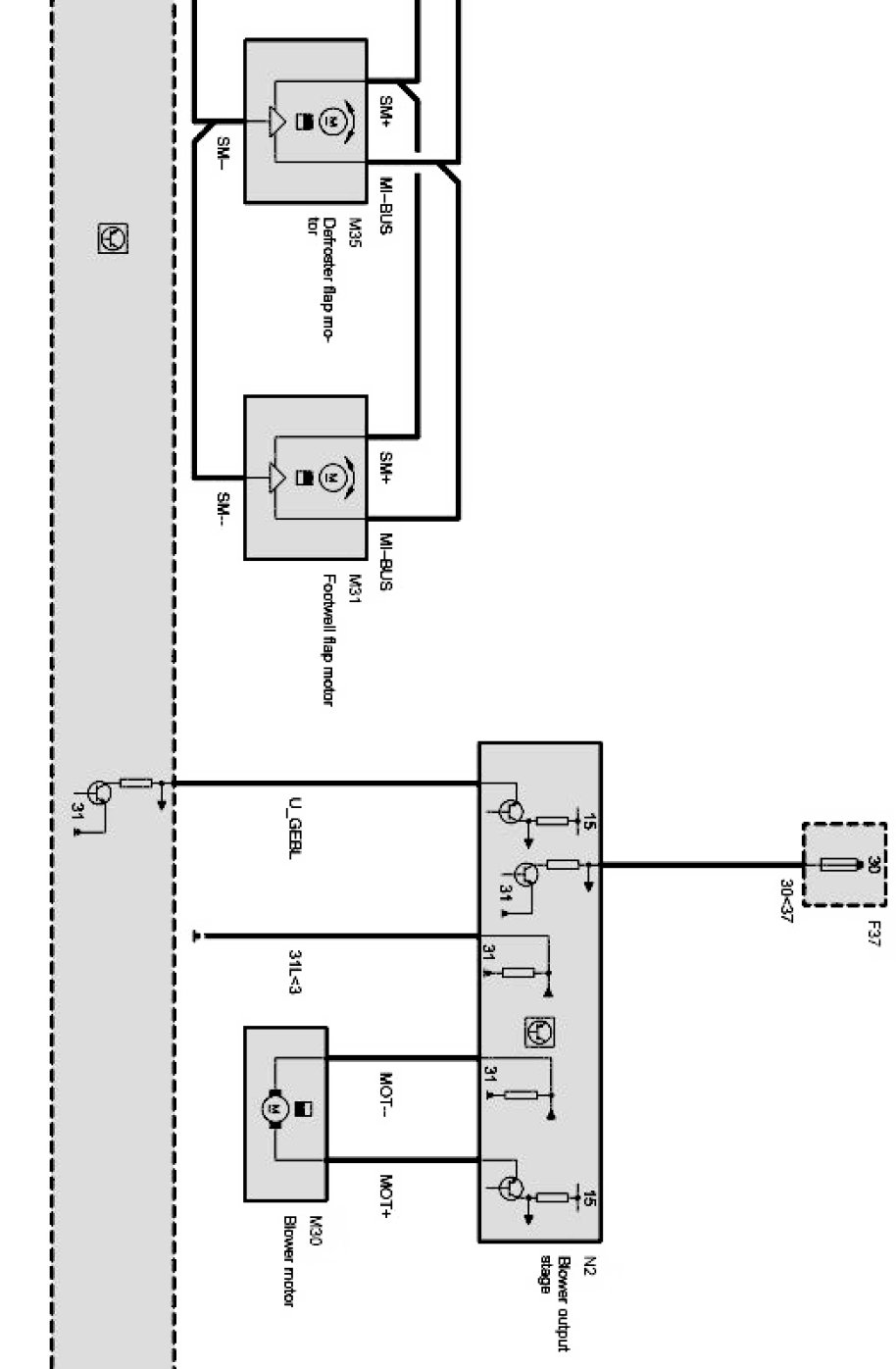

Heating and Air Conditioning Functions (As of 09/98 Up to 09/99 With IHKA Heating/Air Conditioning W/Petrol Engine)
Heating and Air Conditioning Functions (As of 09/98 Up to 09/99 With IHKA Heating/Air Conditioning W/Petrol Engine)
