323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Displays and Information
>>
Pointer Instruments (E.G. Speedometer, Fuel Gauge...)
>>
Dimmer, Instruments
>>

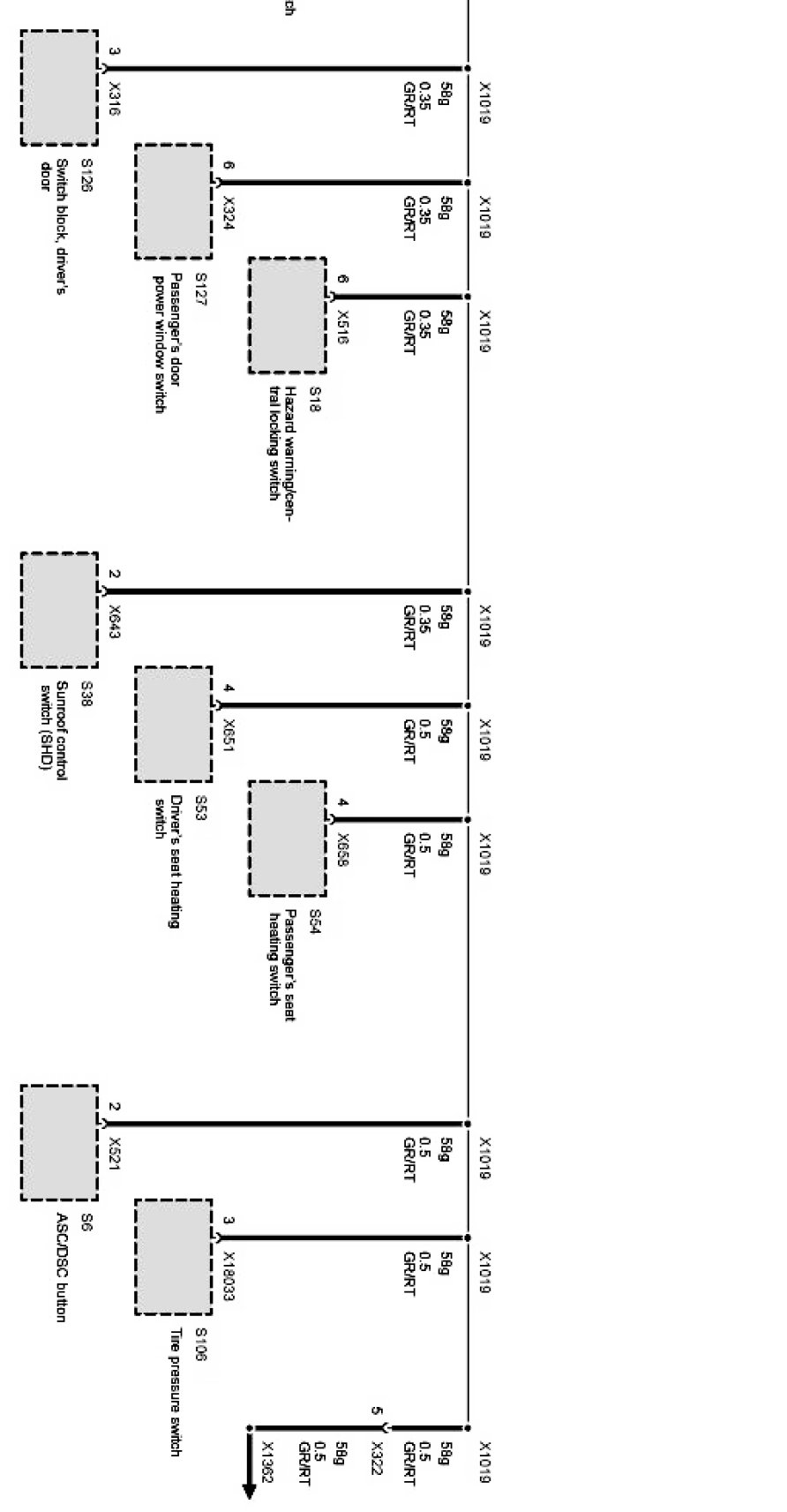

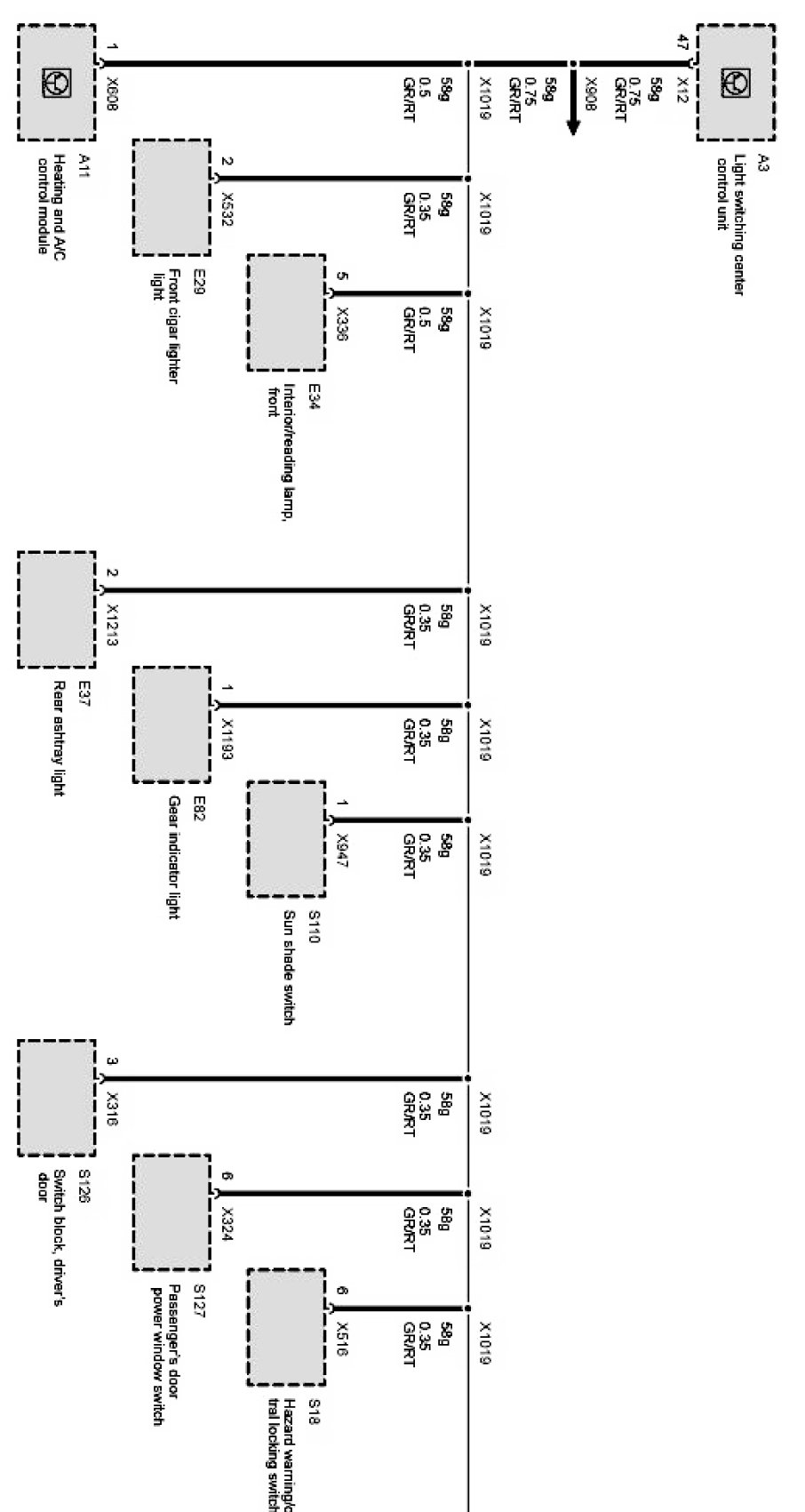

Connector, Instrument and Locator Lighting X1019 (As of 03/99 Up to 09/99)
Connector, Instrument and Locator Lighting X1019 (As of 03/99 Up to 09/99)
