Connector X183 (DME Motor Electronics MS42 W/ASC MK20 Auto Stability Control W/MRS Multiple Restraint System III/IV to 09/01)

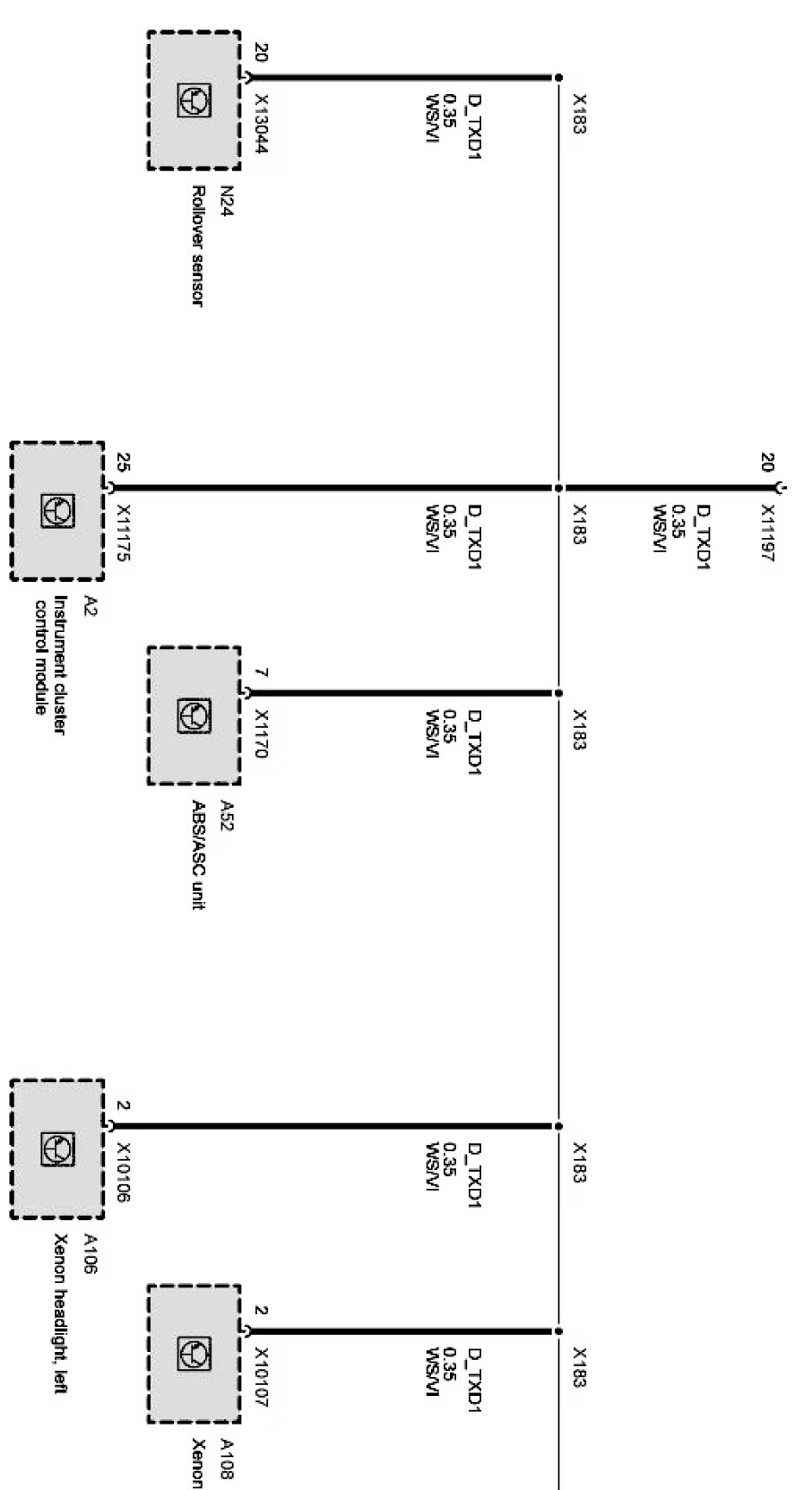

Connector X183 Part 1:

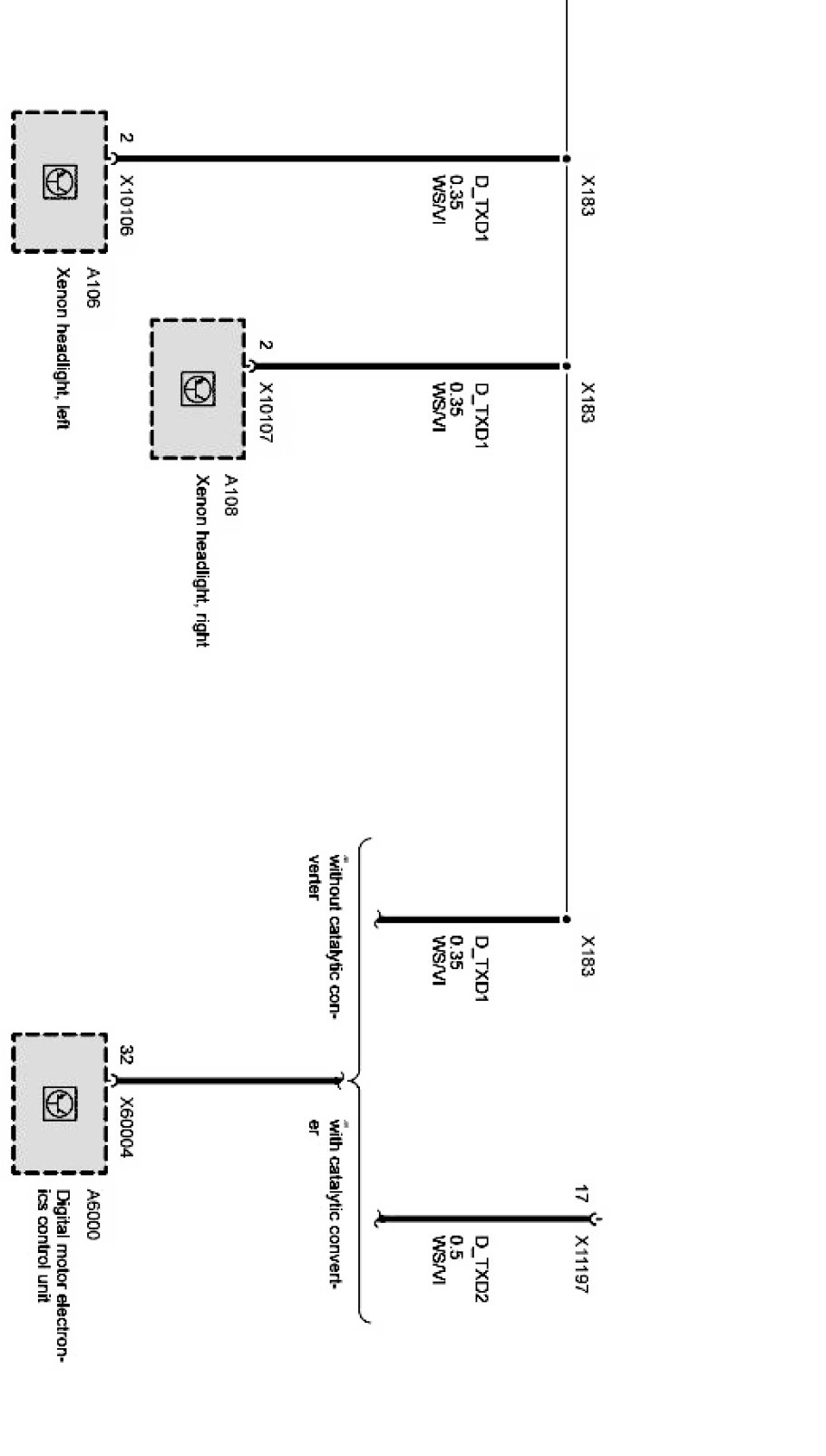

Connector X183 Part 2:
