Home >> BMW >> 2000 >> 323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Navigation (NAV Navigation Computer MKII or NAV Navigation Computer) >> Navigation (As of 09/98 W/ AT W/ ASC MK20 Auto Stability Control W/DME Motor Electronics MS42, NAV Navigation Computer MKII)

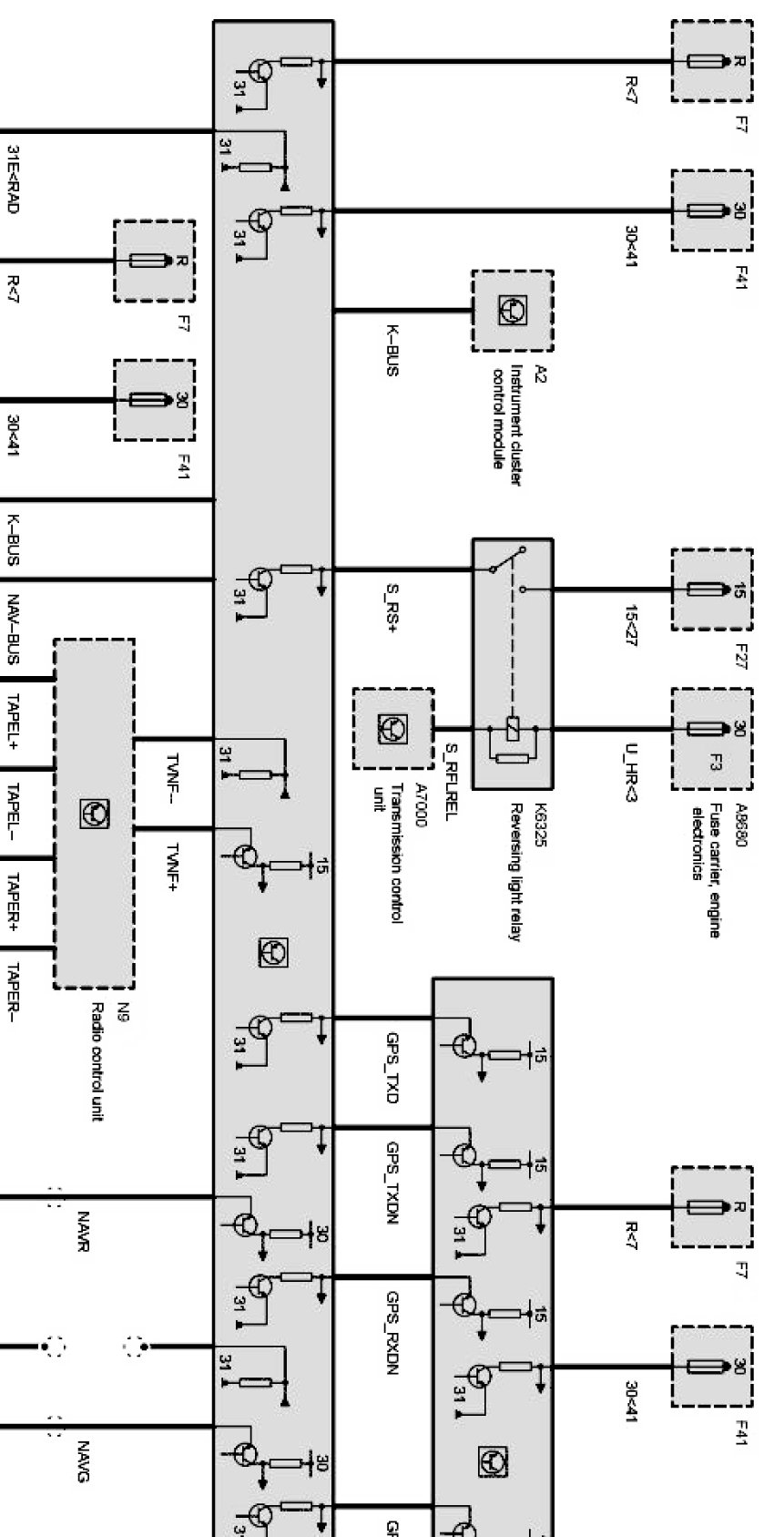

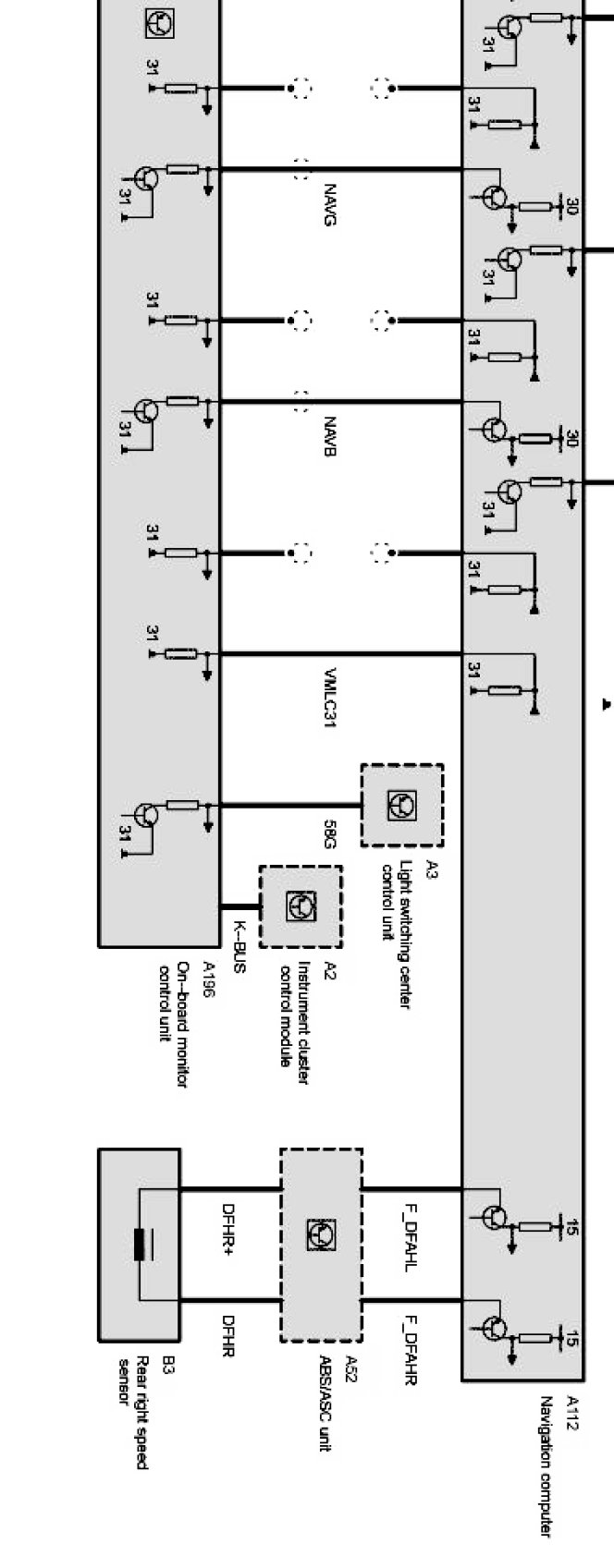

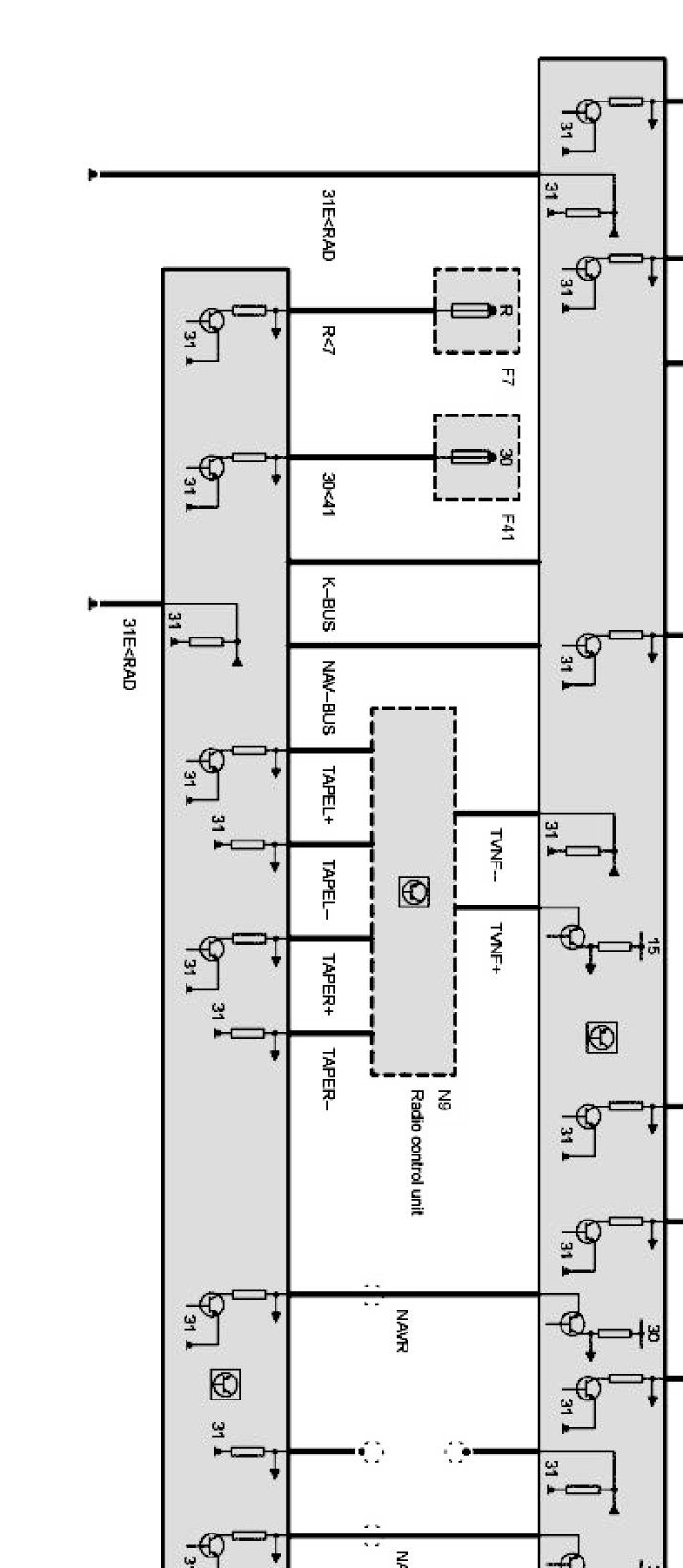

Navigation (As of 09/98 W/ AT W/ ASC MK20 Auto Stability Control W/DME Motor Electronics MS42, NAV Navigation Computer MKII)
