Home >> BMW >> 2000 >> 323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Navigation (NAV Navigation Computer MKII or NAV Navigation Computer) >> Navigation (As of 03/98 Up to 09/98 With Automatic Transmission With DME MS42 With ASC MK20)

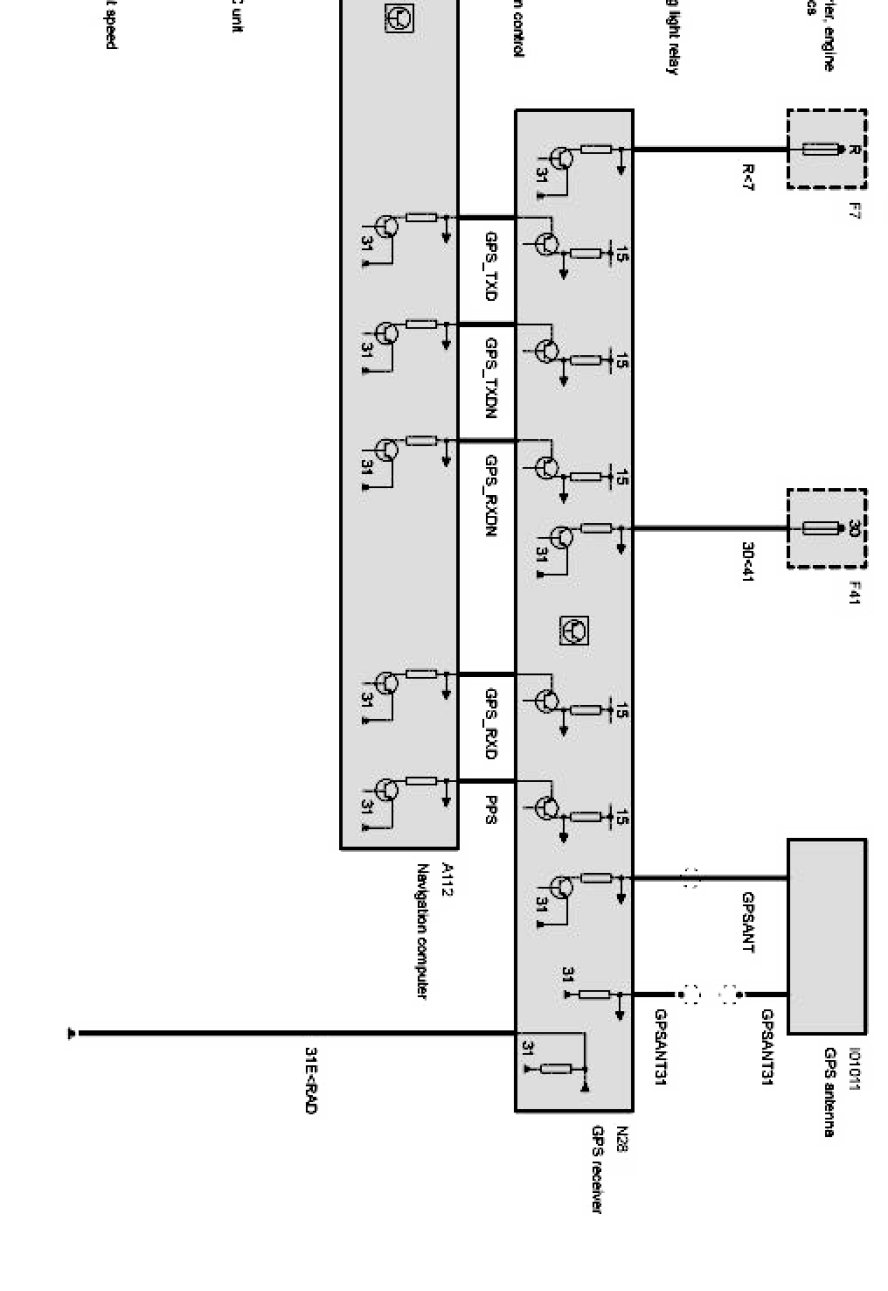

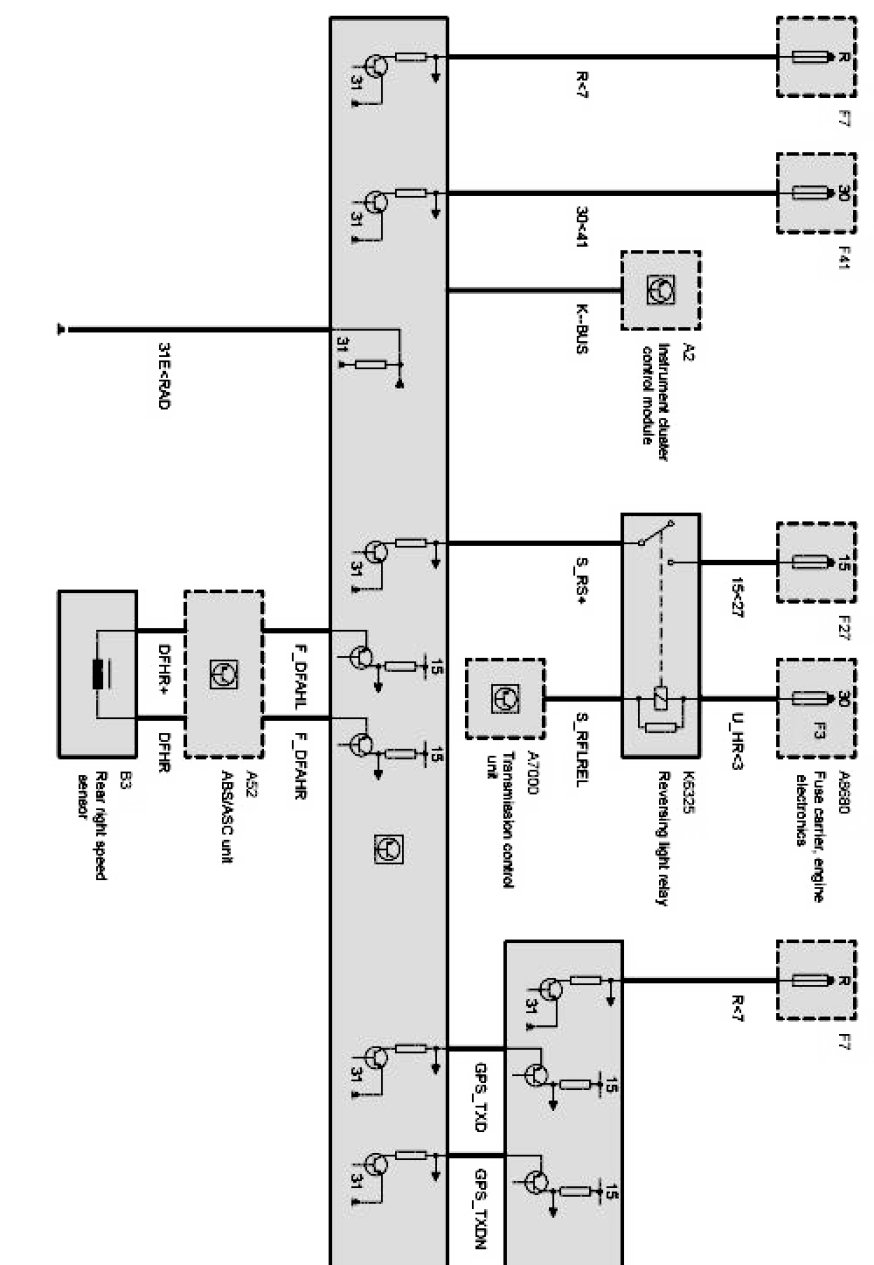

Navigation (As of 03/98 Up to 09/98 With Automatic Transmission With DME MS42 With ASC MK20)
