323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X11176 Adapter 614470, Storage Location C110
>>
A2 Instrument Cluster Control Unit (As of 09/98 With DME Motor Electronics MS42)
A2 Instrument Cluster Control Unit (As of 09/98 With DME Motor Electronics MS42)

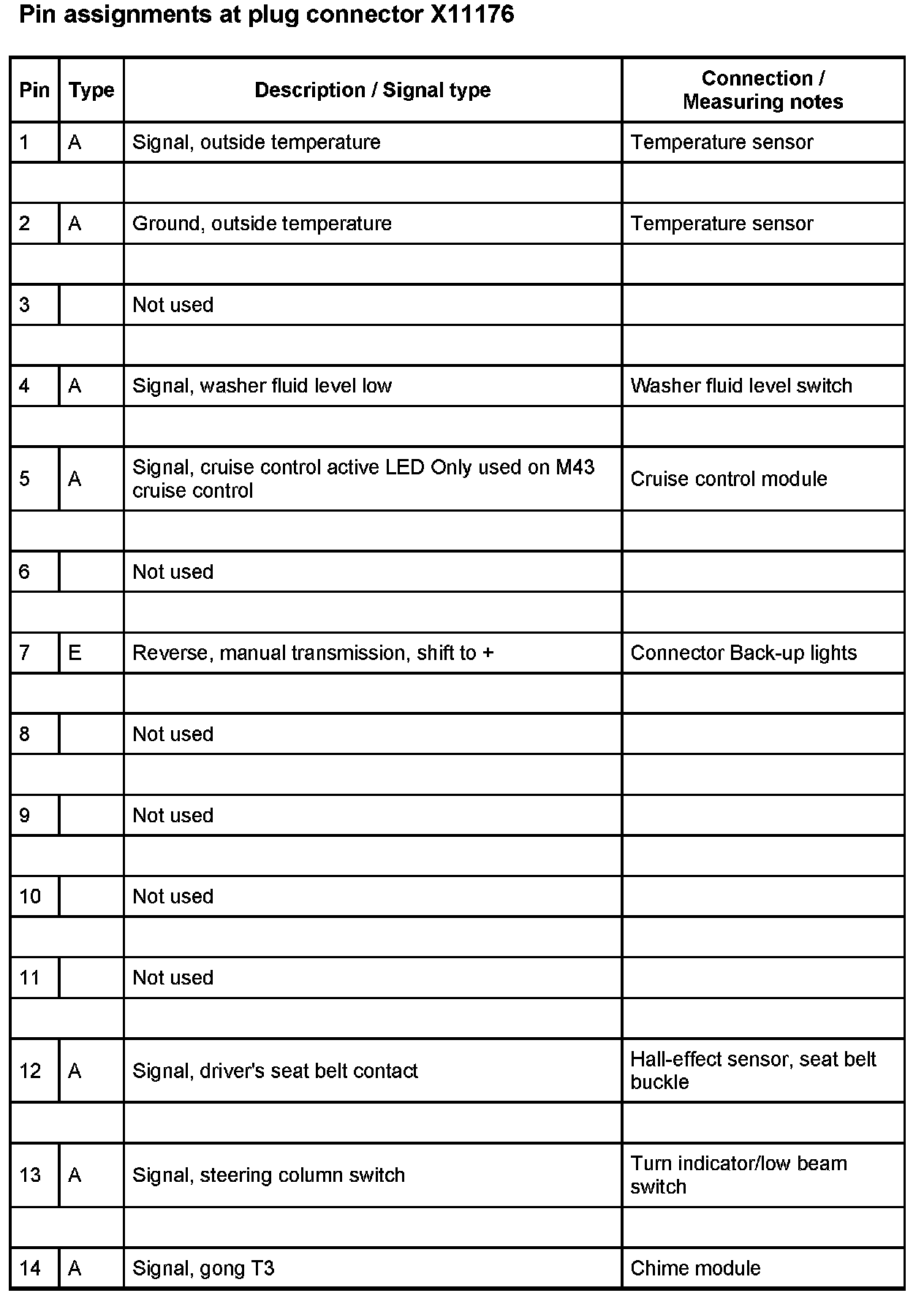

X11176 - Part 1:
X11176 - Part 2:
