323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X0
>>
X01006 (I01007 Dual-Function Switch Recirculated Air/Rear Window Defogger (03/98 Up to 09/99 With Heater Control))
X01006 (I01007 Dual-Function Switch Recirculated Air/Rear Window Defogger (03/98 Up to 09/99 With Heater Control))

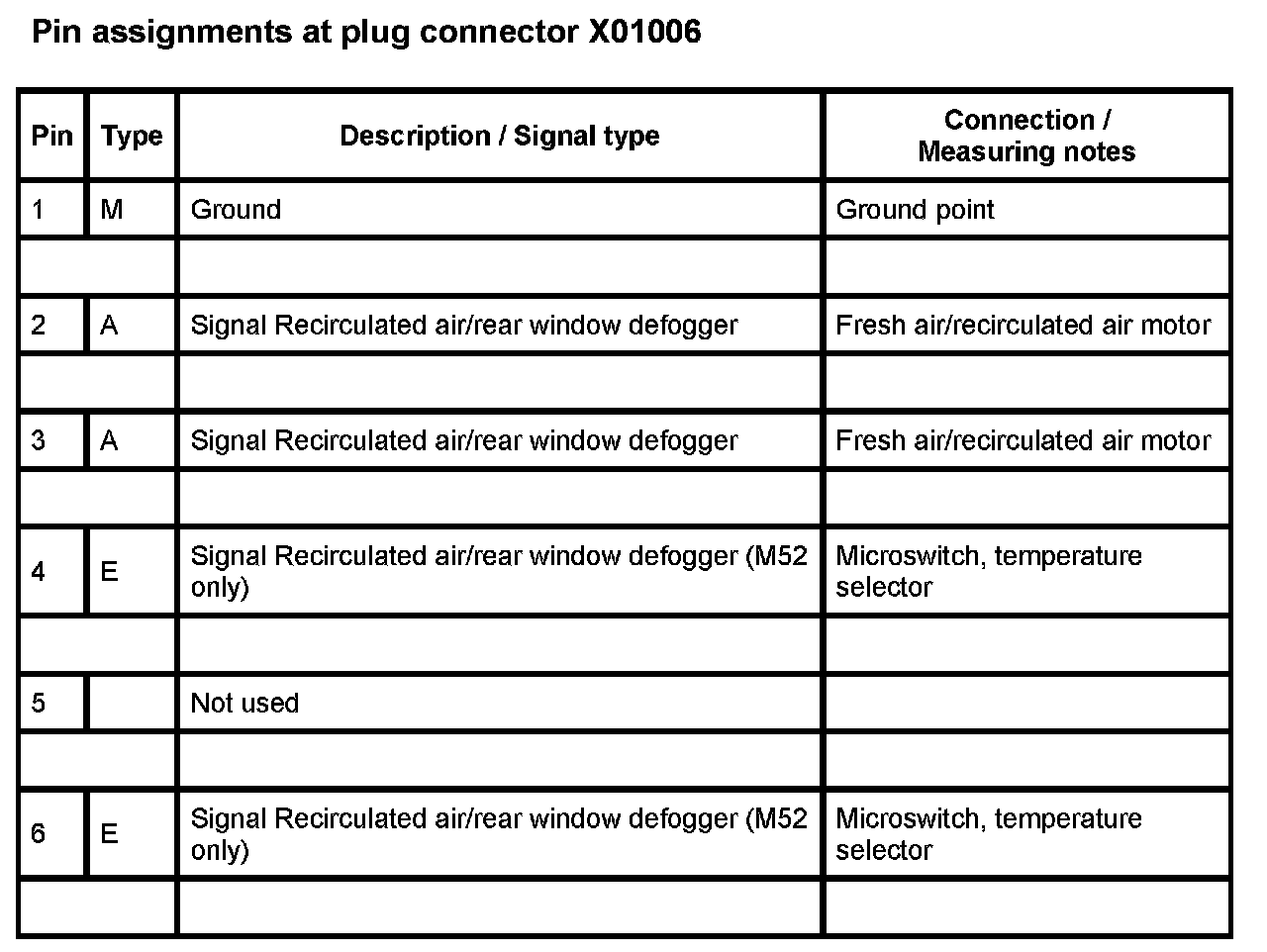

X01006:
