Replacing Lumbar Support - Front Seat/Sports Seat (Power)

Removing and installing/replacing lumbar support (cushion) on front seat/sports seat (power seat only in coupe)

Remove seat cushion,

Remove backrest shell,

Remove backrest cover,

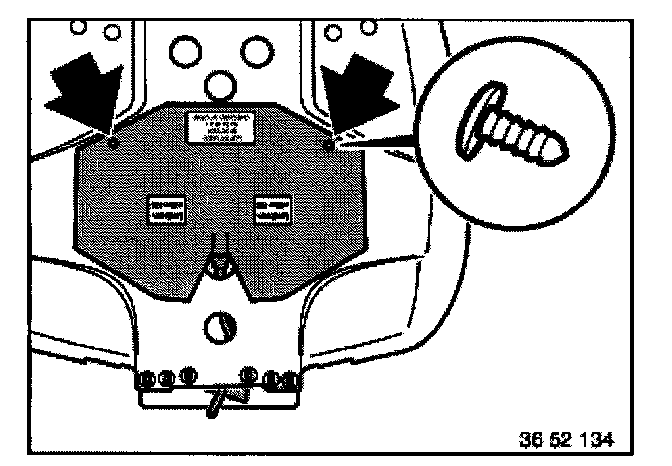

Lift out securing plugs and remove lumbar support.







Installation:
Connect special tools 61 2 071 and 61 2 072 (adapter leads) on white plug and 12 V power supply source.

Check function.
