Replacing Seal For Sun Roof Cover

NOTE:
Observe instructions on repairing cemented gaskets on slide/tilt sunroof.
Open sun roof completely.







Removing Old Two Piece Seals:

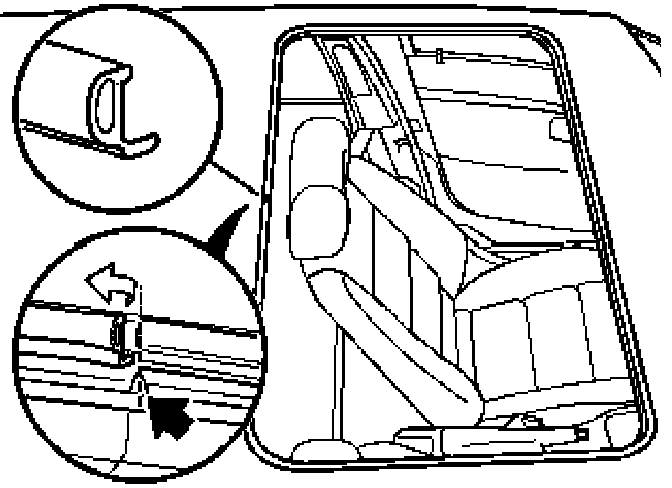

Pull out wedges on left and right sides.
These wedges are not required for reinstallation.

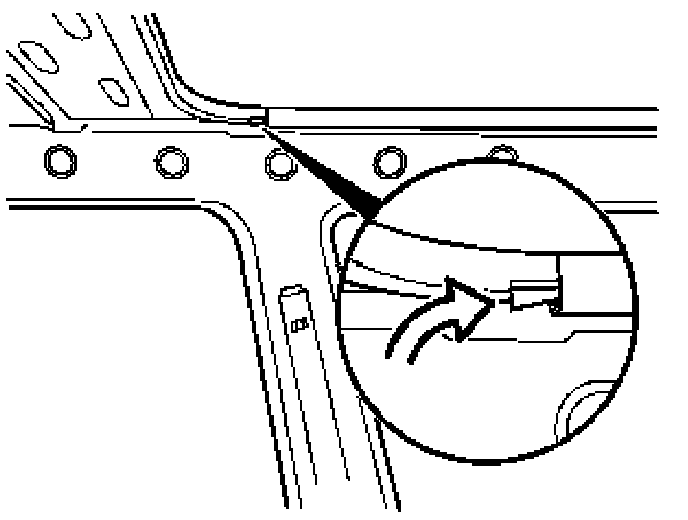

Pull off rear seal downwards beginning at point (1) to point (2).

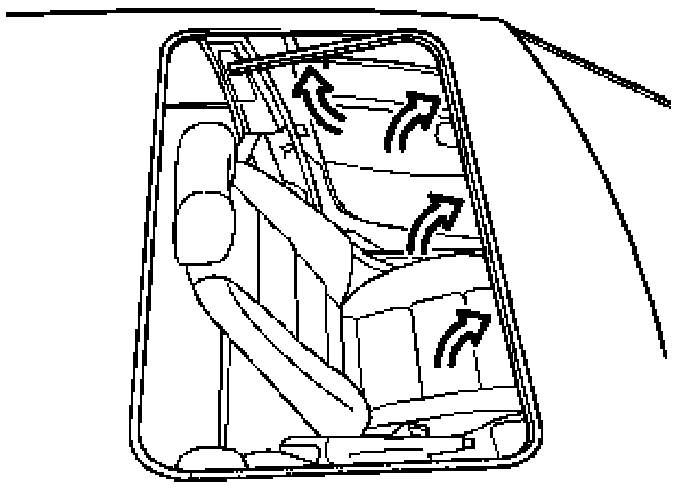

Pull off front seal in downward direction.







Removing One Piece Seal:
Begin removal at rear center.

Installation note:
Clean cement surface.
Begin installation at rear center.
