Replacing Windshield Wiper Motor

Replacing windshield wiper motor

Note: Prior to removal, allow wiper motor to run into rest position (if still possible).

Necessary preliminarytasts:

Disconnect battery negative lead
Remove complete bracket for windshield wiper system. Remove & Install Mounting Bracket For Wiper System With Motor






NOTE: Drive rods remain fitted: illustrated without drive rods for sake of clarity.

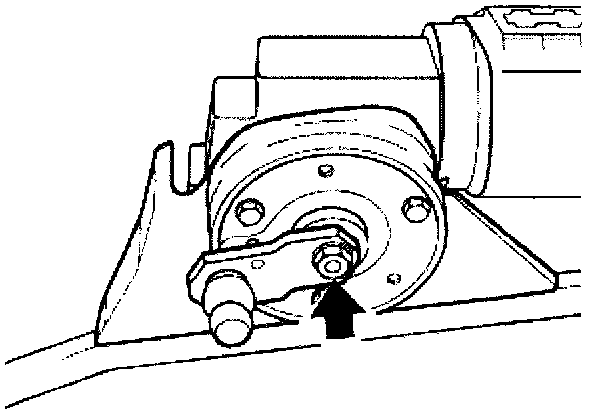

- Unfasten nut on motor crank and pry off crank from motor.

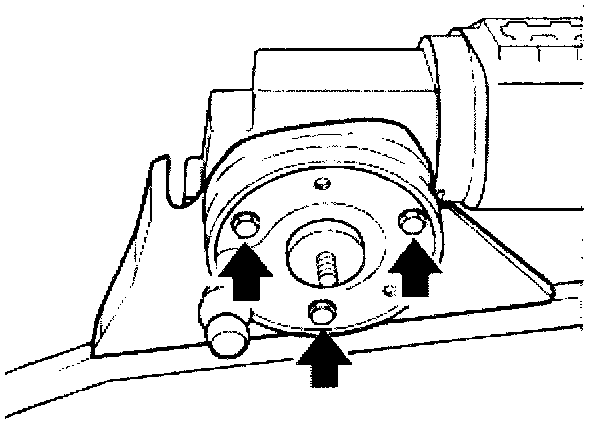

- Unfasten screws and remove wiper motor from console.
Tightening torque: 10 Nm

Installation:

- Replace screws.
- Screw new wiper motor onto wiper bracket, connect to vehicle wiring harness and run into rest position.






Installation:

- Position motor crank on shaft so that it forms one line with drive rod on passenger side.

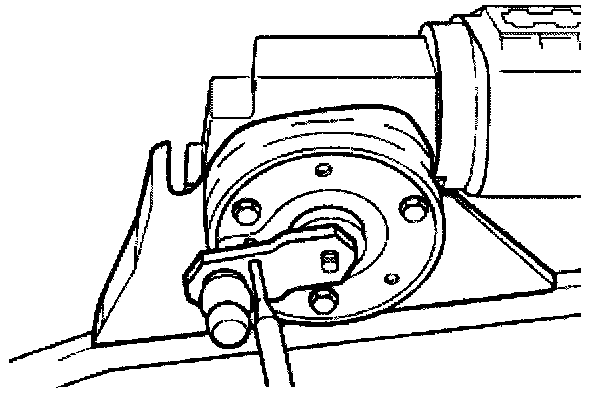

- Brace motor crank in locating bore of wiper console with drift and tighten down
Tightening torque: 27 Nm
