Front

- Unfasten internal trim from engine hood beside the spray nozzle (not on roadster).

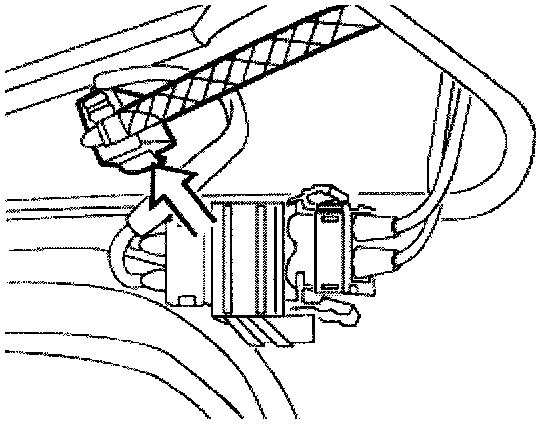

- Pull off hose. If necessary, with spray nozzle heated

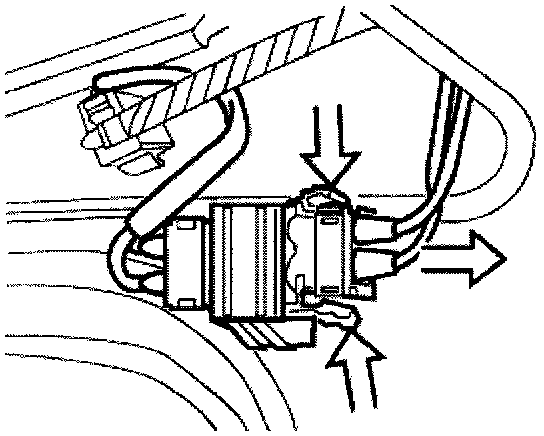

- Pull off connector. Note colors of cables and corresponding pin sockets.
- Remove lines from the connector.

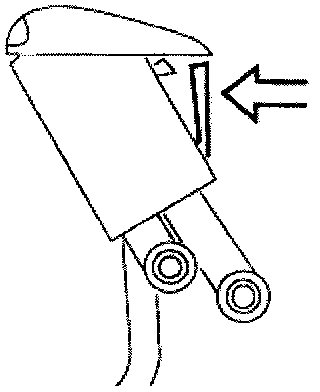

- Compress retainer.
- Remove spray nozzle. If necessary, with heated spray nozzle
- Work electric leads out of body opening separately.

Installation:
- Make sure that there are no bends in the hose after installation.
- Adjust spray nozzles.




Roadster

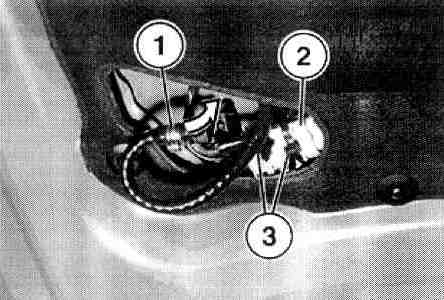

- Remove hose (1), press together retaining hooks and remove spray nozzle. If necessary, with heated spray nozzle
- Pull off connector. Note colors of cables and corresponding pin sockets.
- Pull lines out of connector and individually insert them in the body aperture.
