Rear

NOTE: the spray should strike the center of the panel.





A = approx. 10 cm






CAUTION: Do not insert any sharp objects in the nozzle (risk of damaging spray angle)

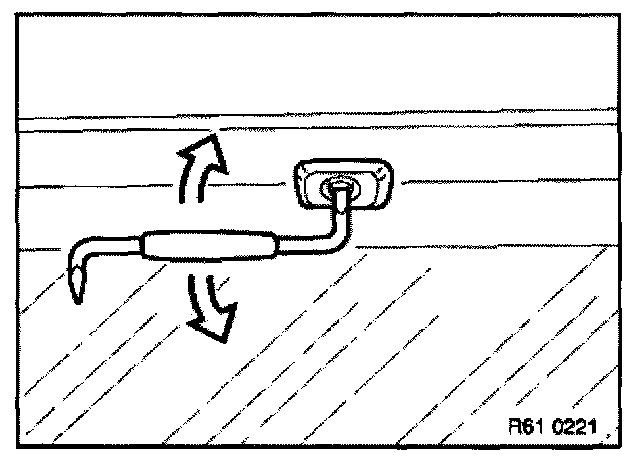

Mark contact point with crepe tape an adjust spray nozzle to 3.5 mm on slot with angled screwdriver.
