Front

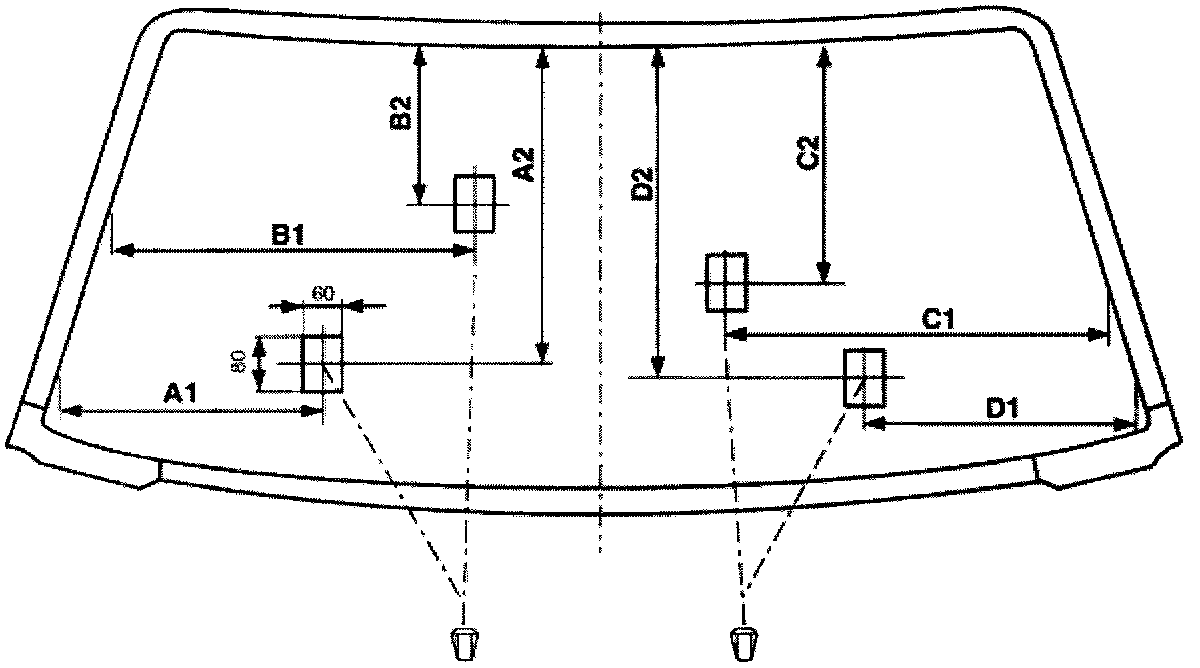

NOTE: the sprayed jets of water should hit the middle of the wiping area.
Dimensions are provided for LHD models; dimensions for RHD
Models are a mirrored version.





A1 305 mm
A2 630 mm
B1 550 mm
B2 290 mm
C1 465 mm
C2 290 mm
D1 340 mm
D2 490 mm





Mark points of contact with adhesive tape.

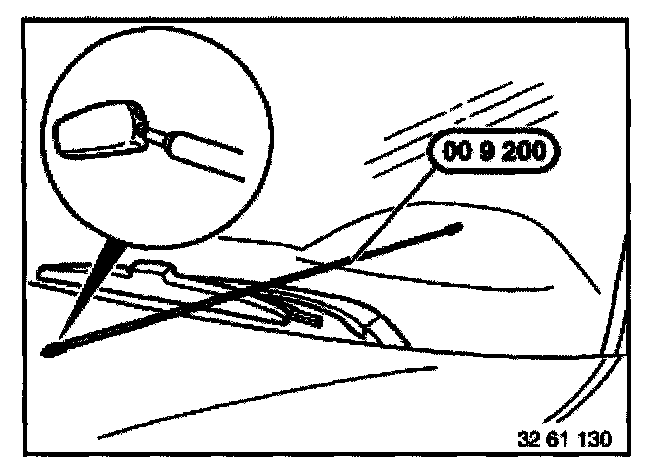

Adjust spray nozzles using special tool 00 9 200.
