FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
1999
>>
M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Windshield Washer Reservoir
>>
Service and Repair
>>
Replacing Fluid Tank (Regular Fluid)
Replacing Fluid Tank (Regular Fluid)
-
Empty container.
-

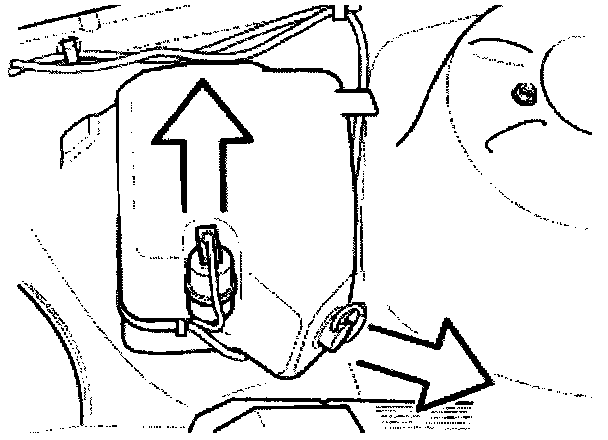

Remove pump and hose.
-
Remove level switch.
Installation:
-
Make sure that there are no bends in the hose after installation.
-

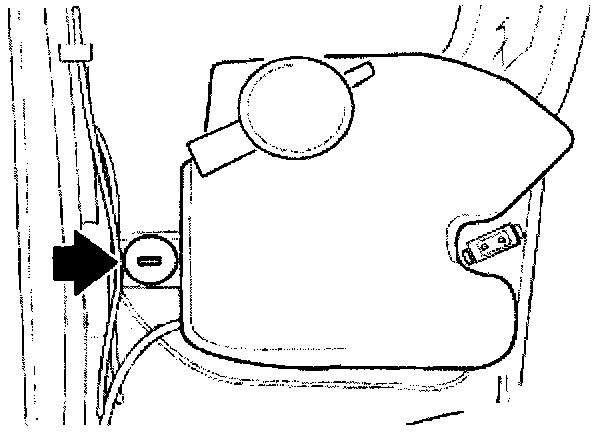

Remove tank screw.
