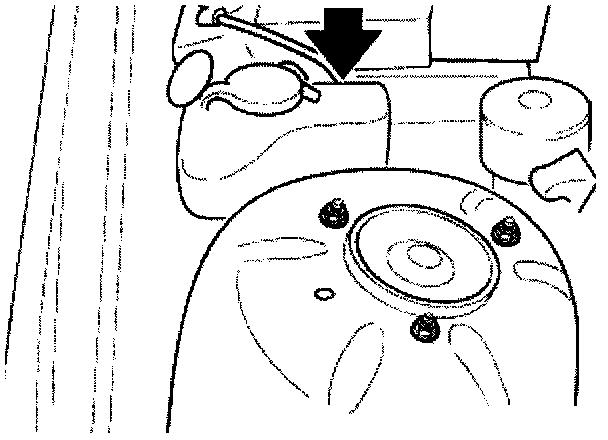

Windshield Washer Pump: Service and Repair
-
Empty container.
-
Loosen hose clamp.
-
Disconnect plug-in connection.
-
Pull out pump.
Installation:
-
Make sure that there are no bends in the hose after installation.
