Windshield Washer Hose: Service and Repair

Repair For Line Tube to Rear Window Washer Unit

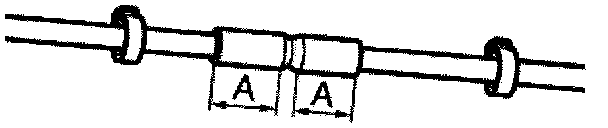

- Cut out the defective section of line tube. Cut an appropriate length of hose 6166 1 357 388 (sold by meter). Slide hose clips 1613 1 379 229 over ends of wires. Connect ends of both lines to cut length of hose. Hose must be slid at least A = 12 cm over the ends of the lines.

Installation note: Coat ends of lines with anti-friction agent.

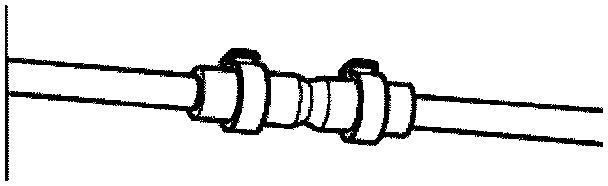

- Arrange hose clips on the overlap and tighten down firmly.

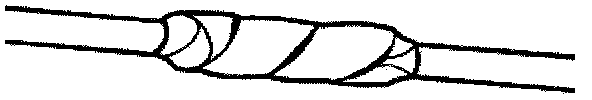

- Wrap hose clips in insulating tape to prevent chafing.
