Front Door Window Regulator: Service and Repair

Removing and Installing/Replacing Power Window Unit In Left or Right Front Door

Note: Whenever battery power is interrupted to window motors, Initialize Windows Initialization of Window Regulator

Only sedan/compact/touring:
- Removing door window. Service and Repair

Only coupe/convertible:
- Clamp door window at top with two wooden wedges.
- Release door window glass, do not remove. Service and Repair




- Remove screw and remove door opener.

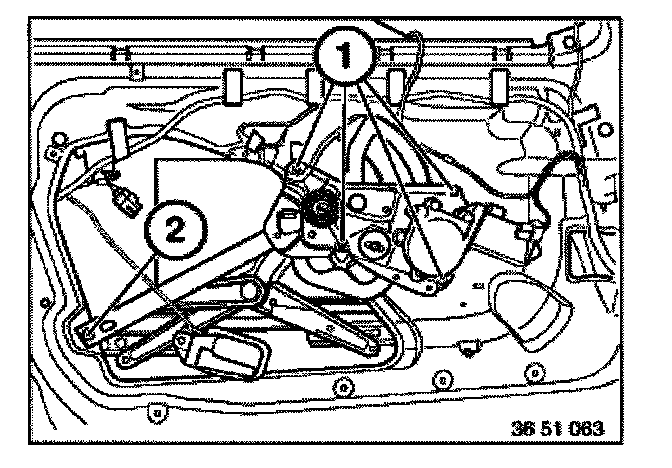

- Unscrew screw (2). Grind off rivets (1).

Installation:
Vacuum out borings in front door
Replace milled out rivets with:
- M6 X 10 screws
- with washer dia. 6.4 mm
- and nut.
Tightening torque, 9 Nm
Check function

Note: The following work step ends here: "Removing and installing electric window left in left or right front door"

Replacement only:
- Remove flat motor for front electric window lift
