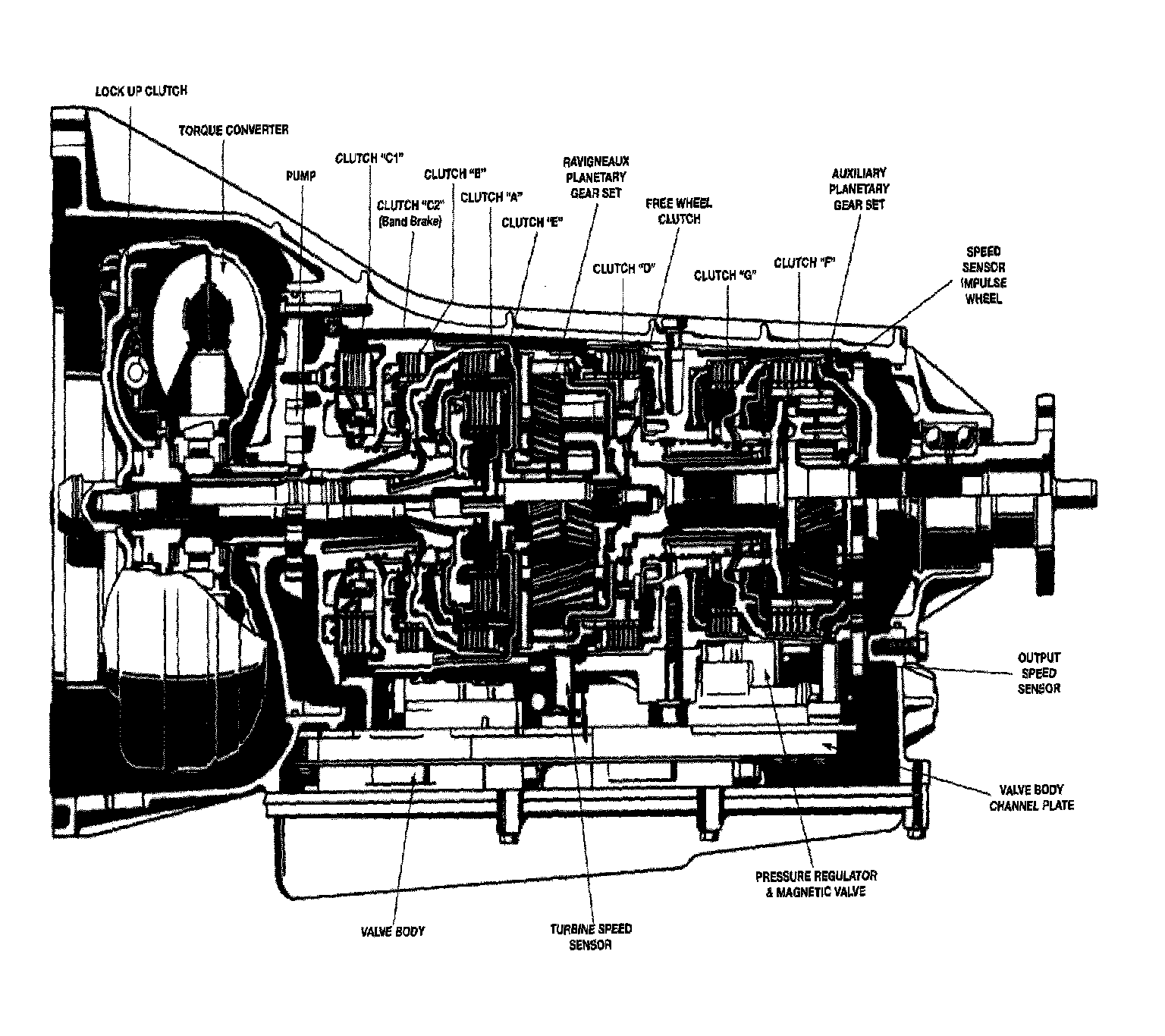

A5S 310Z




A5S 310Z

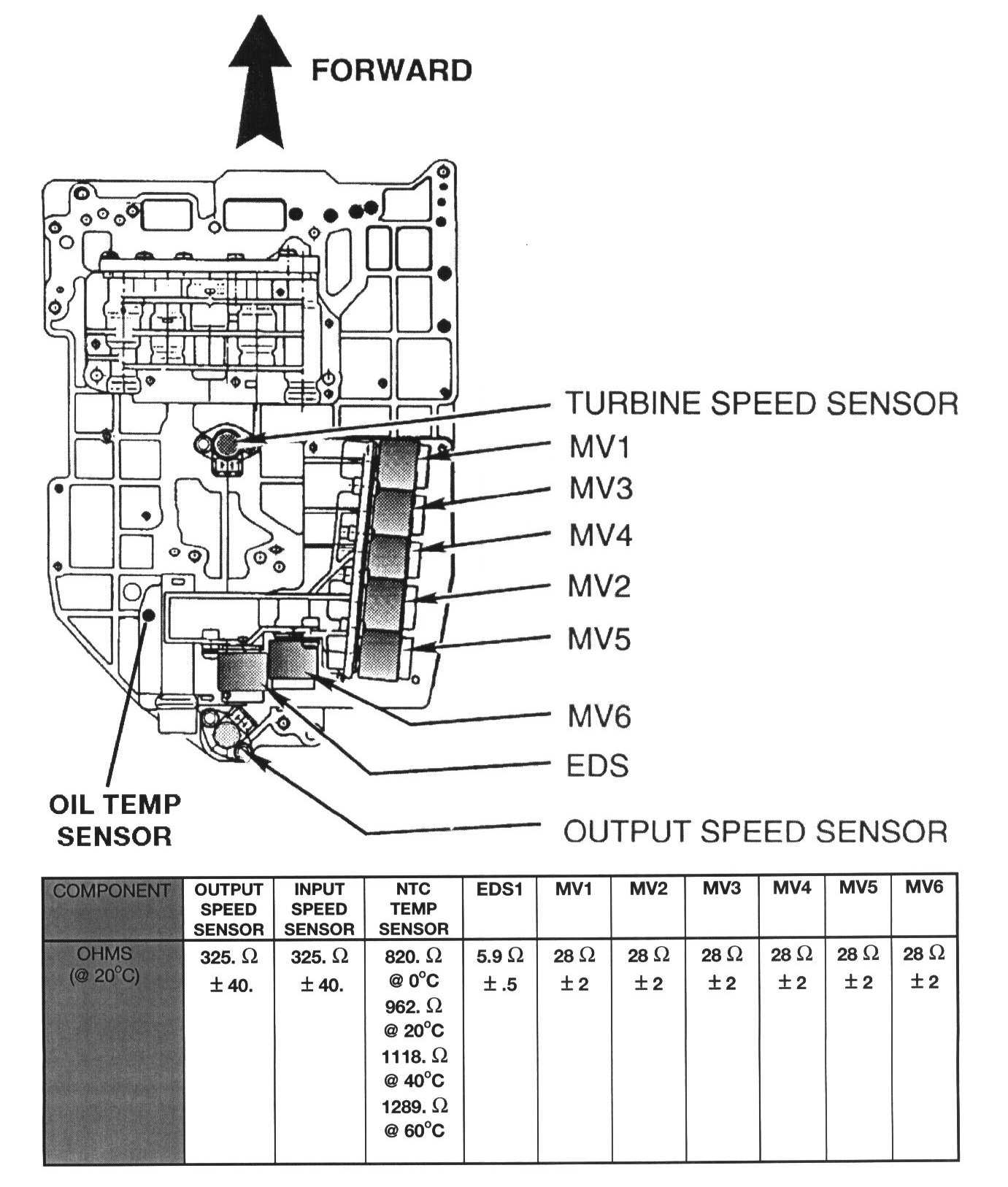

Valve Body Component Identification







NOTE: All components viewed from top of Valve Body.

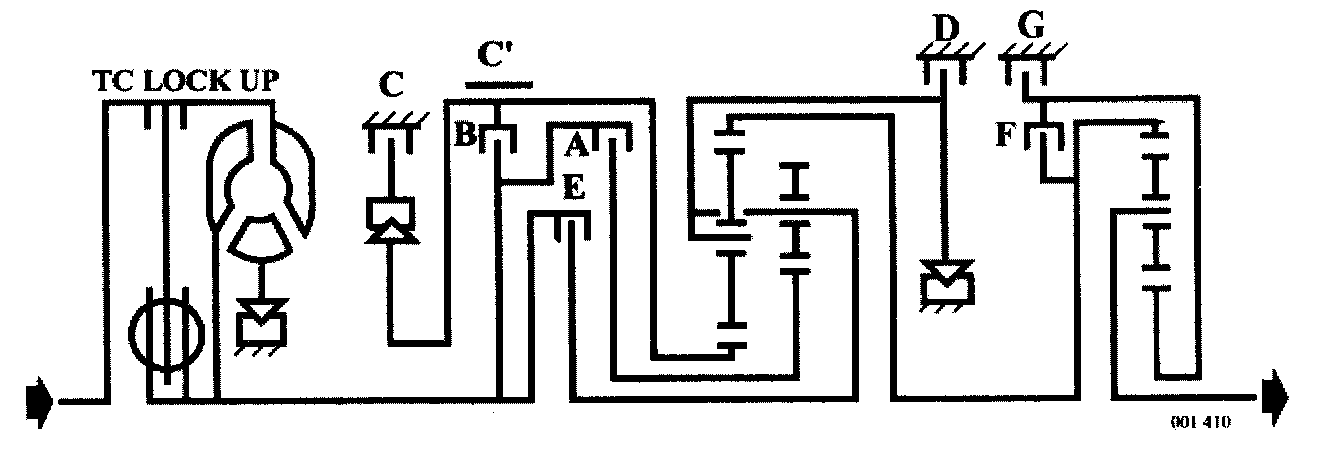

A5S 310Z - Power Flow Schematic

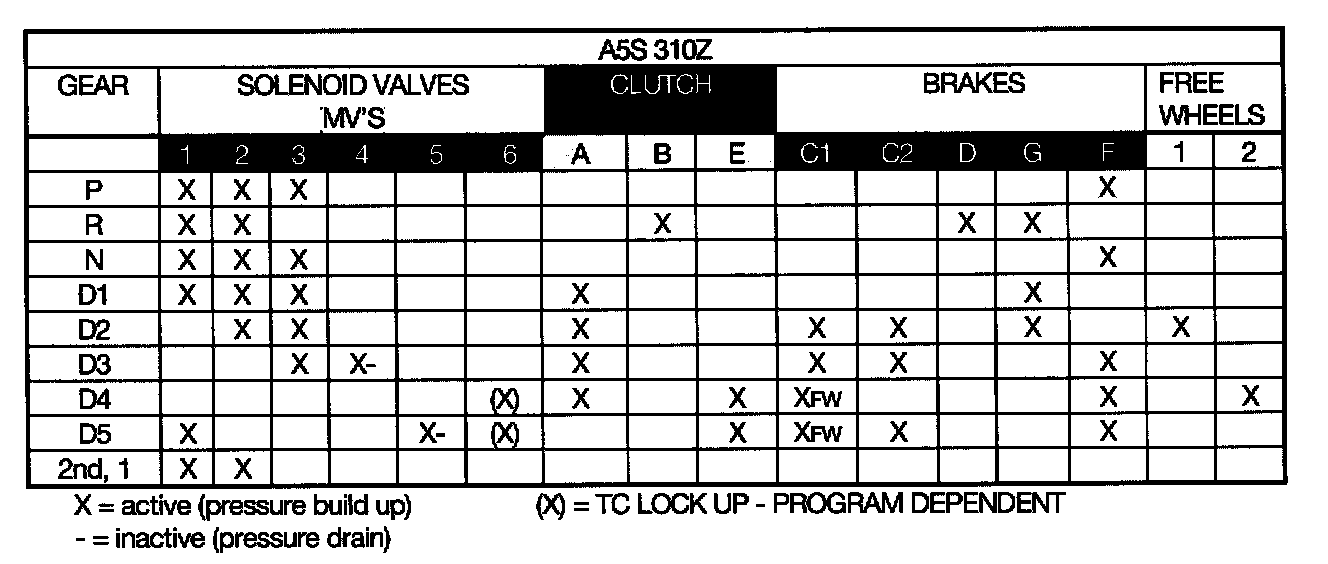

Gear Application Chart







Component Locations
