Replace Shift Rod Joint

Removing transmission propeller shaft, refer to Drive/Propeller Shaft, Bearings and Joints.

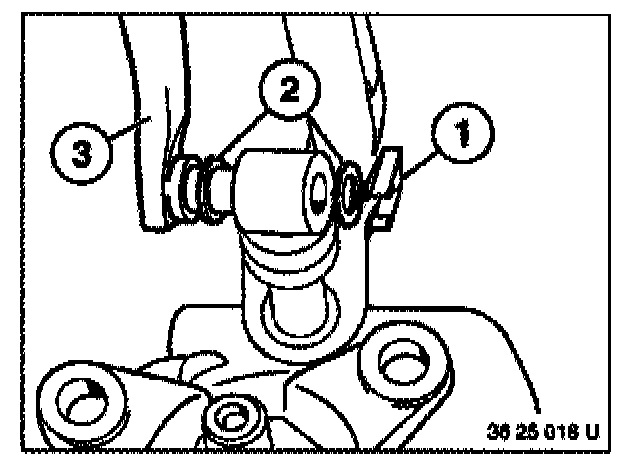

Remove retainer (1).
Remove washer (2).
Remove selector rod (3).

Installation:
Coat bearing with Kluber Polylub GLY 801, or equivalent

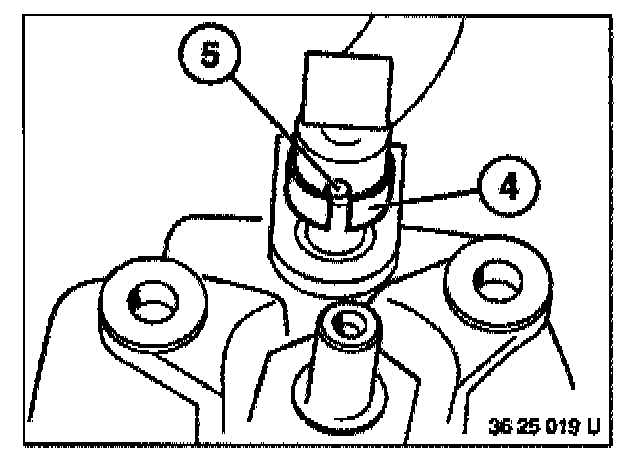

Slide back retaining sleeve (4).
Drive out cylindrical pin (5).





Installation:

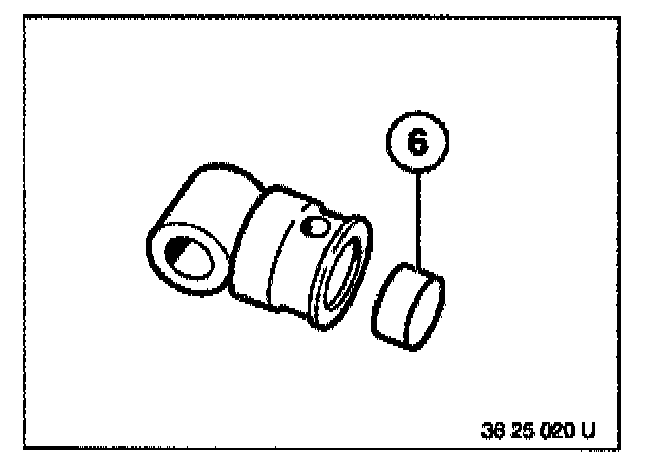

Check damping disc (6) in joint and replace if necessary.
