Input Shaft Seal

Replacing drive shaft radial seal (S5D 260Z/310Z S5D 320Z)

Note: After completion of work, check transmission oil level.

Caution: Use only approved gear oil in this manual transmission.
Failure to comply with this requirement will result in serious damage to the transmission.

Transmission removed.

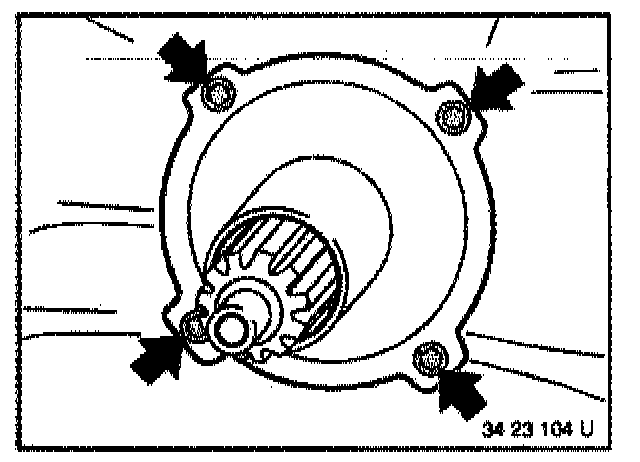

Unfasten screws and remove guide tube.

Tightening Torque, refer to Manual Transmission/Transaxle, Specifications.

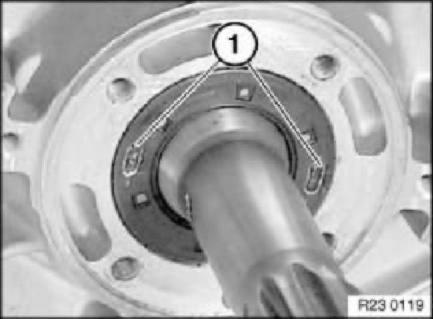

Note: Two covered removal holes (1) are located on the end face the radial sealing ring.





Screw special tool 23 0 490 into one of the two removal holes.
Pull radial sealing ring out of transmission housing with impact weight.

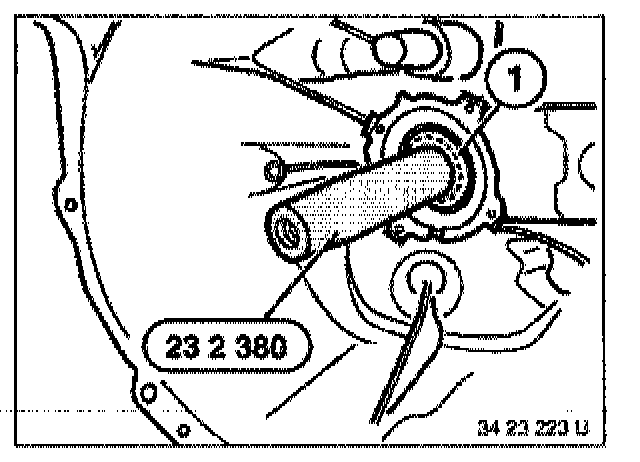

Fit special tool 23 2 380 to the transmission input shaft.
Coat sealing lips of new radial seal (1) with transmission oil and slide firmly home on transmission case.
Remove special tool 23 2 380 from drive shaft.

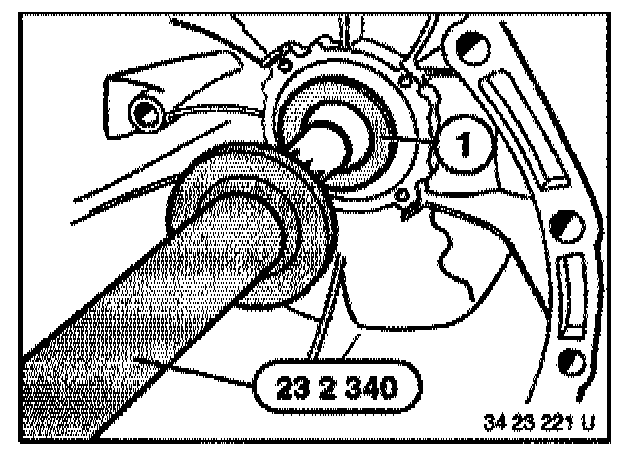

Drive radial seal (1) firmly home with special tool 23 2 340.

Note: Use plastic hammer to drive in.
