Extension Housing Seal, M/T

Replacing radial seal for output flange (S5D 260Z/310Z/320Z)

After completion of work, check transmission oil level.
Disconnect propeller shaft from transmission flange and tie up to one side, refer to Drive/Propeller Shafts, Bearings and Joints.





Support transmission with a workshop hoist.

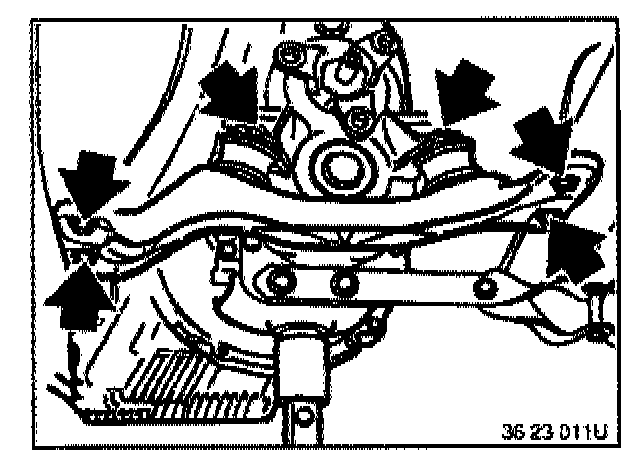

Unfasten screws and remove cross-member.

Installation:
Tightening torque, refer to Manual Transmission/Transaxle, Specifications.

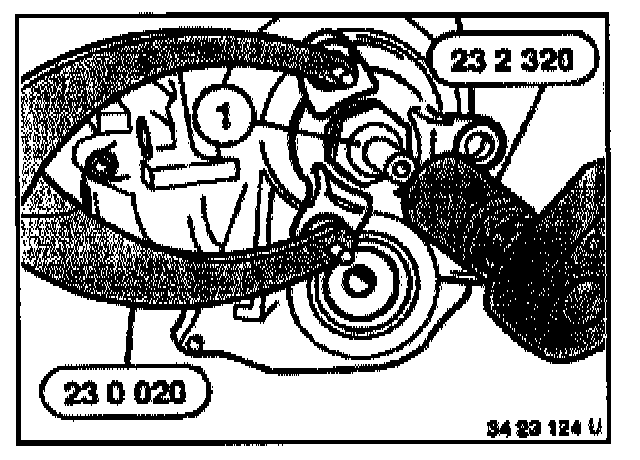

Brace output flange with special tool 23 0 020.
Unfasten collar nut (1) with special tool 23 2 320.

Installation:
Install collar nut (1) with screw retainer: use suitable screw retaining compound.
Tightening torque, refer to Manual Transmission/Transaxle, Specifications.

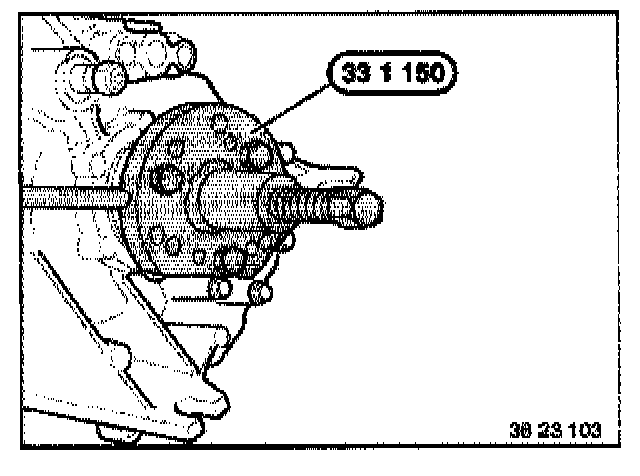

Remove output flange from transmission output shaft with special tool 33 1 150.

Installation:
Heat output flange to approx. 80°C and slide onto transmission output shaft.

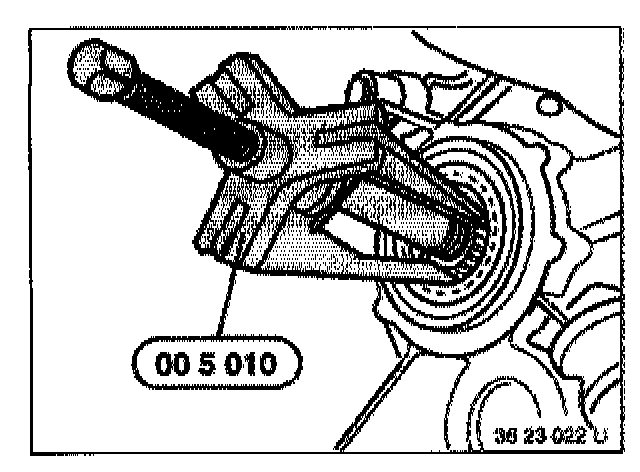

Remove radial seal with special tool 00 5 010.





Coat sealing lips of new radial seal (3) with transmission oil.

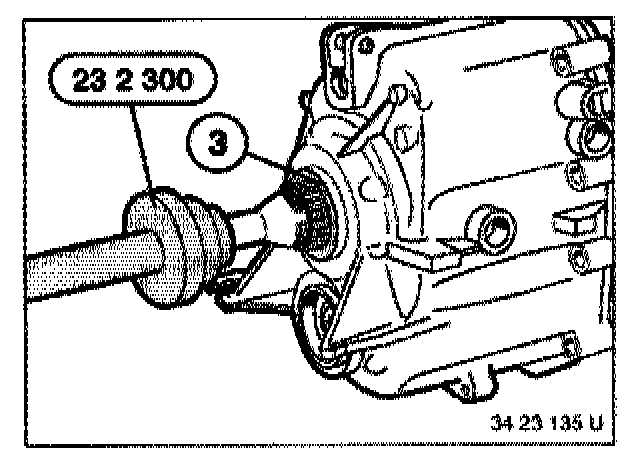

Drive radial seal (3) home flush with special tool 23 2 300.

Note: Use plastic hammer to drive in.
