Driveshaft Version Without Slide

Remove propeller shaft, refer to Drive/Propeller Shaft, Service and Repair.

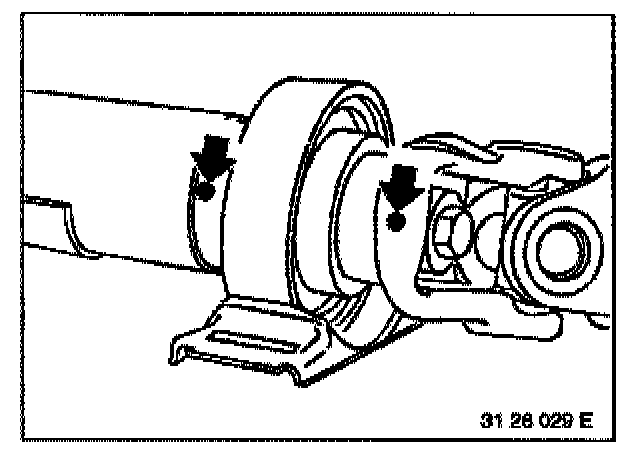

Mark installed position of front propeller-shaft section to rear propeller-shaft section.

Caution: Propeller shaft was balanced in assembled state so the propeller-shaft sections must not be turned when reinstalled.

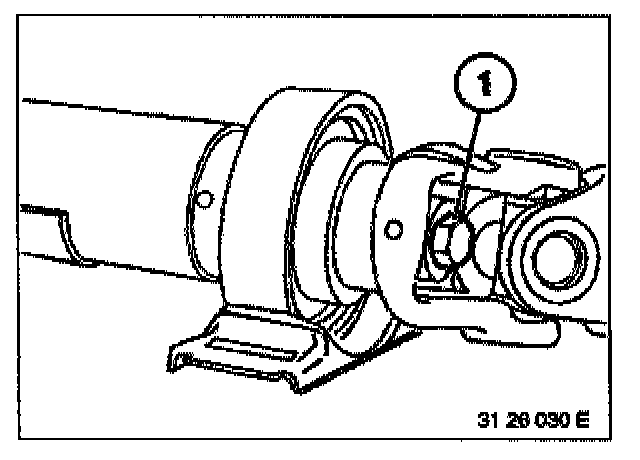

Unscrew bolt (1).
Pull off front section of propeller shaft.

Installation note:
Assemble propeller shaft in such a way that punch marks are located on opposite sides.
Secure screw (1) with screw retainer (refer to BMW Parts Service).
For tightening torque, refer to Drive Propeller Shaft, Specifications.

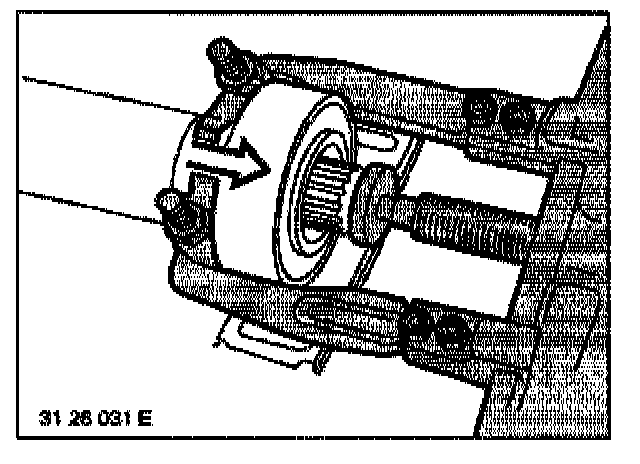

Pull off centre mount complete with grooved ball bearing using a standard puller.

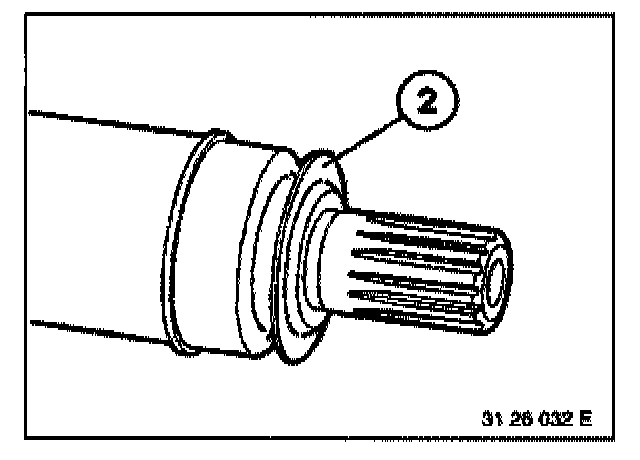

Installation note: Pay attention to installed direction of dust cover (2).

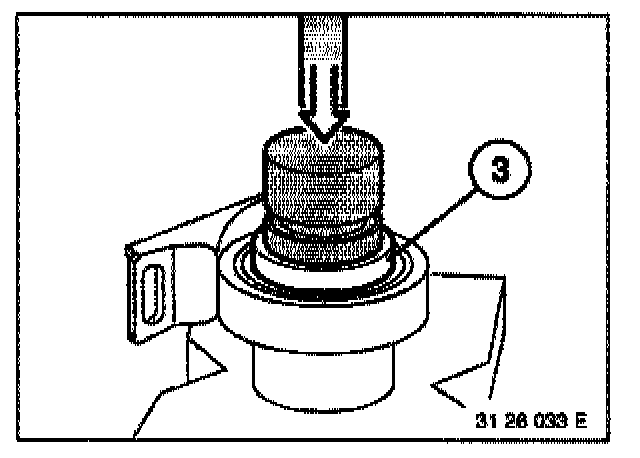

Press grooved ball bearing (3) into centre mount.

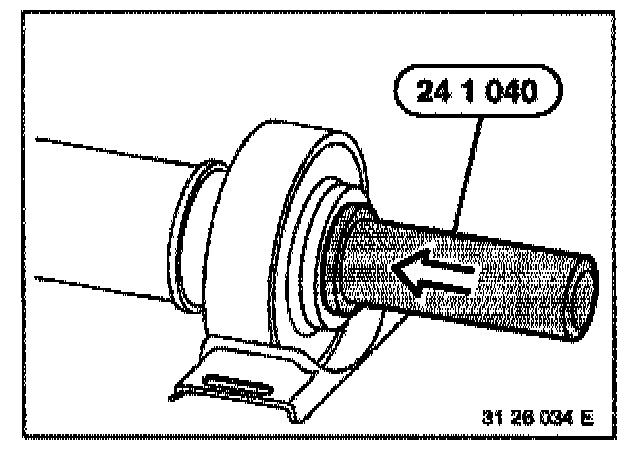

Drive on centre mount with ball bearing using Special Tool 24 1 040.

Caution: Check centre mount for ease of movement.
