Driveshaft Version With Slide

Remove propeller shaft, refer to Drive/Propeller Shaft, Service and Repair.
Mark installed position of front propeller-shaft section to rear propeller-shaft section.

Caution: Propeller shaft was balanced in assembled state so the propeller-shaft sections must not be turned when reinstalled.





Pull off rear propeller-shaft section.

Installation note:
Unscrew locking sleeve (1).

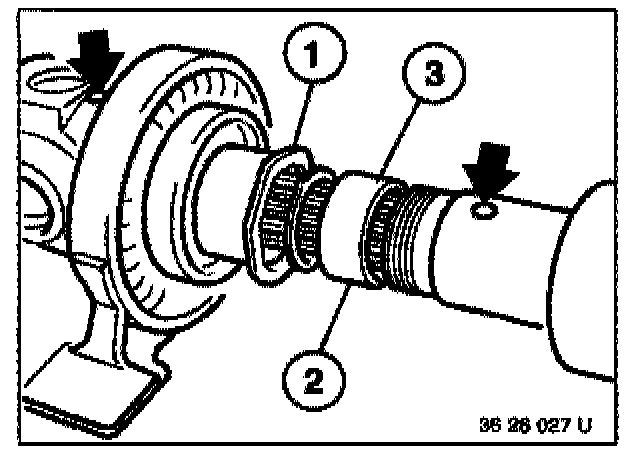

Before assembling the propeller shaft brackets, first fit clamping bush (1), washer (2) and rubber ring (3).
Clean and lubricate splines with Molykote Longterm 2 or equivalent.

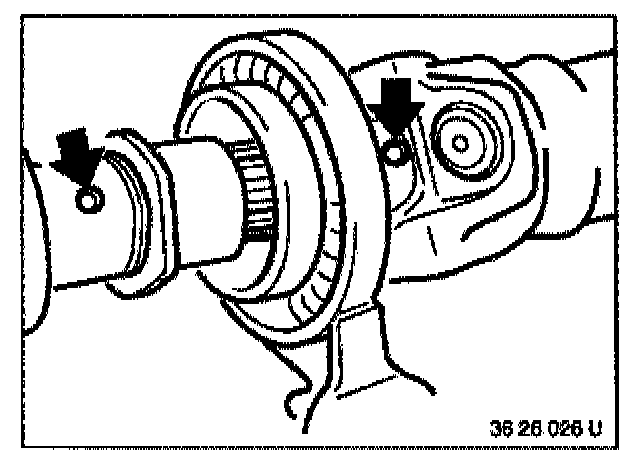

Assemble propeller shaft in such a way that punch marks are aligned.





Only possible for version with universal joint on transmission:

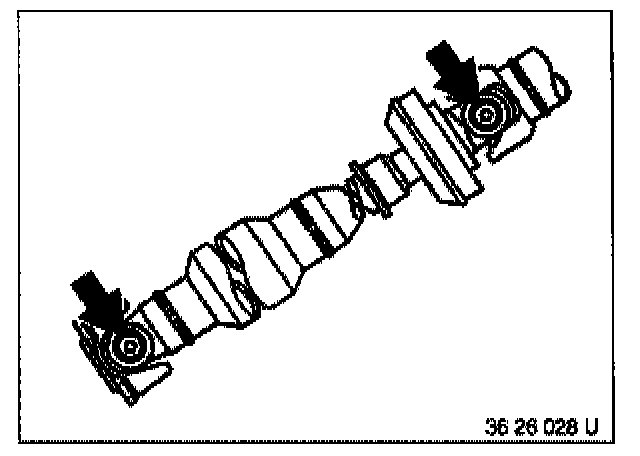

Note: Propeller shaft sections are mounted in such a way the universal joints are in one plane.

If sliding piece is mistakenly dismantled without marking, the only assembly error possible is a 180° offset due to balancing operation.





Lift out circlip (4).
Take off dust cover (5).

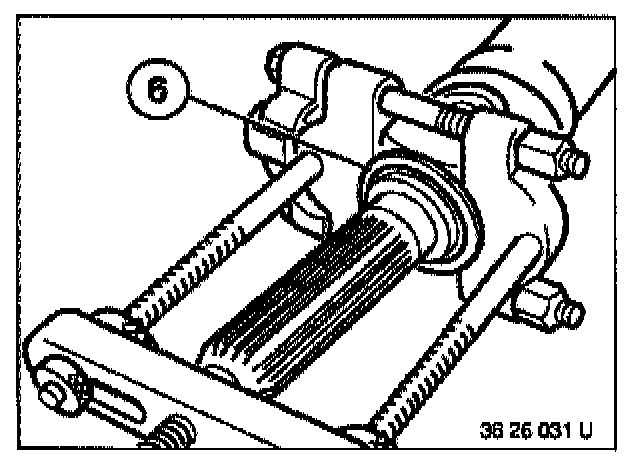

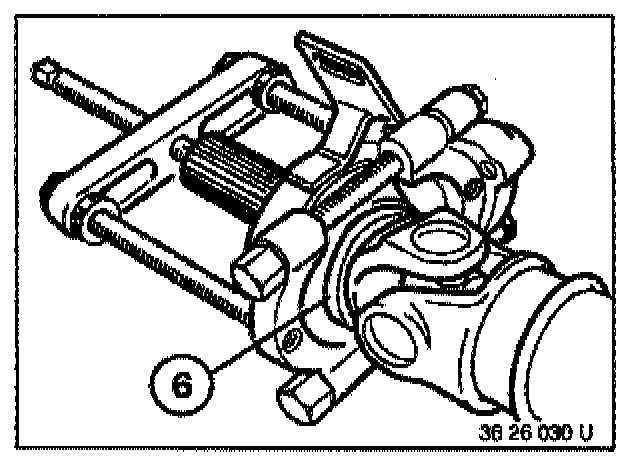

Apply Kukko or equivalent puller on centre mount in such a way that dust cover (6) cannot be damaged.
Pull off centre mount with ball bearing.





If dust cover was damaged (deformed), pull off dust cover with Kukko puller and replace.
Knock on dust cover to fit tightly using Special Tool 23 160.

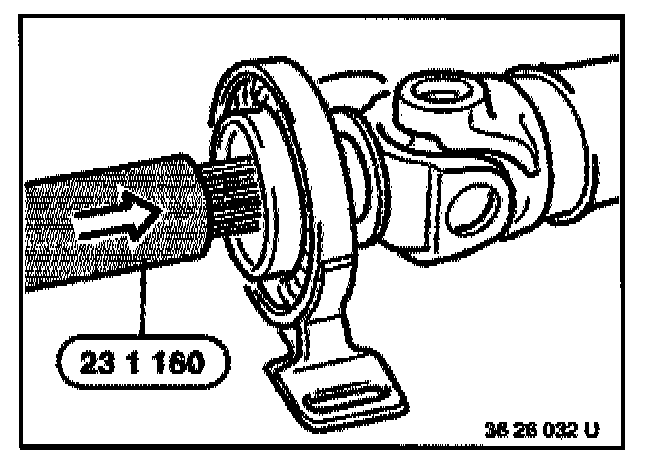

Drive on centre mount with ball bearing to fit tightly using Special Tool 23 1 160.

Caution: Check synchronization and movement of centre mount
