Pilot Bearing: Service and Repair

Replacing Grooved Ball Bearings In Crankshaft

(clutch removed)

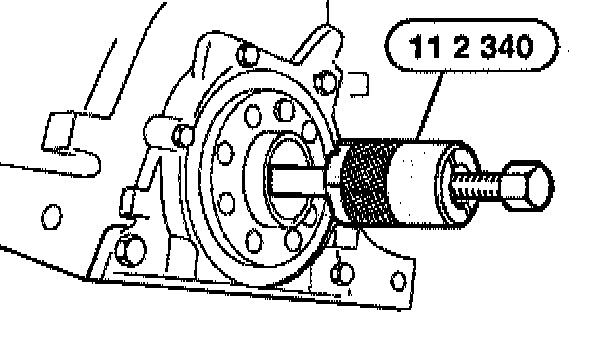

Remove thrust bearing with Special Tool 11 2 340.

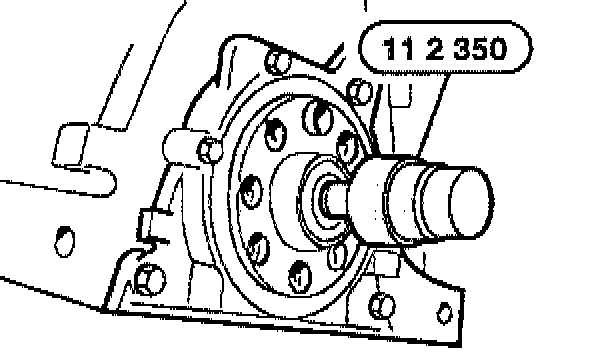

Install new thrust bearing and drive firmly home with Special Tool 11 2 350 in conjunction with Special Tool 00 5 500.
