Clutch Release Fork: Service and Repair

(Transmission removed)

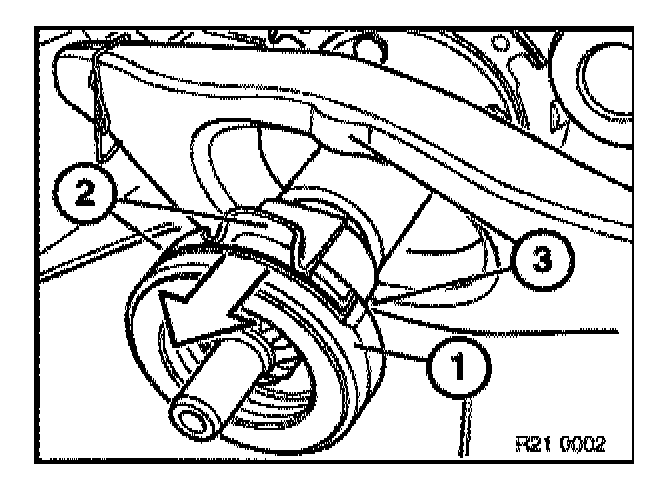

Remove release bearing (1).

Installation:
Clean all sliding surfaces on release bearing.
Sliding surfaces (2) of release bearing must rest on sliding surfaces (3) of release lever.

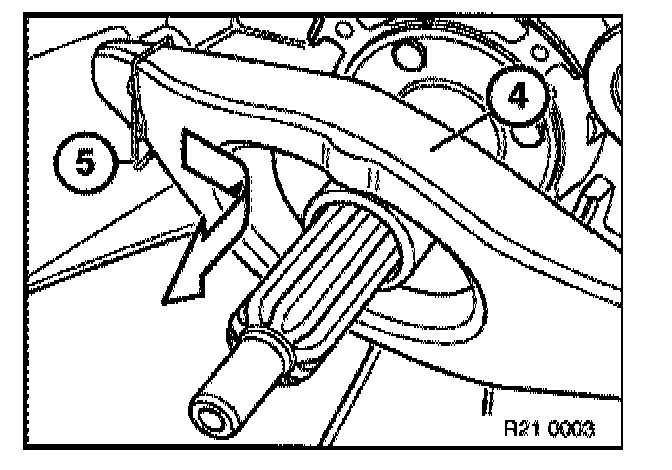

Pull release lever (4) out of spring clip (5) and remove.





Installation:

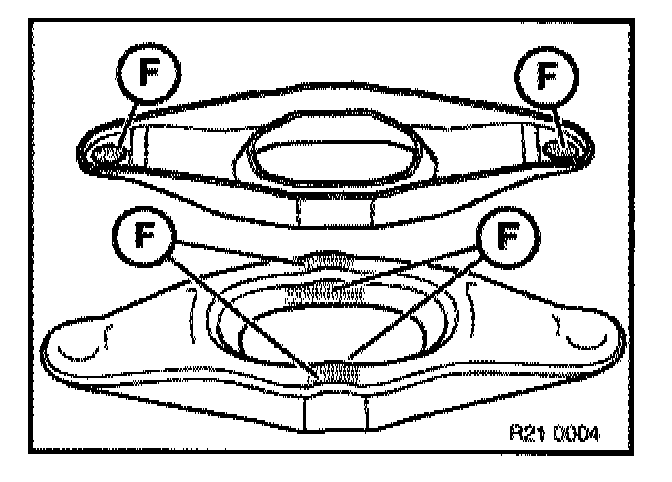

Clean release lever and thinly grease sliding surfaces (F).

Grease: using suitable lubricant.





Installation:
Check spring clip (5) and ball stud (6) for damage and replace if necessary.

Note: The spring clip and ball stud must always be replaced on transmission S6S 420G.

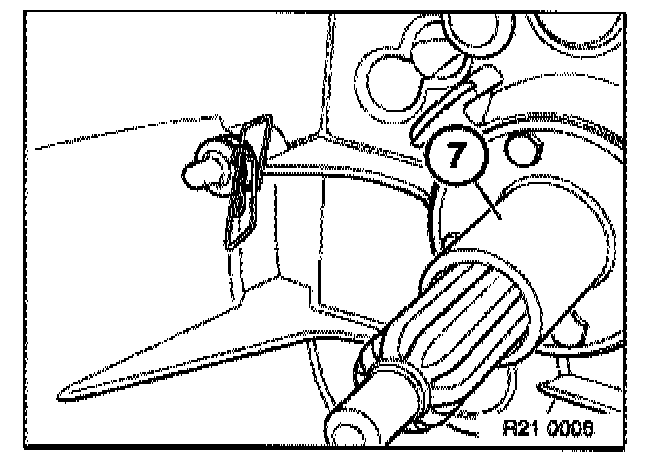

Clean guide sleeve (7).

Caution: Do not grease guide sleeve.

If guide sleeve is greased, the release lever can stick on the guide sleeve.
