Replacement

NOTE: Remove mounting block for pedal assembly, see Removal/Installation

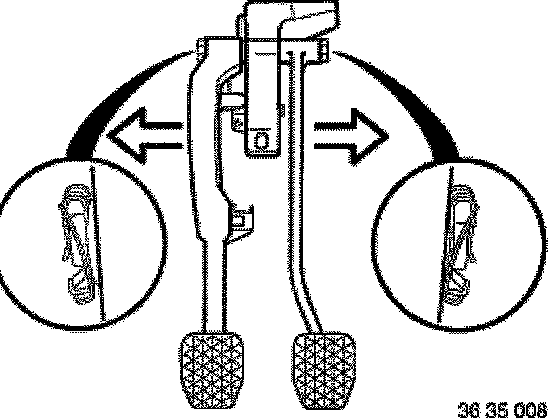

- Take off locking clips.
- Pull brake and clutch pedals off shaft.
- Installation:
Make sure locking clips are seated correctly.

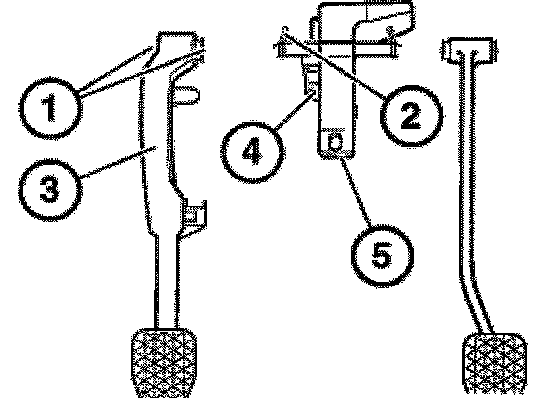

- Clutch-pedal assembly:
1. Bearing sleeves - check or replace
2. Locking clip
3. Clutch pedal
4. Grommet for clutch-pedal return spring
5. Mounting block

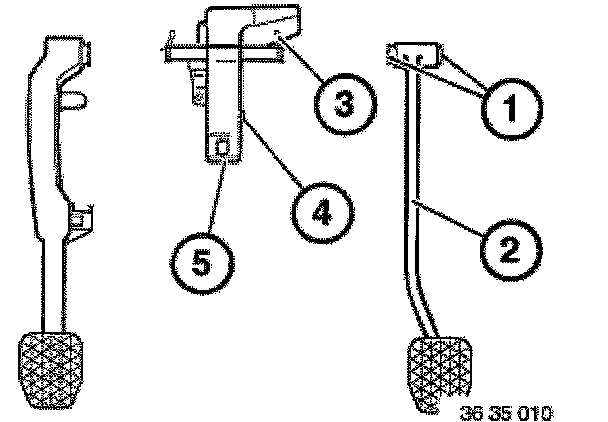

- Brake-pedal assembly:
1. Bearing sleeves - check or replace
2. Brake pedal
3. Locking clip
4. Grommet
5. Mounting block

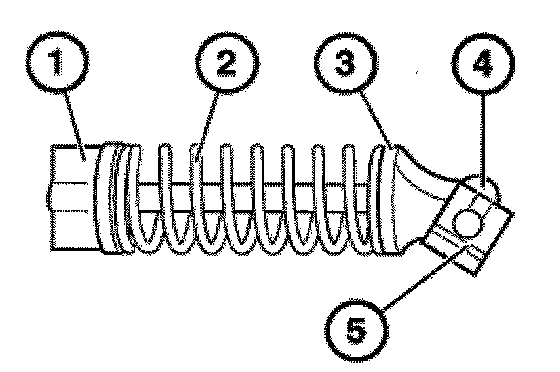

- Assembly of over-centre helper spring
1. Spring retainer
2. Over-centre helper spring
3. Guide pin
4. Shaft pin
5. Locking clip
- Check grommet on clutch pedal, replacing if necessary
- Check grommet on shaft for brake pedal, replacing if necessary.
- Transfer brake and clutch pedals with bearing sleeves.
Check grommets on pedals, replacing if necessary.
- Transfer grommet for brake pedal return spring, replacing if necessary.
- Transfer grommet for clutch pedal return spring, replacing if necessary.
- Grease sliding faces. Fluid Type Specifications
