Pedal

NOTE:
- Remove panelling for instrument panel
- Remove brake-light switch.
- If applicable, remove clutch switch.
- Remove retaining plate, refer to Pedal Mounting Block.

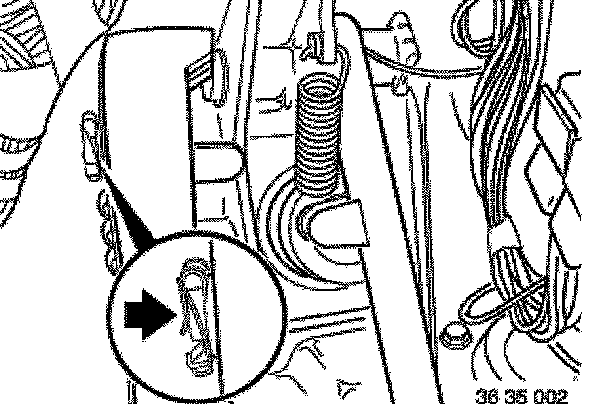

- Take off locking clip for shaft pin of clutch-sensor cylinder.
- Version with return spring for clutch pedal:
Disconnect return spring.
Push out shaft pin.
- Installation:
Lubricate sliding surfaces with grease. Fluid Type Specifications





- Version with over-centre helper spring:
Hold clutch pedal tightly.
Push out shaft pin.
Pull up clutch pedal slowly and take off over-centre helper spring.
- Installation:
Lubricate sliding surfaces with grease. Fluid Type Specifications

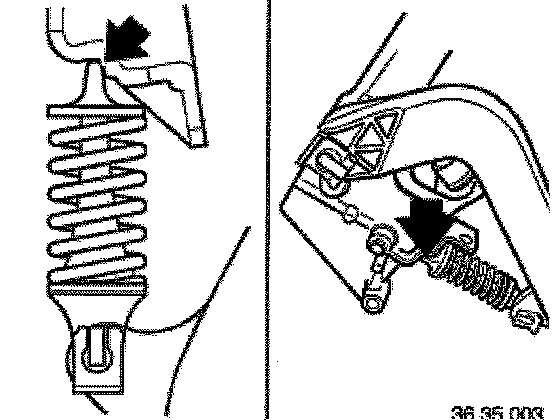

Check for correct seating of spring holder in mounting block!

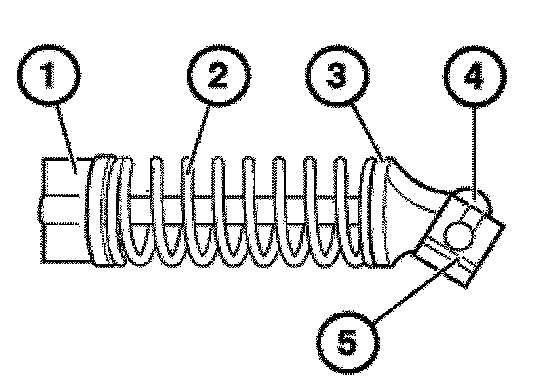

- Assembly of over-centre helper spring:
(1) Spring holder
(2) Over-centre helper spring
(3) Guide pin
(4) Shaft pin
(5) Locking clip

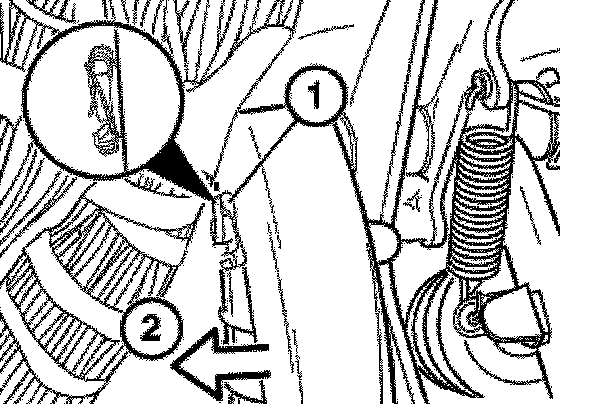

- Take off locking clip (1) for clutch pedal.
- Pull off clutch pedal (2).
- Installation:
Check bearing sleeves, replacing if necessary.
Lubricate sliding surfaces with grease. Fluid Type Specifications
