Wiring Harness: Service and Repair

Replacing wire harness in automatic transmission

Remove valve body.

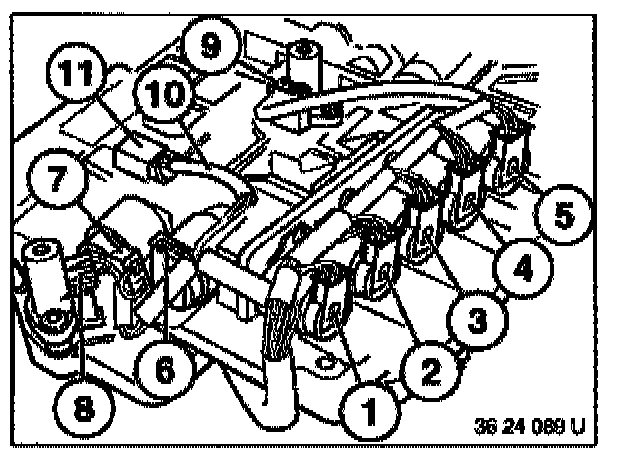

Pull plugs off of solenoids (1 - 6) and pressure regulator (7).
Pull plugs (8 and 9) off of pulse senders.

Note: Temperature sensor (10) is integrated in the wire harness and must be inserted into holder (11).

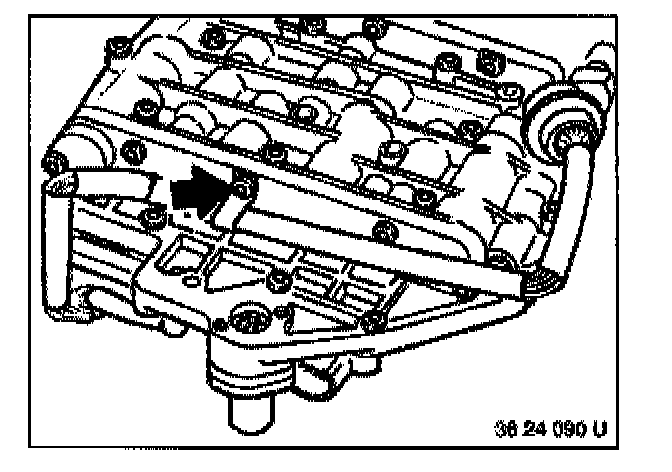

Unscrew holder on valve body.
Take off wire harness.
