Valve Body: Service and Repair

Remove or replacing shift control unit

Remove oil pan, refer to Transmission Pan, Service and Repair.

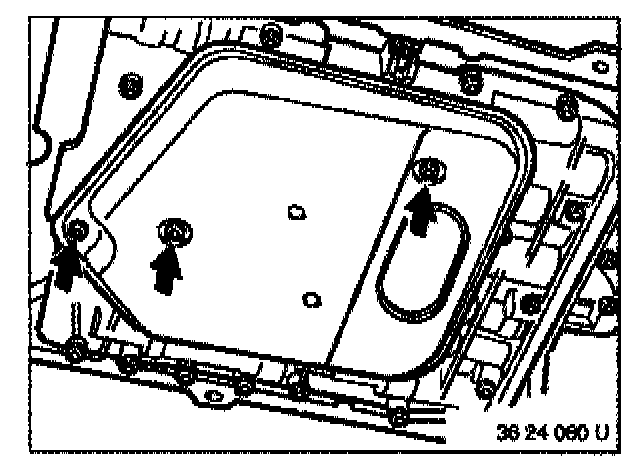

Unfasten screws and remove oil strainer.
Installation: Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.





Installation:

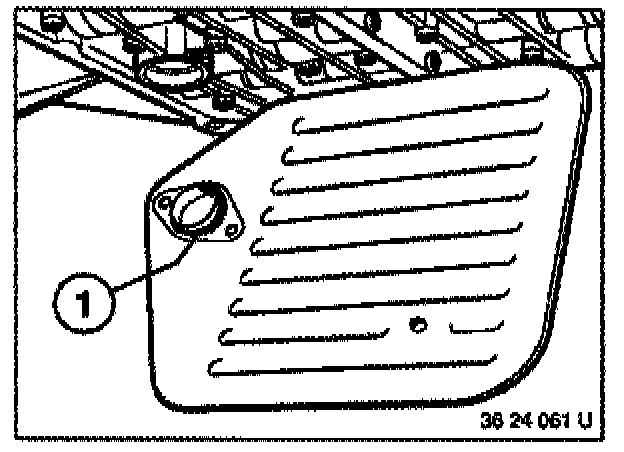

Replace O-ring (1).
To facilitate assembly, coat O-ring (1) with Vaseline.

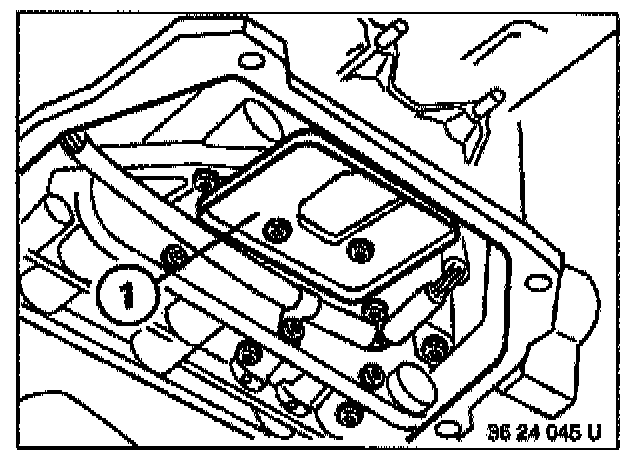

Unscrew cover (1) from valve body.

Installation:
Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.

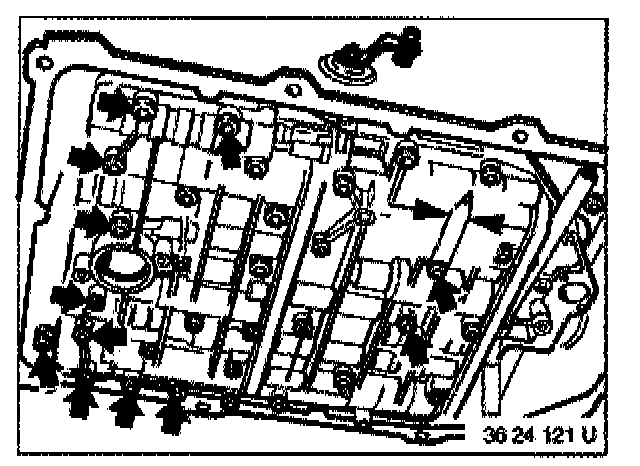

Unscrew valve body on case.

Caution: Only unscrew bolts with head size (A) of 12 mm.

Installation:
Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.

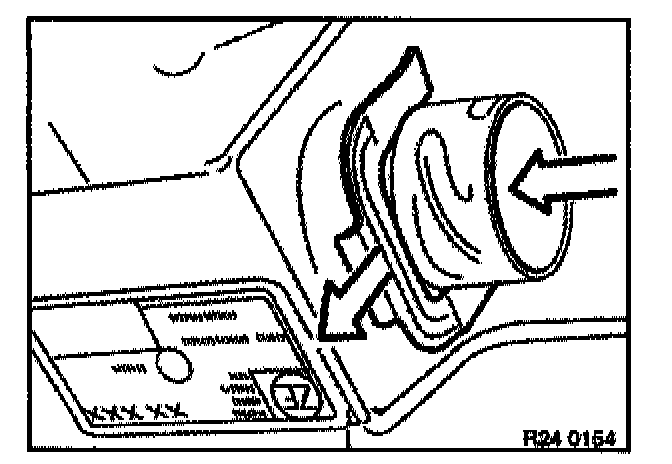

Turn connector to left and remove.

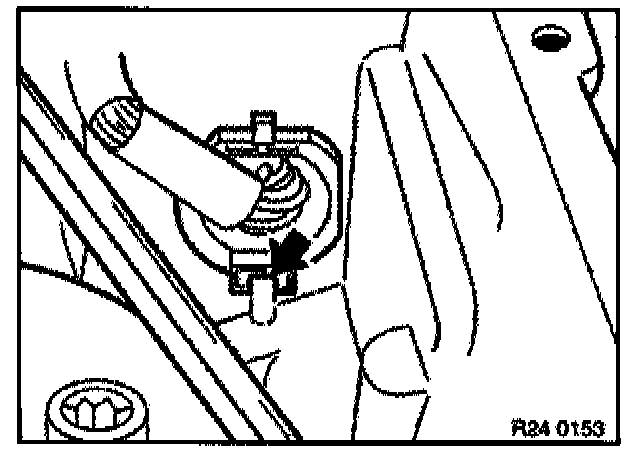

Remove retaining clip and press cable connector into transmission case.





Installation:

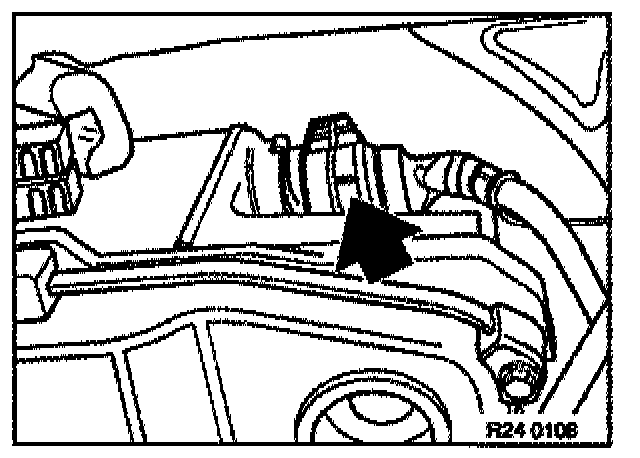

Note installation position in connector housing.





Installation:

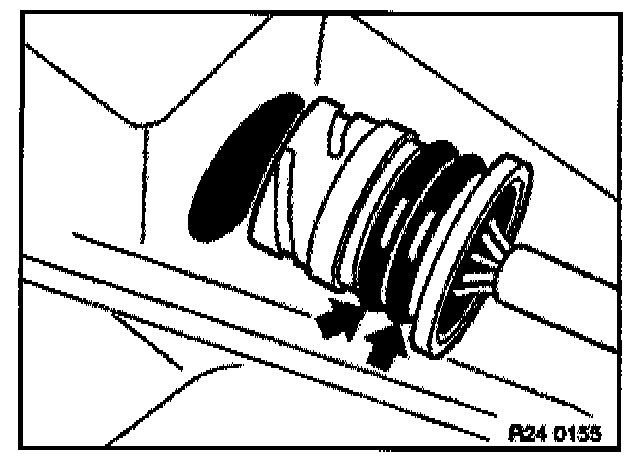

Replace O-rings.
To facilitate assembly, coat O-ring (1) with Vaseline.





Remove valve body with wire harness.

Installation:

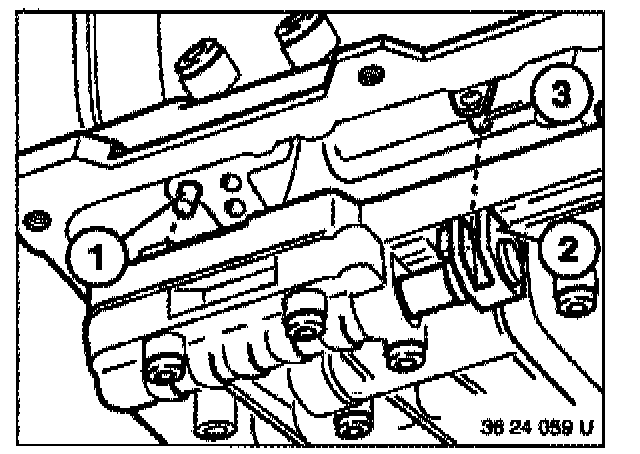

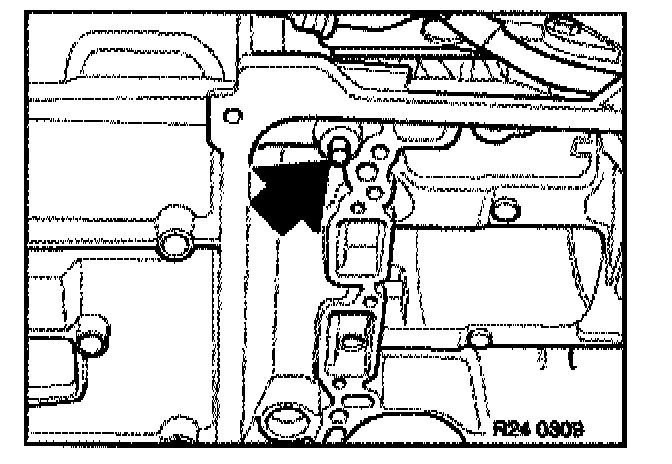

Note dowel pin (1).
The spigot (3) on the selector lever must engage in the groove of the slide valve (2).





Installation:
Insert dowel pin in the transmission case.
