Selector Shaft, A/T

Replacing radial seal for manual shift valve shaft (A5S 31OZ)

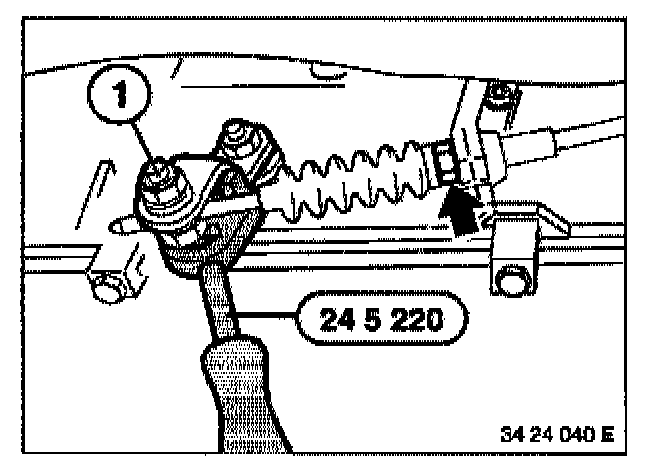

Loosen nut (1).

Caution: Always counterhold bolt with special tool 24 5 220 to avoid deformation of the cable.

Note: Special tool 24 5 220 can only be fitted in position "P".

Unscrew cable from holder. Pull out cable.

Installation:
Adjust selector lever, refer to Shift Linkage A/T, Adjustments.

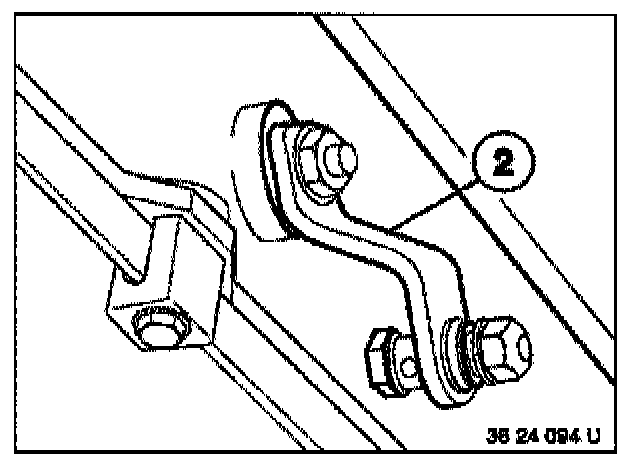

Unscrew lever (2).

Installation:
Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.

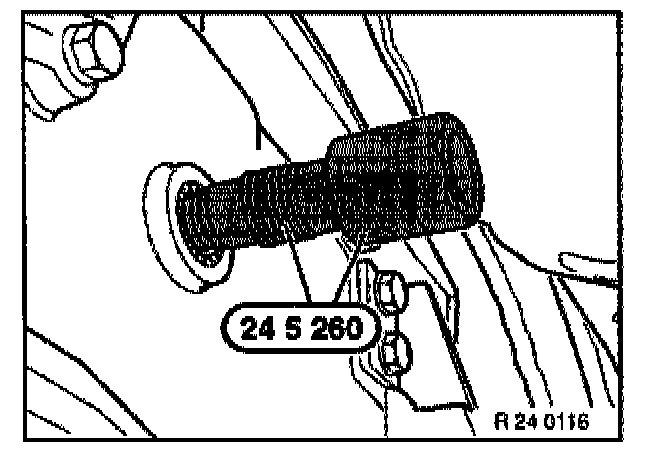

Remove radial seal with special tool 24 5 260.

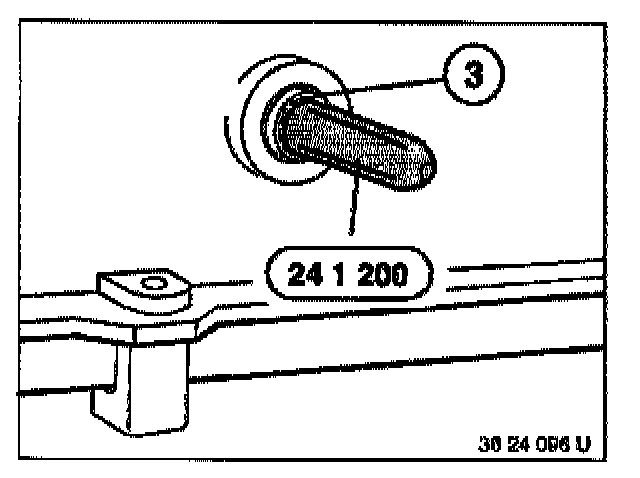

Apply special tool 24 1 200 on manual shift valve shaft.
Lubricate sealing lip of radial oil seal with oil.
Drive in radial oil seal (3) as far as case.
Remove special tool 24 1 200.

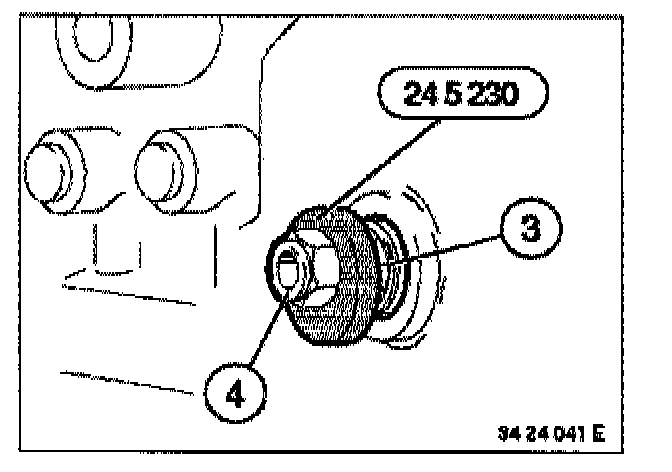

Apply special tool 24 5 230 on the selector lever shaft.
Screw on lever mounting nut (4).
Press radial oil seal (3) in using special tool 24 5 230 with help of nut (4).
