Planetary Gear Sets I and II

Dismantling and assembly/replacing planetary gear sets I and II
Refer to Input Clutch "B".

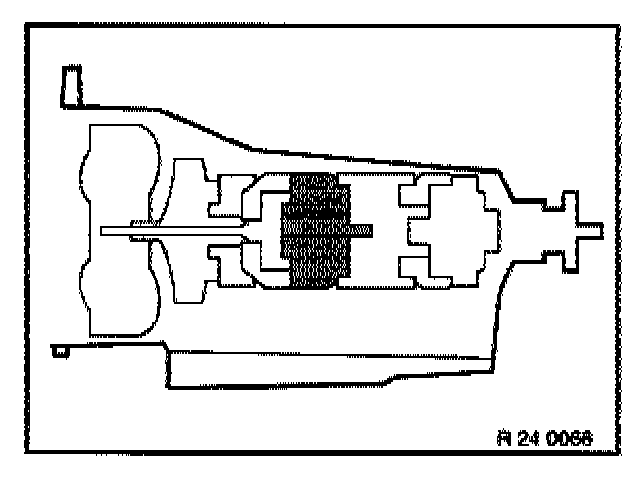

Arrangement of planetary gear sets I and II

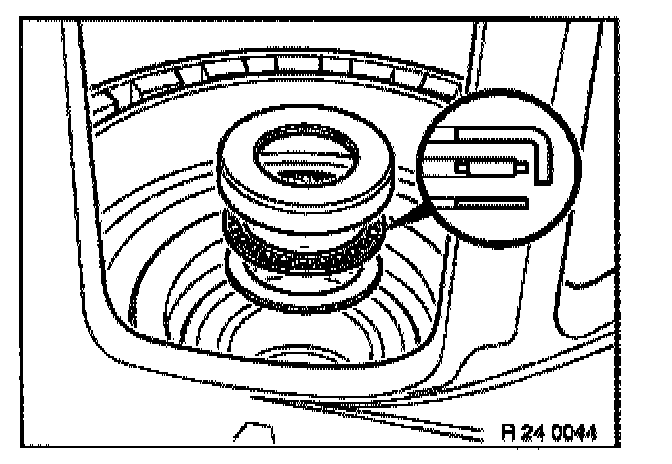

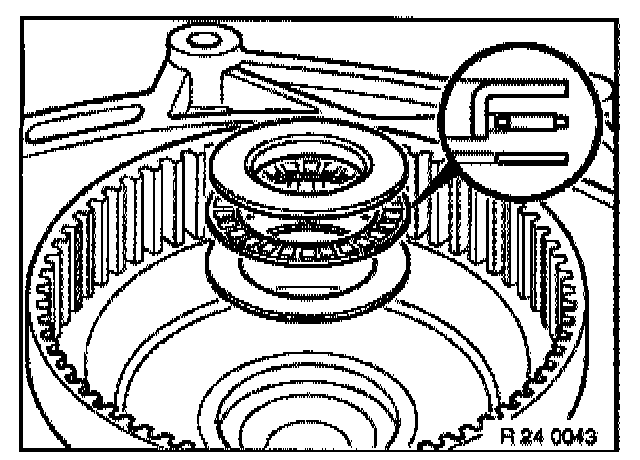

Lift off thrust bearing.

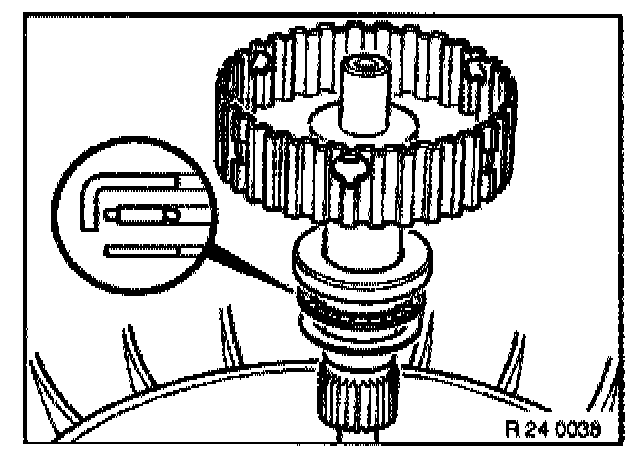

Lift out intermediate shaft and axial bearing.

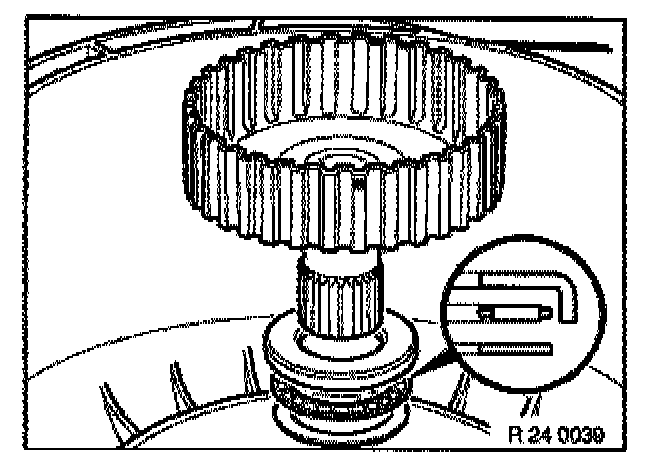

Lift out sun shaft and axial bearing.

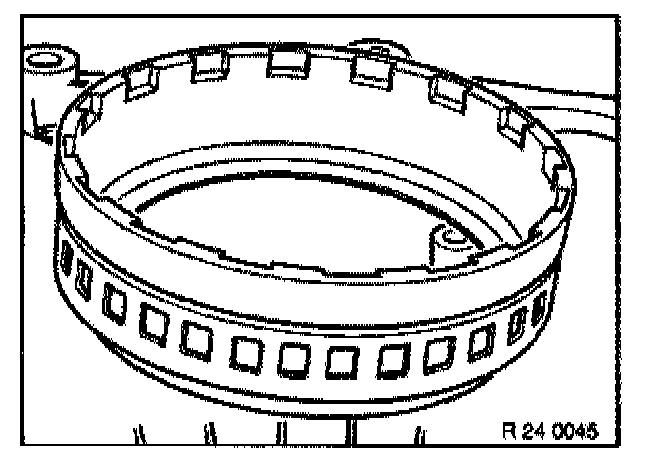

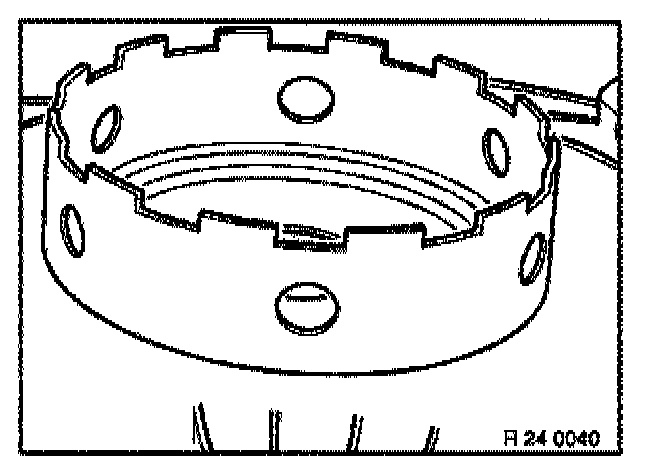

Lift out pot.

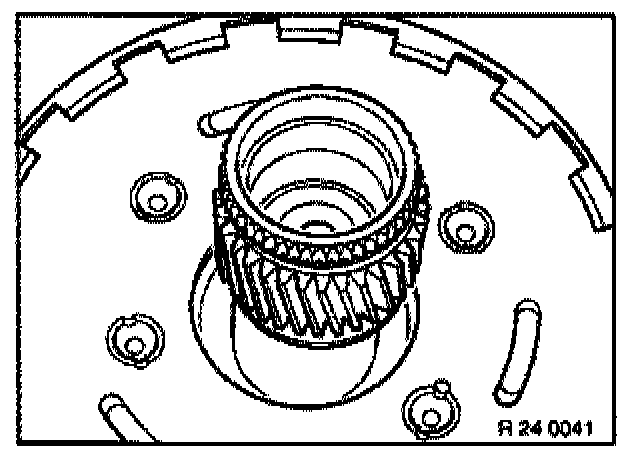

Lift out sun gear.

Installation:
Check installed direction.

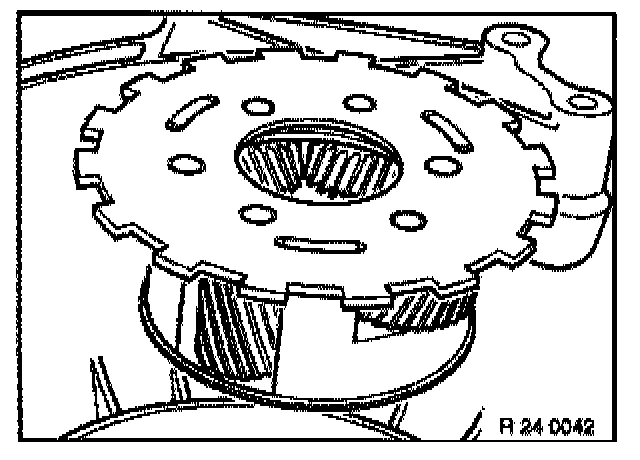

Lift out planet carriers I and II.





Remove thrust bearing and shaft with hollow gear.

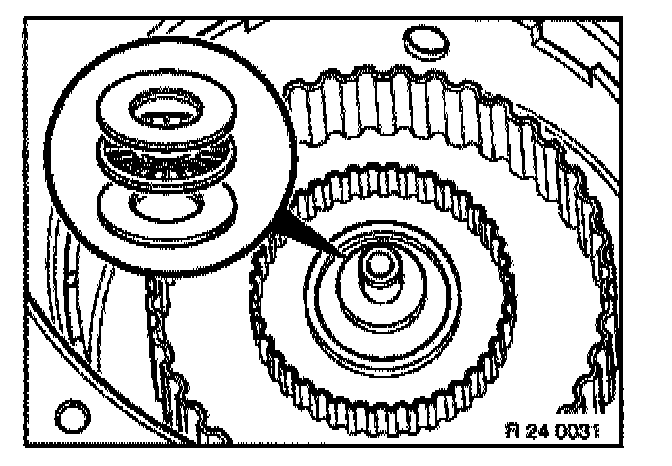

Remove thrust bearing.

Installation:
Note installation position of angled disc.





Remove bowl.
