Input Clutch "F"

Replace input clutch "F"
Refer to Planetary Gear Set III.

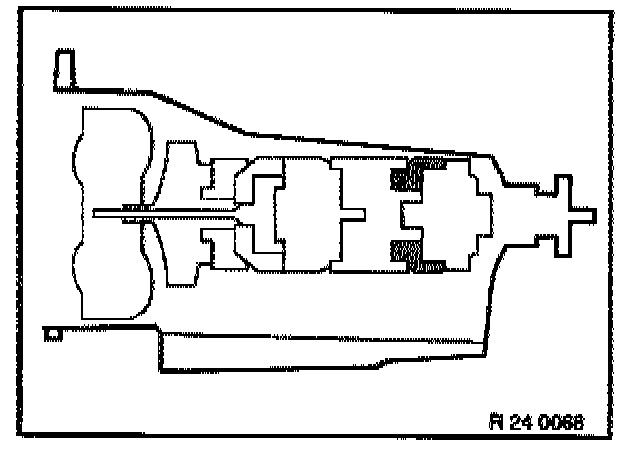

Arrangement of input clutch "F"





Lift off thrust bearing.

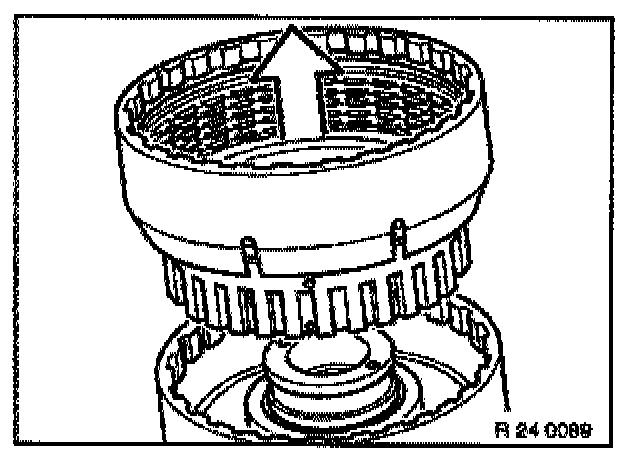

Lift off input clutch "F".





Installation:
Insert input clutch "F" in brake clutch "D/G" and move gently to and from until all discs locate in one another.

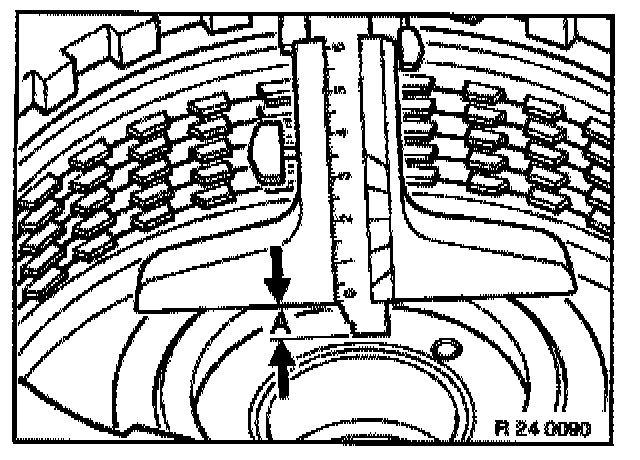

All discs are in mesh when dimension (A) is approx. 7.0 mm.
