Parking Pawl: Service and Repair

Remove or replacing parking lock (pawl/helical coiled spring)

Remove valve body.

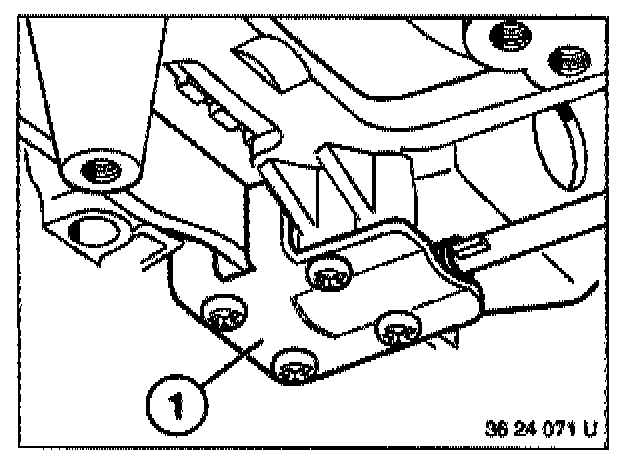

Remove holder (1) from housing.

Installation:
Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.





Take off holder.

Installation:

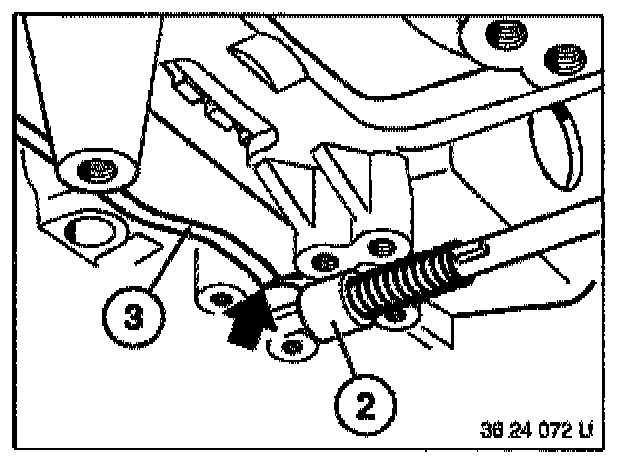

Connecting rod (2) must engage in groove of locking lever (3).





Unscrew plug (4).

Installation:
Check seal (5), replacing if necessary.
Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.

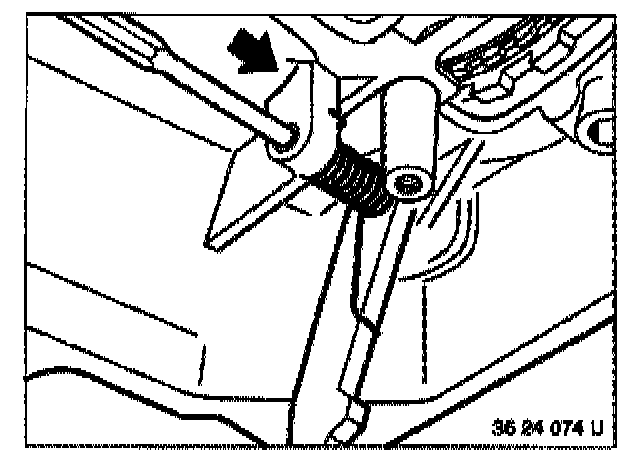

Drive out bearing pin from inside to outside.

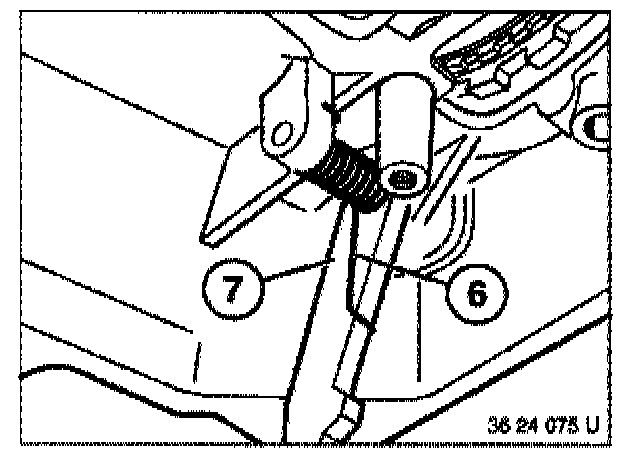

Remove spring (6) and parking lock lever (7).

Installation:
Install spring (6) that long arm faces locking lever (7).
