Output Yoke: Service and Repair

24 13 156 Replacing output flange





Remove output flange.

Caution: Axial play must be checked and, if necessary, adjusted

Clamp transmission extension in a vise.
Output flange must not bear.
Press output flange in direction of output.

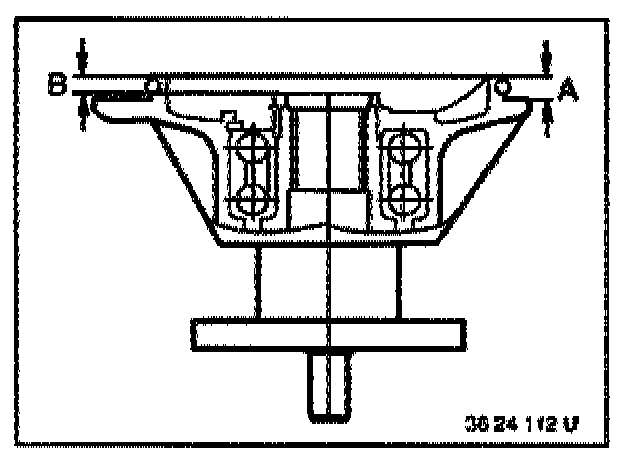

Measure distance (A) from shoulder to sealing surface and distance (B) from shoulder to end of output flange.

Example:
A =10.0 mm
-B = 7.4 mm _______________
C = 2.6 mm

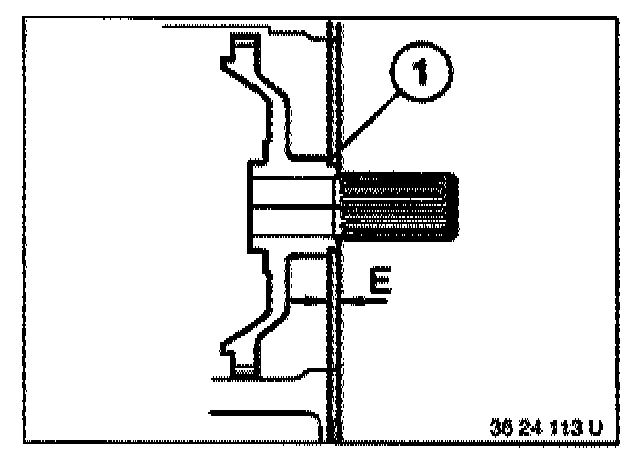

Measure distance (E) from sealing surface to shoulder (1) on parking lock gear.
Press in parking lock gear for this purpose.

Example:
E = 4.0 mm





Calculate thickness of shims:
Distance E
-Distance C
-Axial play: (0. 15 - 0.35 mm) ______________________________
=Total thickness of spacer

Example of calculation:
E = 4.0 mm
-C = 2.6 mm
- Axial play e.g. 0.2 mm ________________________
Spacer = 1.2 mm

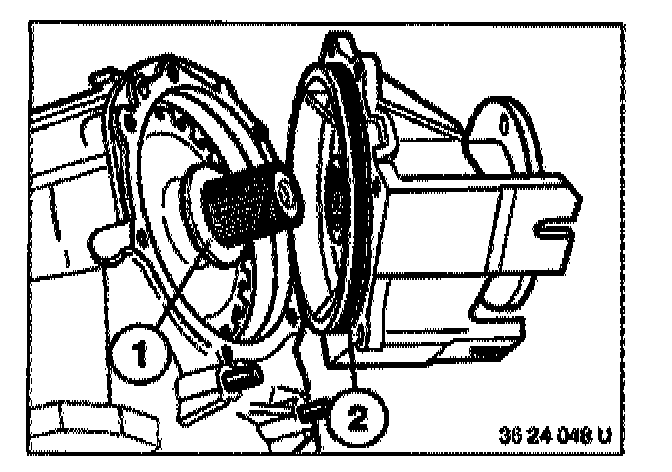

Install spacer (1) of correct thickness. Spacers are available from Parts in thicknesses of 0.8 to 2.8 mm.
