Fluid Filter - A/T: Service and Repair

Remove or replacing transmission oil strainer





Remove oil pan, refer to Transmission Pan, Service and Repair.

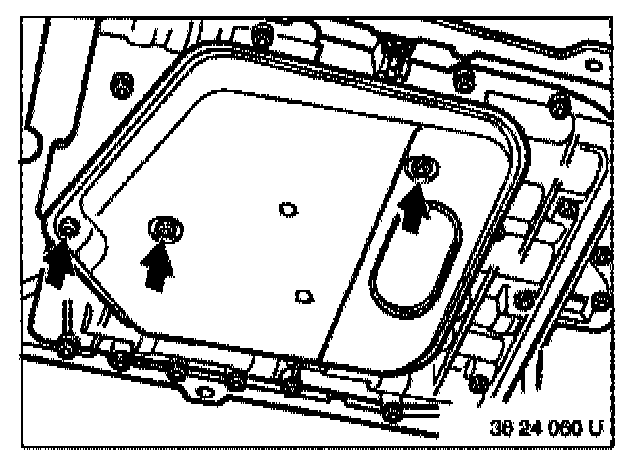

Unscrew oil strainer on valve body.

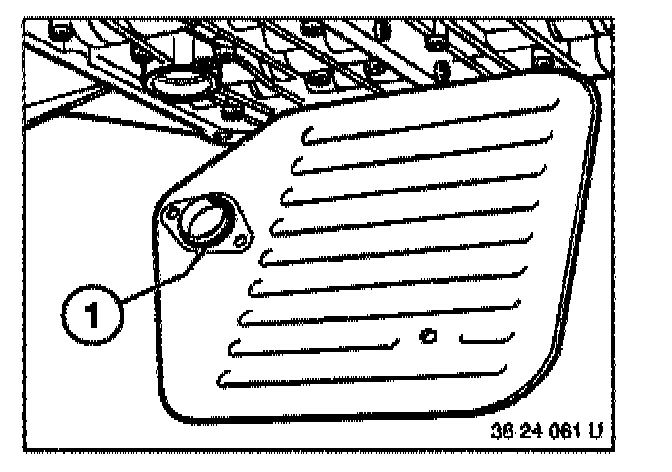

Take off oil strainer.
Watch out for O-ring (1).
Installation:
Tightening torque, refer to Automatic Transmission/Transaxle, Specifications.
