Replacing Sealant Bottle of M-Mobility System

Replacing sealant bottle of M-Mobility system

Note:
This work step describes how the sealant bottle is replaced within the framework of inspection (M-Mobility system not used).

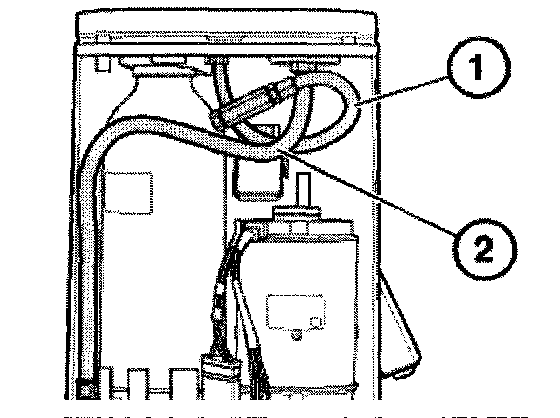

If the M-Mobility system has been used, also replace the transparent tire inflation hose.

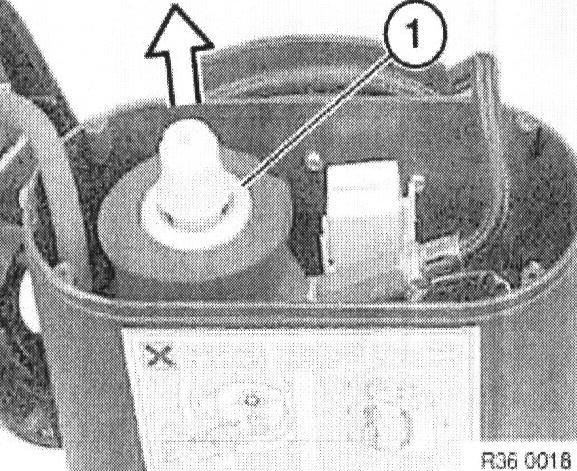

Remove seal film (1). Not necessary if M-Mobility system ha already been used.

Installation:
Replace seal film.

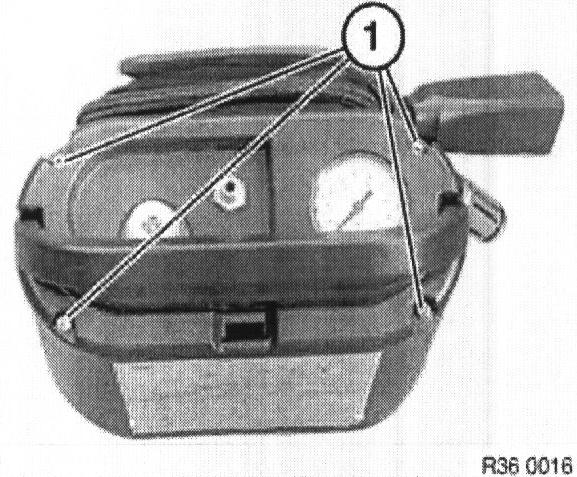

Release Torx threaded bolts (1) and raise cover as far as possible.

Installation:
Note Tightening Torque, refer to Specifications.

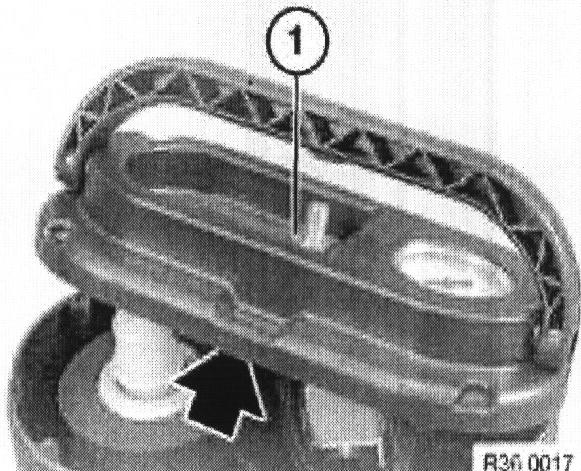

Release hexagon nut (1), grip nut firmly from underside.

Installation:
Note Tightening Torque, refer to Specifications.





Lift sealant bottle out.





Ensure that hose is laid without any kinks.

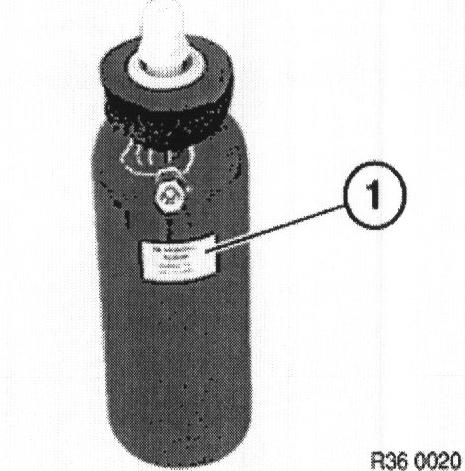

Note: Note the expiration date when installing a new sealant bottle
