Lower


Replacing one rubber mount in lower control arm (control arm removed)

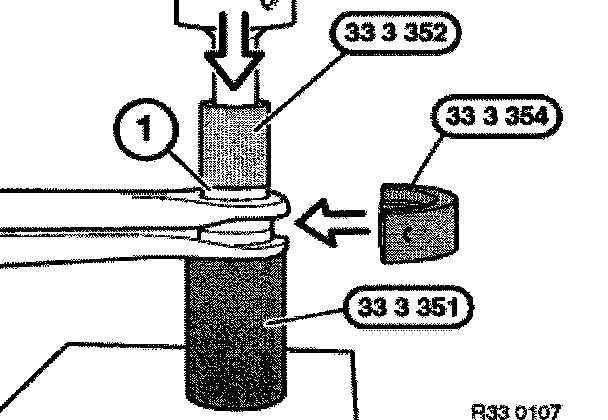

Press out rubber mount (1) with special tool 33 3 351/352/354.

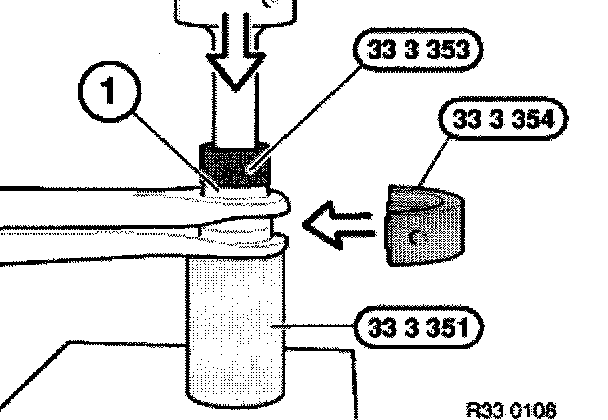

Press in new rubber mount (1) with special tool 33 3 351/353/354.
