Rear Suspension

Replacing One Ball Joint In The Semi-Trailing Arm, Rear (Semi-Trailing Arm Removed)

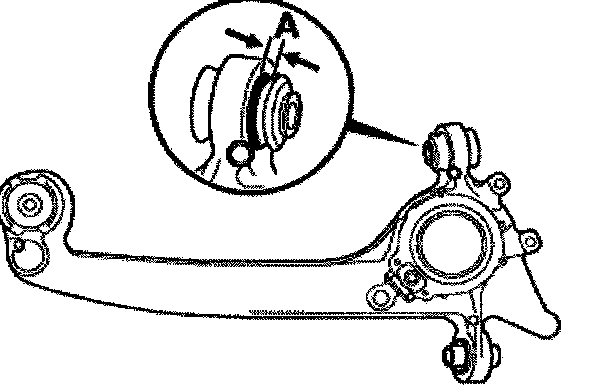

Measure and note protrusion (A) of old ball joint.

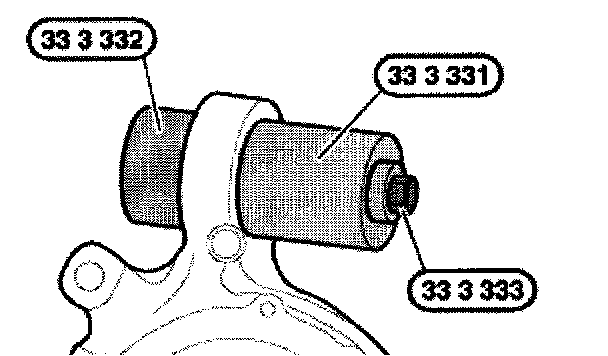

Pull out ball joint using special tools 33 3 33 1/332/333.

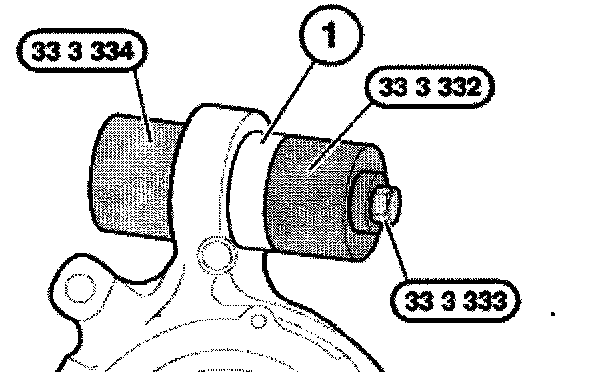

Pull in new ball joint (1) up to previously measured protrusion (A) using special tools 33 3 332/333/334.
