Removing and Installing Power Steering Gear

Removing and installing power steering gear

Caution:
After assembly, align front axle, refer to Alignment.
Removing front wheels, refer to Wheels.
Removing steering wheel.

Draw hydraulic fluid out of tank and do not re-use.

Installation:
Bleeding power steering unit, refer to Steering, Service and Repair.





Remove left and right track rod with special tool 32 2 070.

Installation:
Replace self-locking nuts.
Tightening torque, refer to Tie Rod End, Specifications.

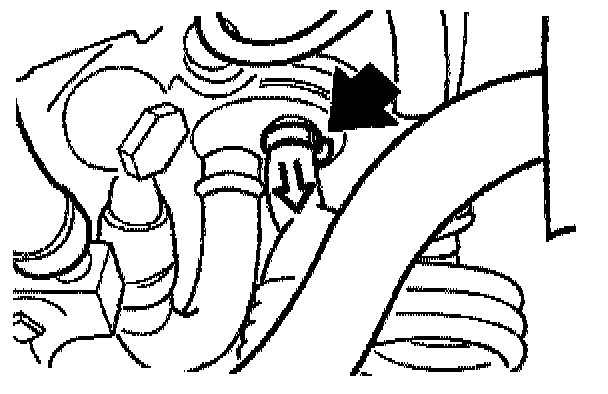

Disconnect hose on tank.

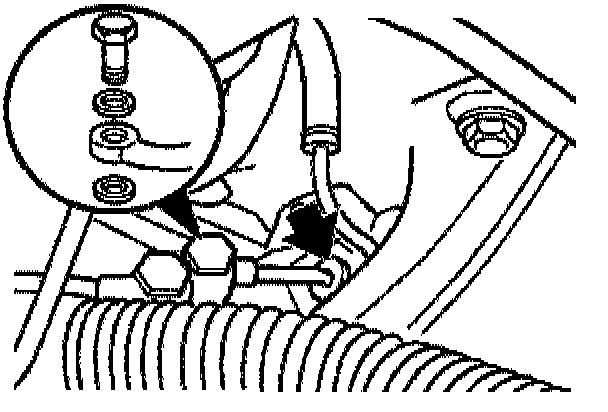

Unscrew hollow union bolt.

Installation:
Replace sealing rings.
Install line with rubber grommet in bracket.
Tightening torque, refer to Specifications.





Remove bolt and separate universal joint from steering gear.

Installation:
Note position of steering spindle, refer to Steering Shaft.

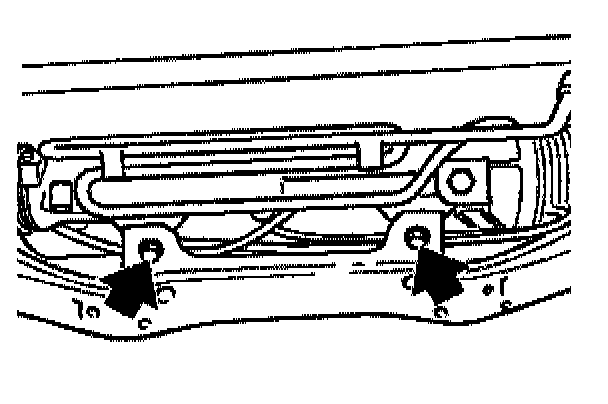

Unscrew bolts and take off steering gear in forward direction.

Installation:
Replace self-locking nuts.
Tightening torque, refer to Specifications.
