Power Steering Line/Hose: Service and Repair

Notes On Hydraulic Line With Fast-Release Coupling






Removal:

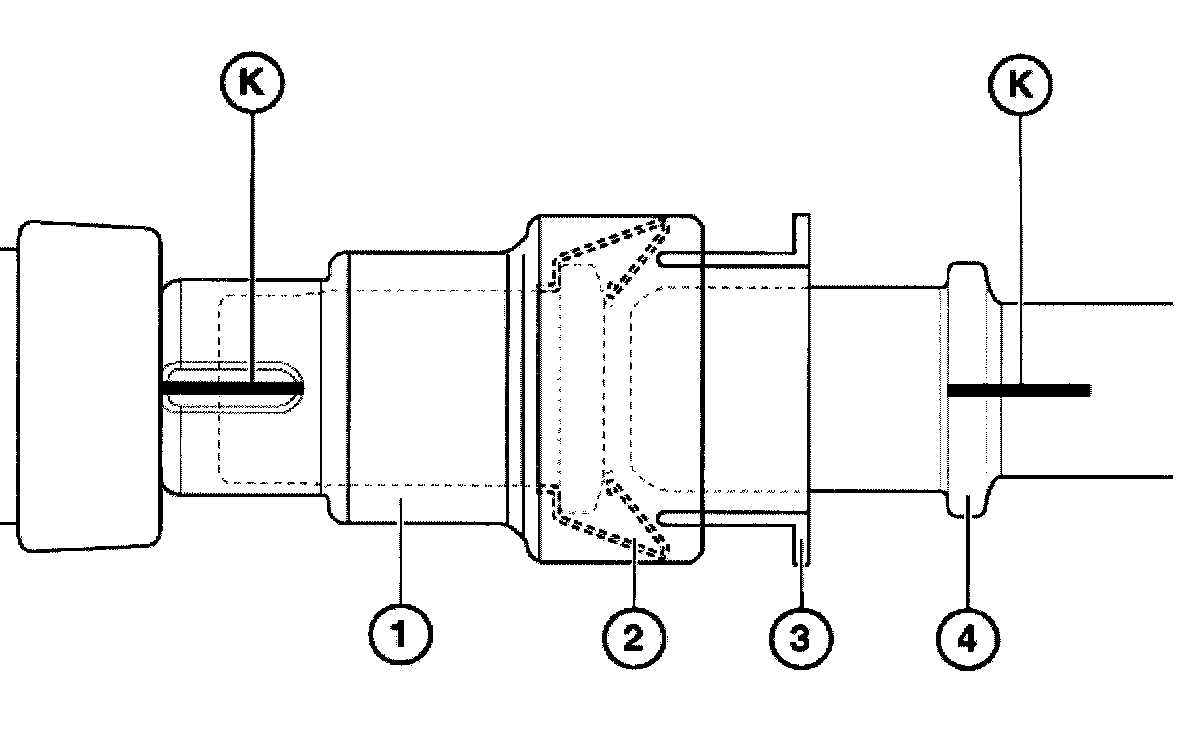

Push fast-release coupling (1) against pipe (4) (thereby relieving strain on spring (2)).
Press plastic ring (3) into fast-release coupling (1) and remove coupling (1).

Installation:
Markings (K) on coupling (1) and pipe (4) must be flush.
Push coupling (1) onto pipe (4) until a "click" can be heard.
To check that fast-release coupling (1) has been installed correctly, pull it back forcefully.
