Bosch 90/115/140 A

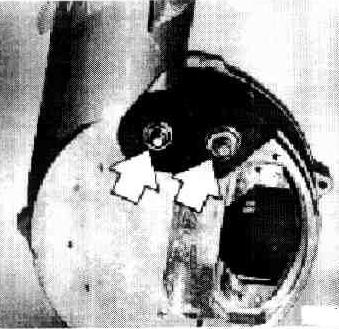

- Unscrew cover.




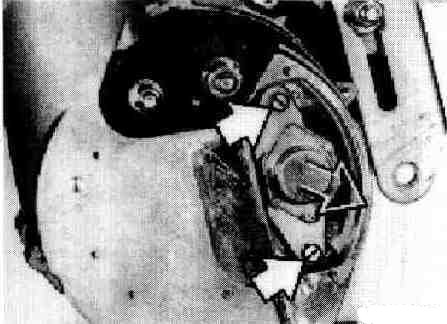

- Remove voltage regulator.




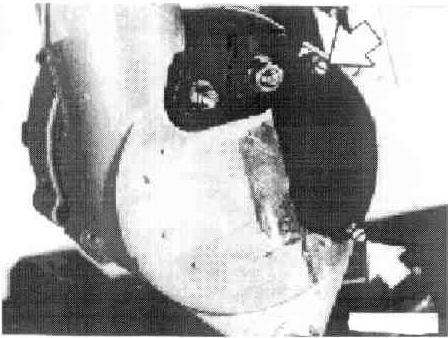

- Mark position of housing parts relative to each other.

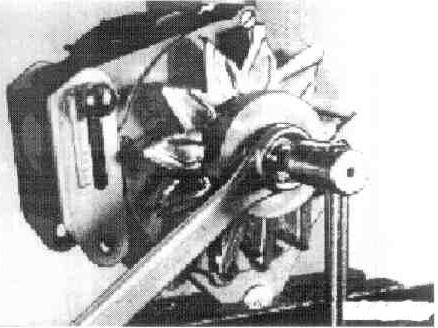

- Unscrew nut while counterholding with a socket wrench.





Installation:
Order:

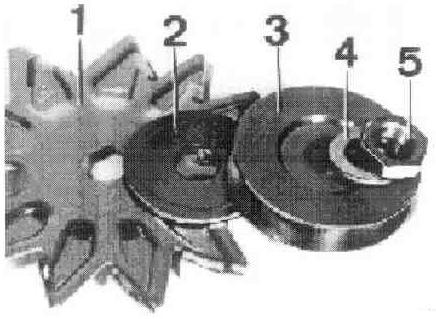

1. Fan wheel
2. Washer
3. Pulley
4. Washer
5. Nut

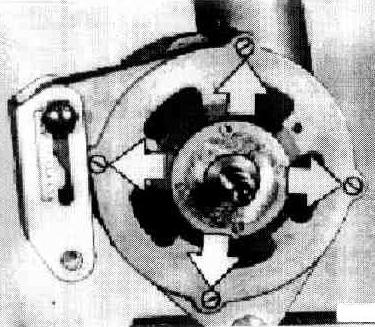

- Unscrew bolts - pull housing sections apart.




- Remove bearing caps.

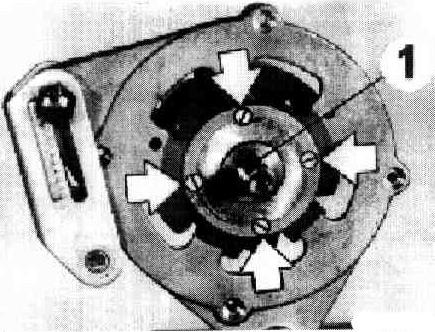

- Remove wedge (1).




- Unscrew nuts - take off plastic part.




- Unscrew bolls.




Installation:

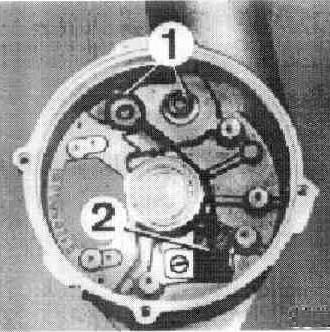

- Mount insulators (1) and capacitor (2).
- Measure capacity of capacitor - replace capacitor when measured value deviates from specified value by 50 %.

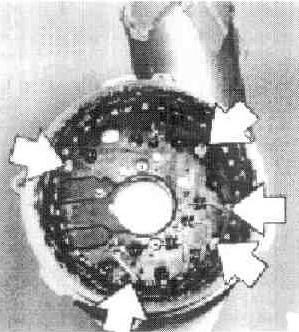

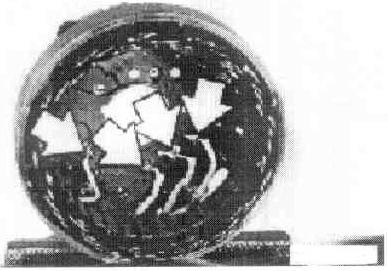

- Mark and unsolder wires for diode plate.
