Bosch Alternator

Replacing Diode Plate

NOTE: Alternator removed and disassembled







CAUTION: Excessive heat from soldering iron will destroy diodes.

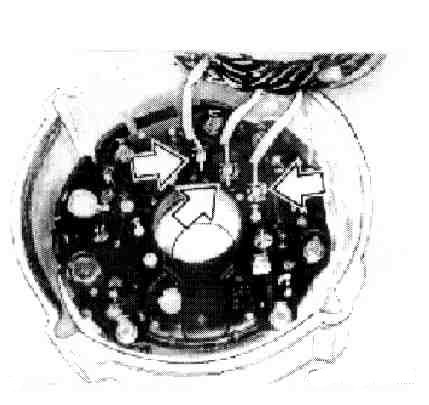

- Unsolder stator winding on diode plate.

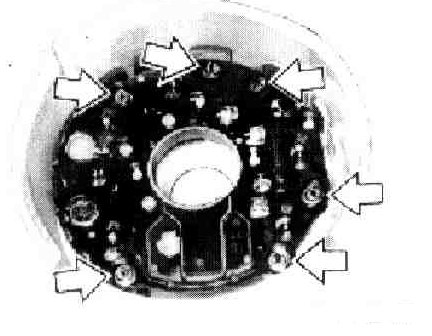

- Unscrew bolts.

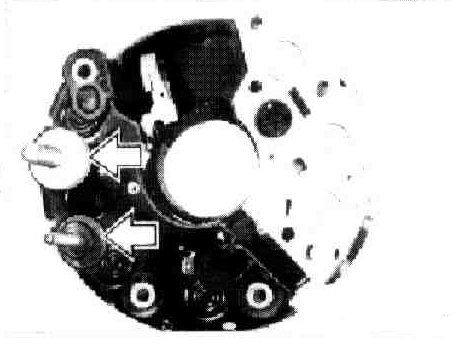

- Remove diode plate.




Installation:
- Check condition of insulating sleeves and insulators.
