Alternator Pulley / Clutch: Service and Repair

Replacing Generator Belt Pulley

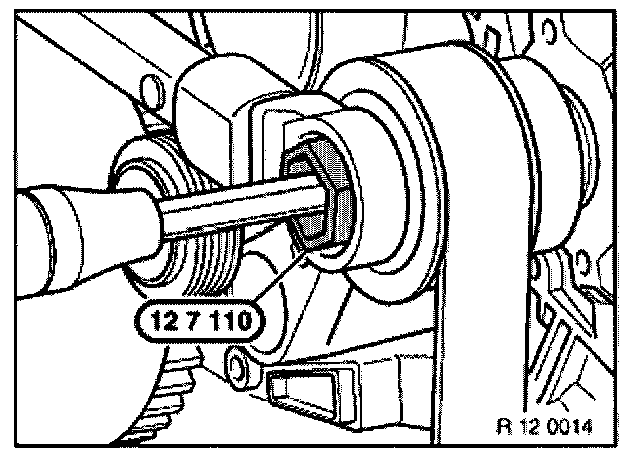

- Unfasten screw using Special Tool 12 7 110.
- Hold shaft tight using a hexagon socket wrench.
- Torque to specification.
