Home >> BMW >> 1999 >> M3 Convertible (E36) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Service and Repair >> Replacing Switch For Headlight-Range Adjustment

Replacing Switch For Headlight-Range Adjustment

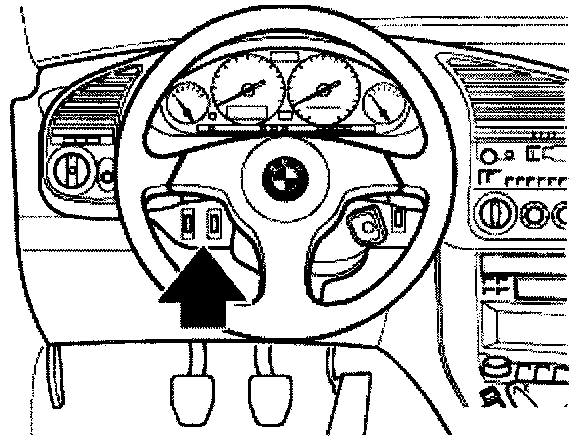

- Remove instrument panelling at bottom left.

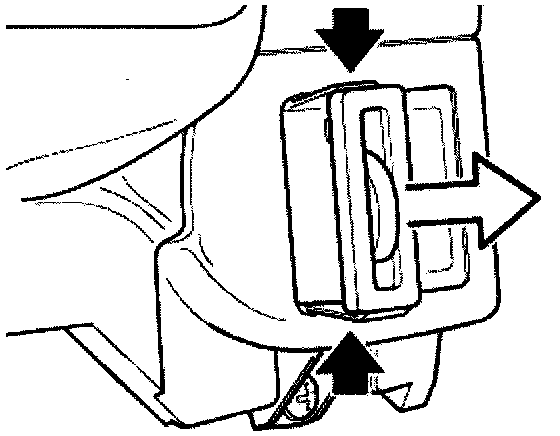

- Compress retainers and remove switch forward and out of panelling.
- Disconnect connector.
