Replacing Light Switch

- Remove instrument panelling at bottom left.




- Unscrew bolts.




- Pull bottom trim panel to the side out of the clips.

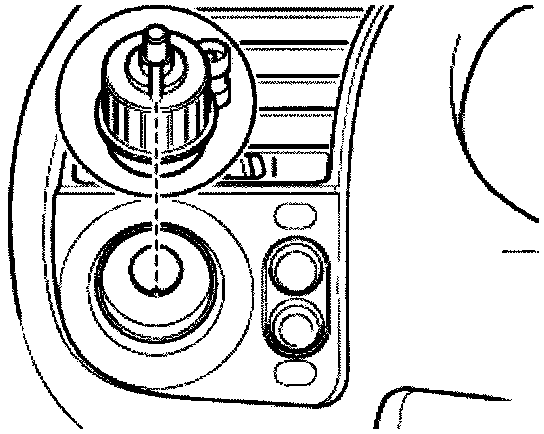

- Wrap adhesive tape around light-switch rotary grip and pull off.

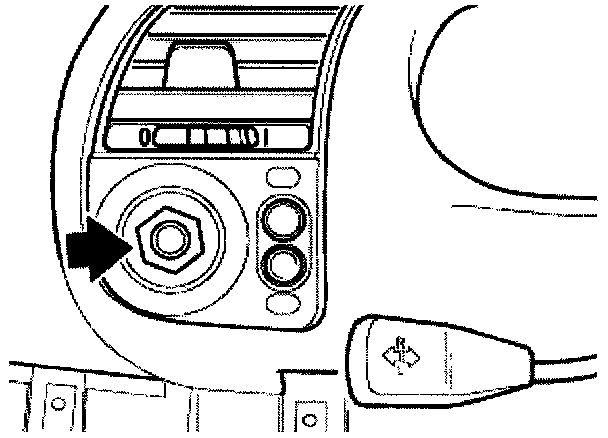

- Remove nuts.

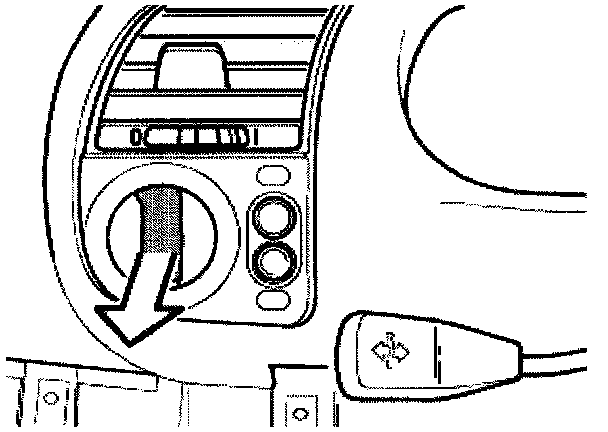

- Pull out switch towards rear of vehicle.
- Disconnect plug.




Installation:
- Groove of switch must lock into retaining lug of panel.
