Heater Core Temperature Sensor / Switch: Service and Repair

Replacing Temperature Sensor For Heater

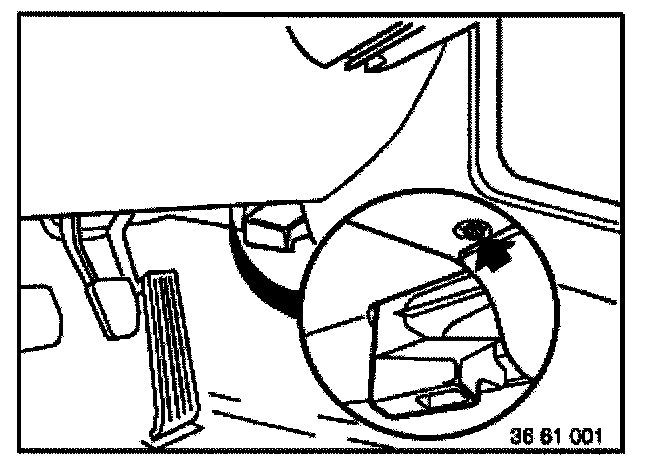

Remove screws of lower trim panel.

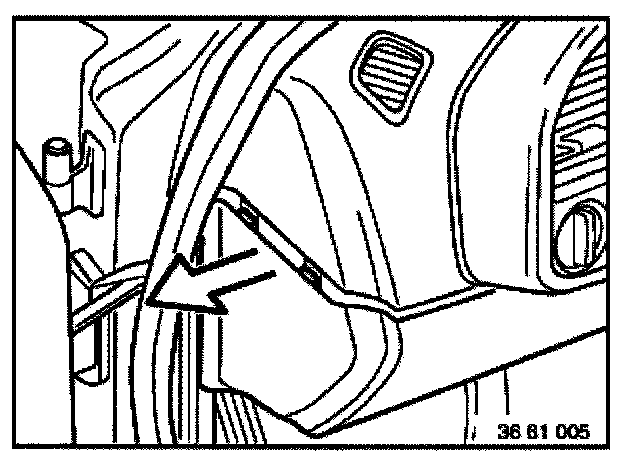

Pull bottom trim panel to the side out of the clips.

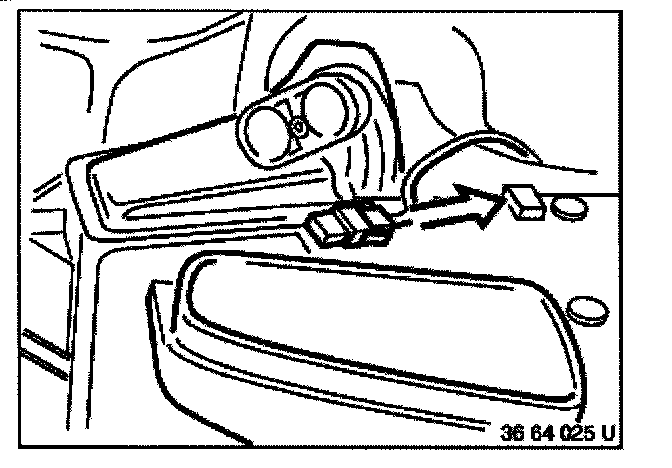

Disconnect connector.







Pull out temperature sensor.
