Oil Pressure Sender: Service and Repair

Replacing oil-pressure switch

Applies to all engines:
Release oil-filter cover so that oil from oil filter returns to oil pan.

Installation:

Oil Pressure, Oil Temperature, Oil Level Display:

Check oil level.

Disconnect connector.

M40:
Disconnect intake hose from suction-filter housing intake fitting

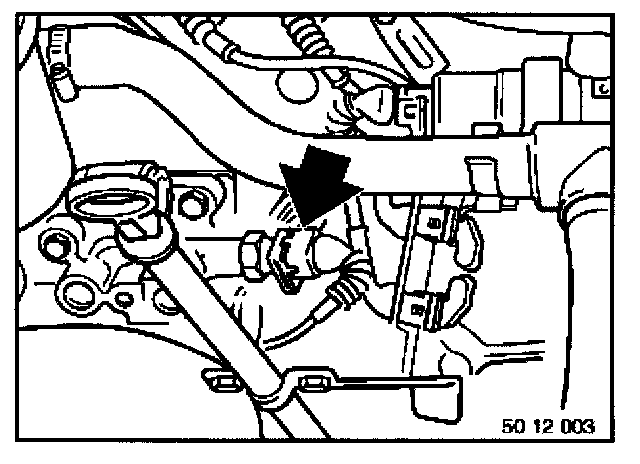

Unscrew switch.

Installation:

Oil Pressure, Oil Temperature, Oil Level Display:

M50:
Remove complete suction filter.
Disconnect air hose for alternator.
Unscrew switch.

Installation:

Oil Pressure, Oil Temperature, Oil Level Display:

S50:

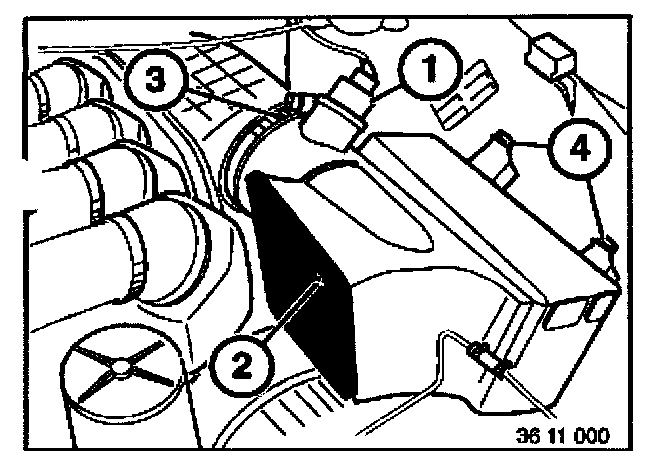

Removing suction-filter housing.
Disconnect plug-in connection (1).
Unfasten screw (2) on heat-protection plate.
Loosen hose clip (3) from intake hose.
Loosen screws (4).
Lift suction-filter housing sightly.

Pull off intake neck.
Pull off air hose (1).
Remove suction-filter housing.
Remove heat-protection plate.

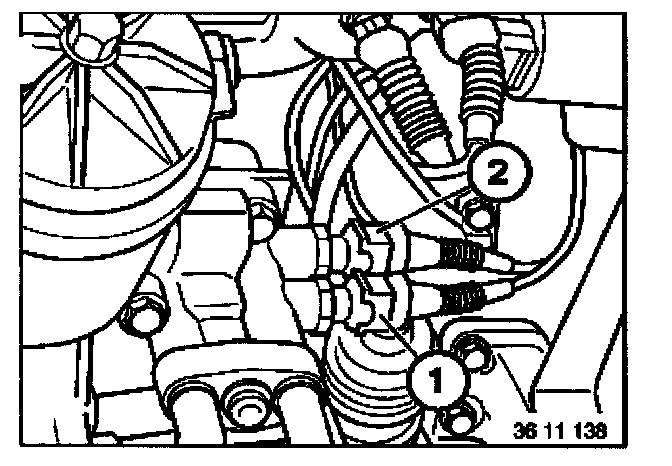

Disconnect plug-in connection (1).
Unscrew and remove oil-pressure switch.

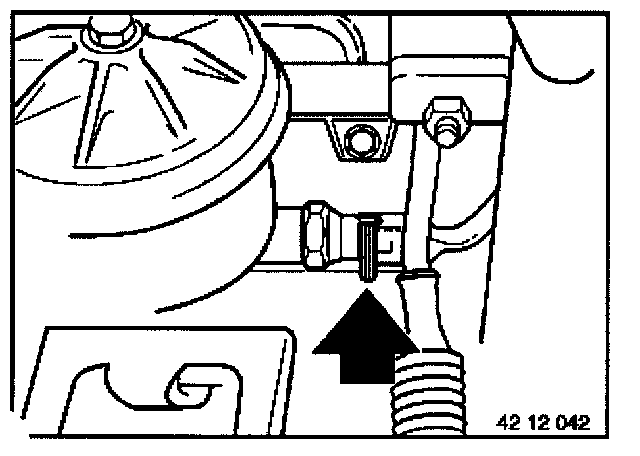

NOTE: Oil-pressure switch on oil-filter base.

Installation:

Oil Pressure, Oil Temperature, Oil Level Display:

M 43:
Remove alternator,

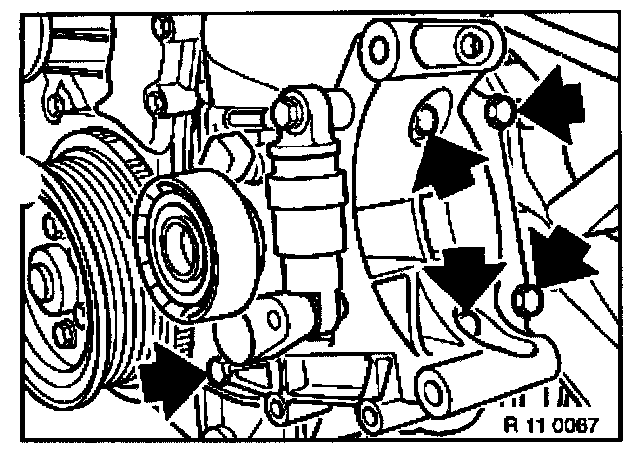

Remove mounting block for alternator.

Disconnect connector.
Unscrew and remove oil-pressure switch.

Installation:

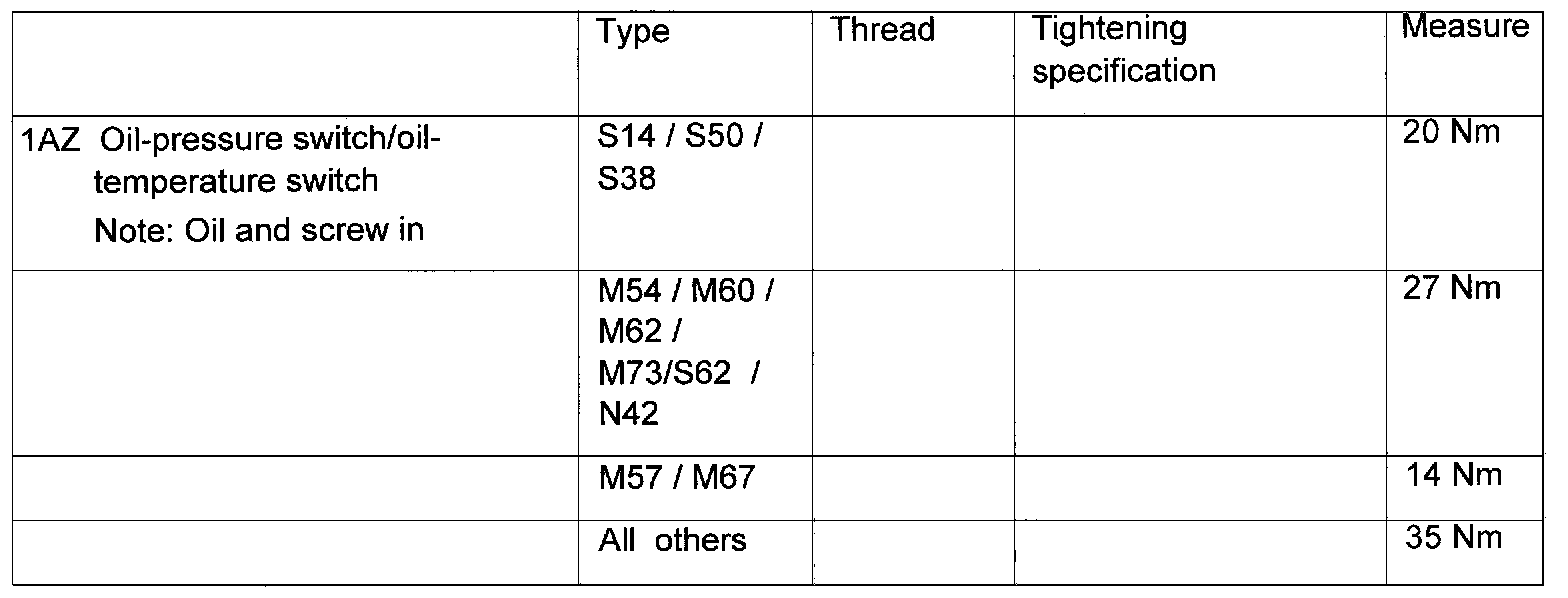

Tightening torque 61 31 2AZ.
